Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
71
4.2.6 Product group X-300M PoE
4.2.6.1 SCALANCE X308-2M PoE product characteristics
Possible attachments
The SCALANCE X308-2M PoE is a partially modular device and has eight ports.
● Four fixed ports in the base device:
Four PoE-compliant ports (RJ-45 jacks with securing collars) for connection of end
devices or other network segments.
● Four modular ports via module slots:
Two media modules (optical or electrical as required) can be combined using slots (S1-
S2) depending on the application. End devices and other network segments are
connected according to the media modules being used.
Note
Whe
n shipped, the slots for the media modules have a dummy cover fitted.

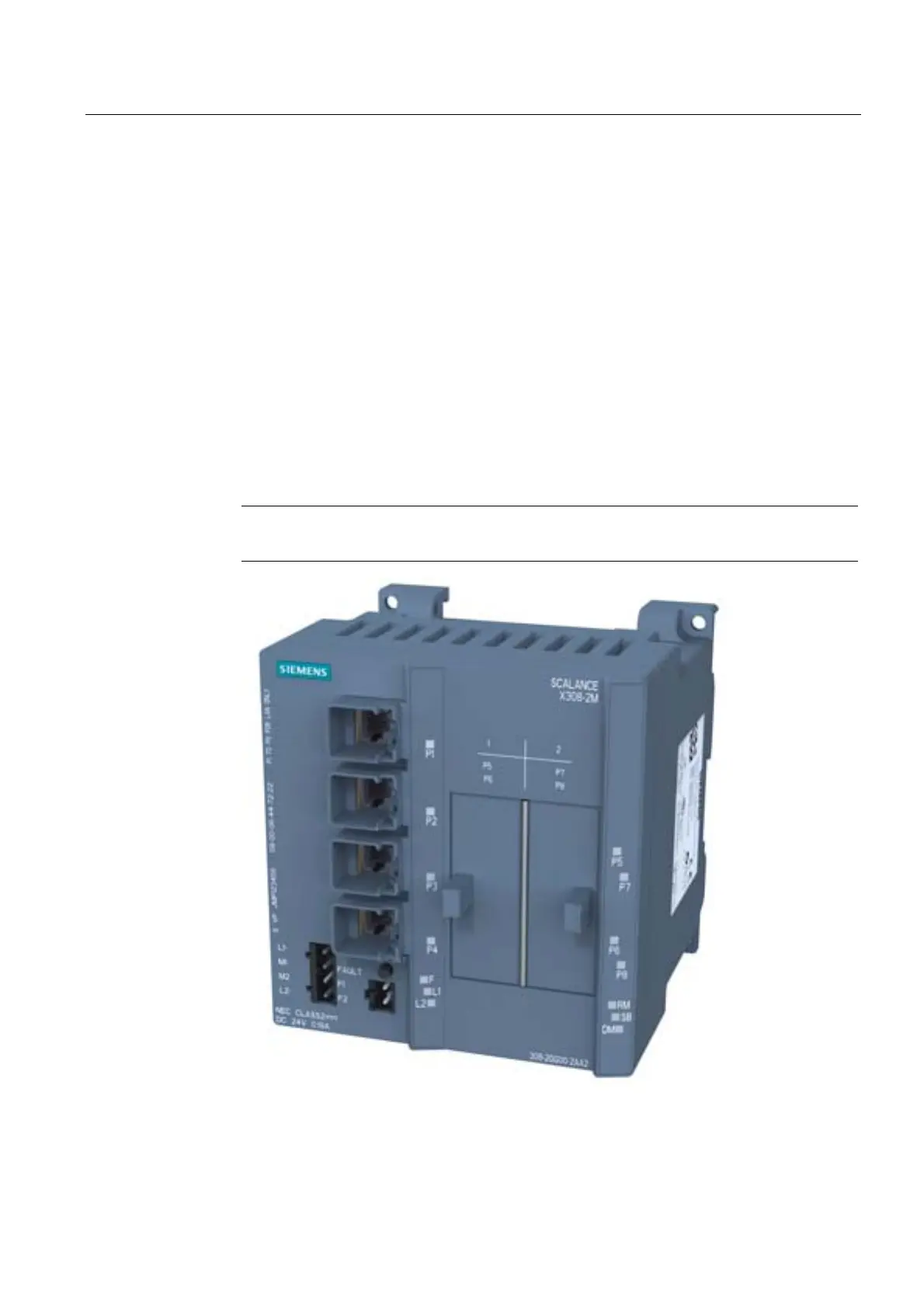

Figure 4-22 SCALANCE X308-2M PoE with dummy covers
