Siemens SCALANCE X308-2M User Manual

Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
73
4.2.7 Product group XR-300M PoE
4.2.7.1 SCALANCE XR324-4M PoE product characteristics
Possible attachments
The SCALANCE XR324-4M PoE is a partially modular device and has 24 ports.
● 16 fixed ports on the base device:
– Eight PoE-compliant gigabit ports (RJ-45 jacks with securing collars) for connection of
end devices or other network segments.
– Eight gigabit ports (RJ-45 jacks with securing collars) for connection of end devices or
other network segments.
● Eight modular ports via module slots:
Four modules can be combined using slots (S1-S4) depending on the application. End
devices and other network segments are connected according to the modules being
used.

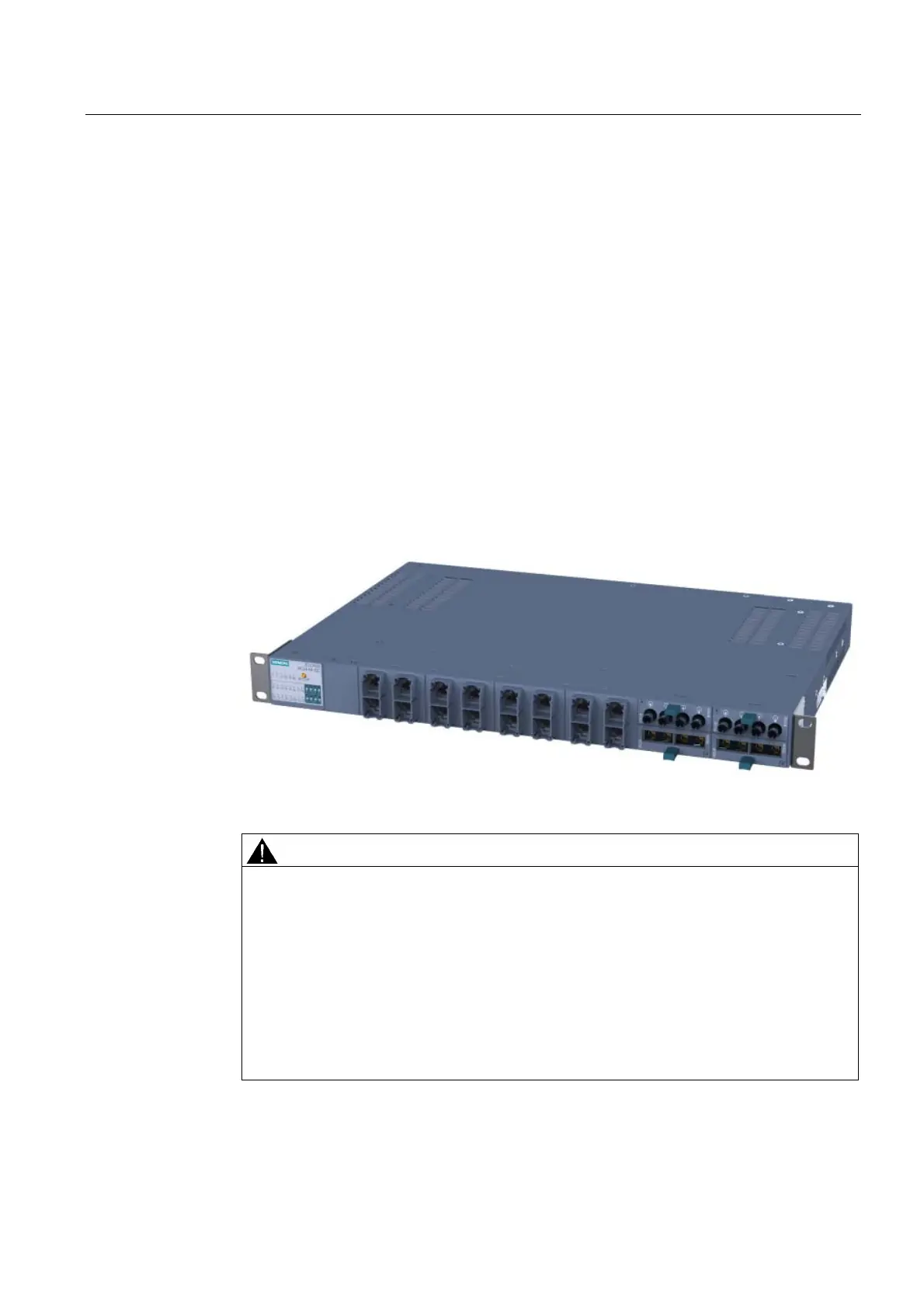

Figure 4-24 XR324-4M PoE
CAUTION
Use only approved modules in the slots
Possible module connection types:
• 2 x RJ-45
• 2 x FX100
• 2 x FX1000
• or 2 x SFP slots
With FX, single mode fibers or multimode fibers are possible.
Connecting end devices or other network segments does not depend on the module
slots.
