Accessories
4.5 Manual operators
3VA molded case circuit breakers with IEC certificate
312 Manual, 03/2019, A5E03603177010-03

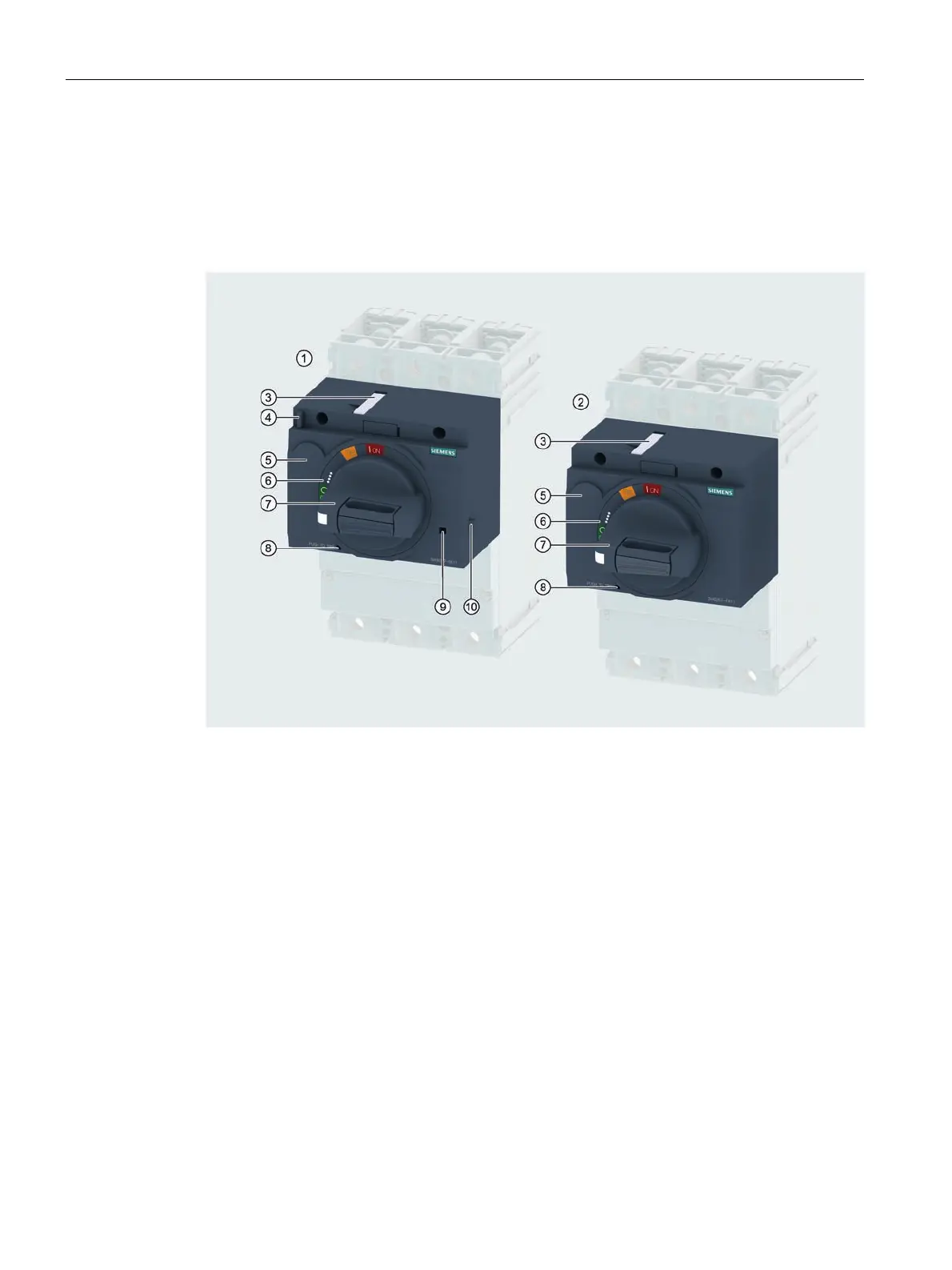

Front mounted rotary operator
The front mounted rotary operator is available in two versions:
● With door interlock
● Without door interlock
Front mounted rotary operator with door
interlock
Indication of the breaker status (on, off, trip)
(see below)
Front mounted rotary operator without door
interlock
Handle with mechanism for up to 3 padlocks
Device for up to 3 padlocks
Trip unit button <PUSH TO TRIP>
Door contact (door interlock element)
Defeat function (door interlock element)
Cylinder lock device
Door interlock
