Technical specifications

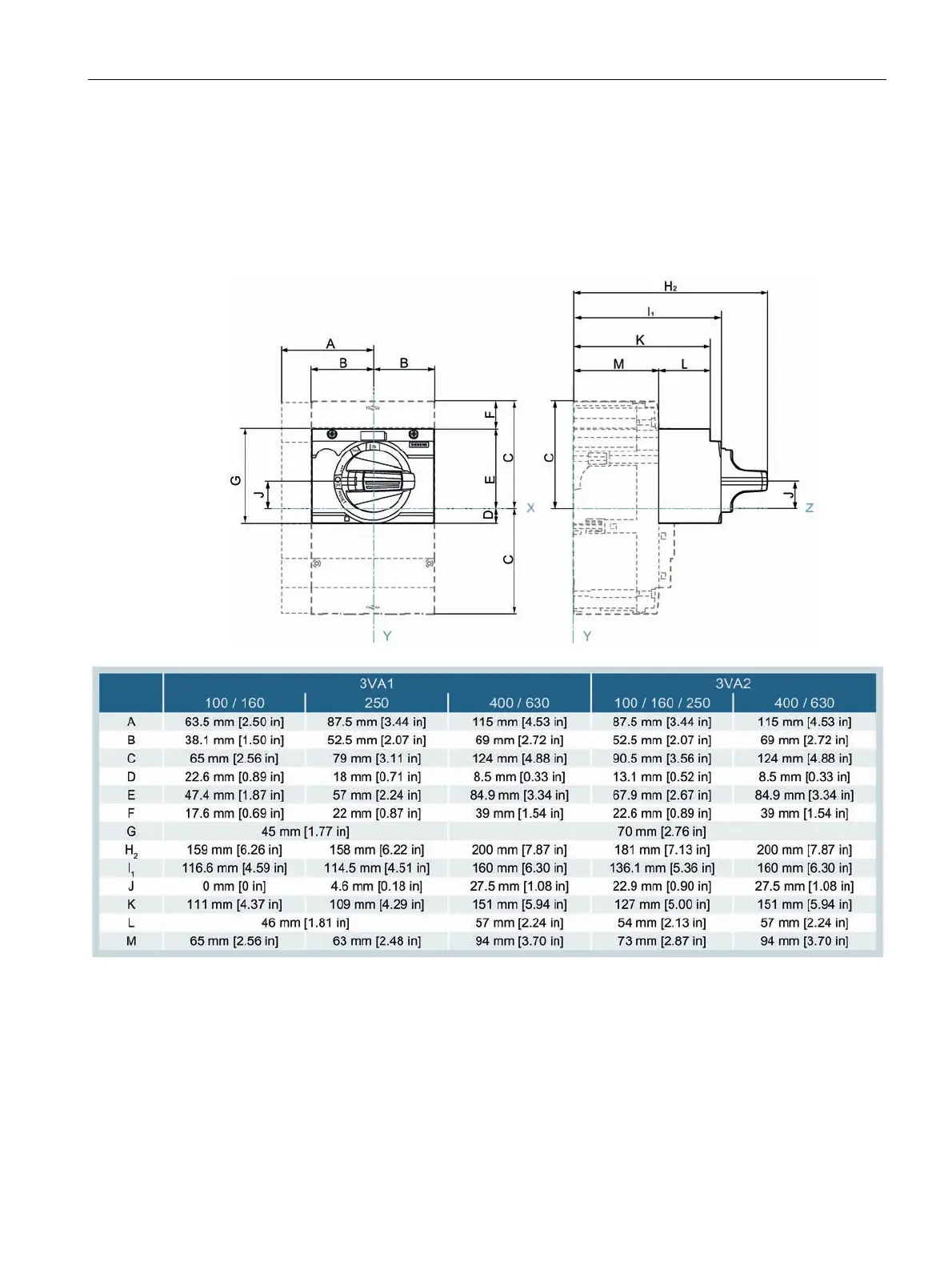

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

587

6.2.2.3

Manual operators

Front mounted rotary operator

Front mounted rotary operator for 3VA up to 630 A
