Accessories

4.8 Residual current devices

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

415

4.8.2.2

Loadside residual current devices Basic RCD320 and Basic RCD520

Loadside residual current devices are also available to order for 3VA1 molded case circuit

breakers.

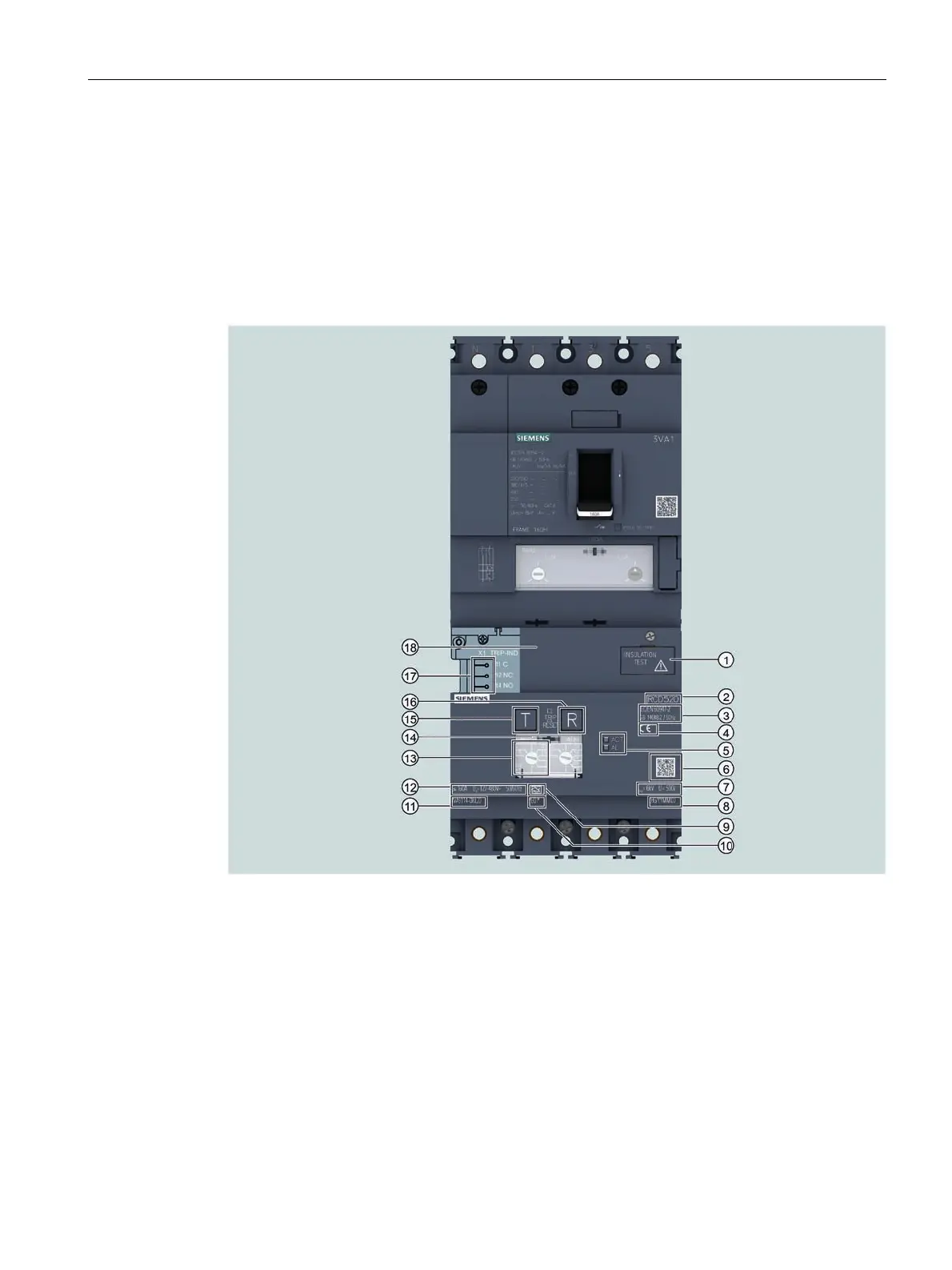

Front view of Basic RCD320 and Basic RCD520

RCD320

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

Circuit breaker

Type designation

Standard

Approvals

LED: ACTIVE and pre-alarm

Knowledge Manager

Rated insulation voltage and rated impulse

strength

Location and date of manufacture

Device type

Product version

⑪

Article number

⑫

Maximum rated operational current, rated

operational voltage and frequency

⑬

Setting button for response current

⑭

Transparent protective cover over setting

buttons

⑮

Test button (test device)

⑯

RESET button / tripped display

⑰

Auxiliary contacts

⑱

Contact hazard protective cover over main

current paths with sealing option
