Accessories
4.11 Test devices
3VA molded case circuit breakers with IEC certificate
Manual, 03/2019, A5E03603177010-03
523

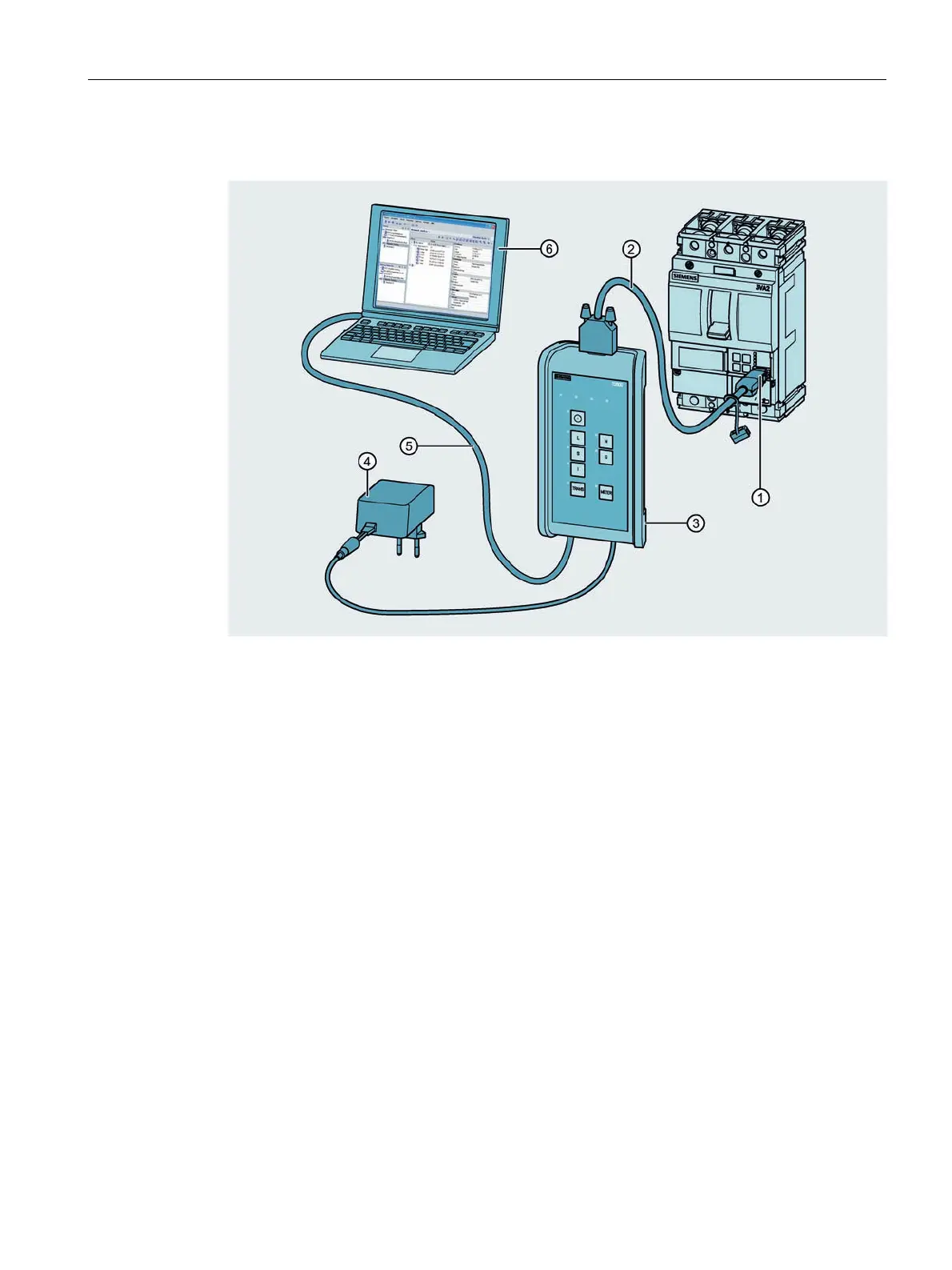

Connections between ETU - TD500 - PC
Plug-in connector for insertion in the test
socket on the ETU
Power supply unit
TD500-to-ETU connecting cable
TD500 test device
PC with powerconfig installed
Parameterizing using the powerconfig software
In addition to test functions, the powerconfig software package also provides tools for
assigning parameters to ETU 5-series and 8-series.
These tools allow you to:
● assign parameters to ETU 5-series and 8-series
● store parameter settings for ETU 5-series and 8-series in the powerconfig project and
print them out
