Technical specifications

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

621

6.2.2.9

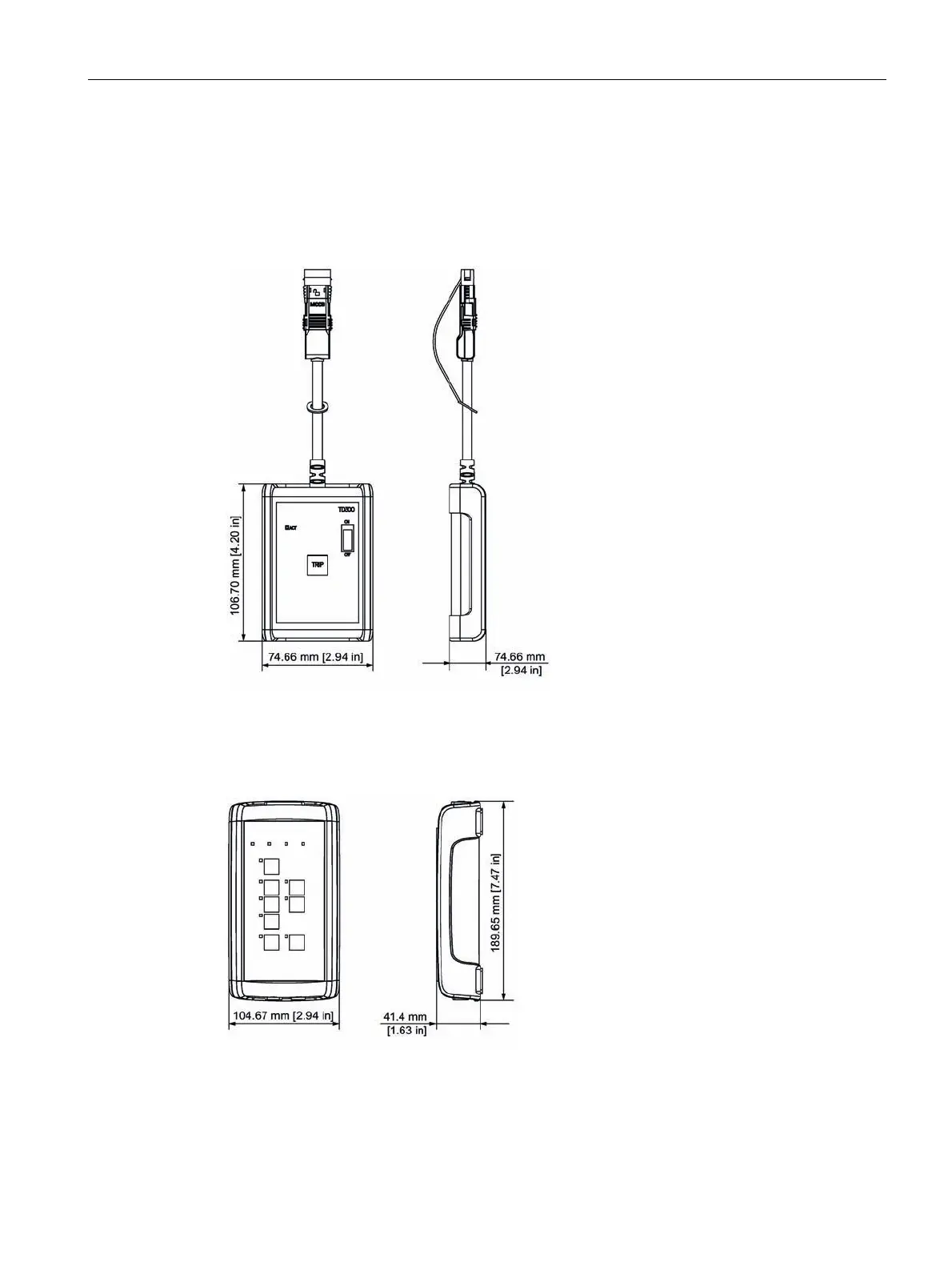

Test devices

TD300 activation and trip box

You can find more information in chapter Technical specifications of TD300 (Page 512).

TD500 test device

You can find more information in chapter Technical specifications of TD500 (Page 524).
