Accessories

4.5 Manual operators

3VA molded case circuit breakers with IEC certificate

322 Manual, 03/2019, A5E03603177010-03

4.5.4

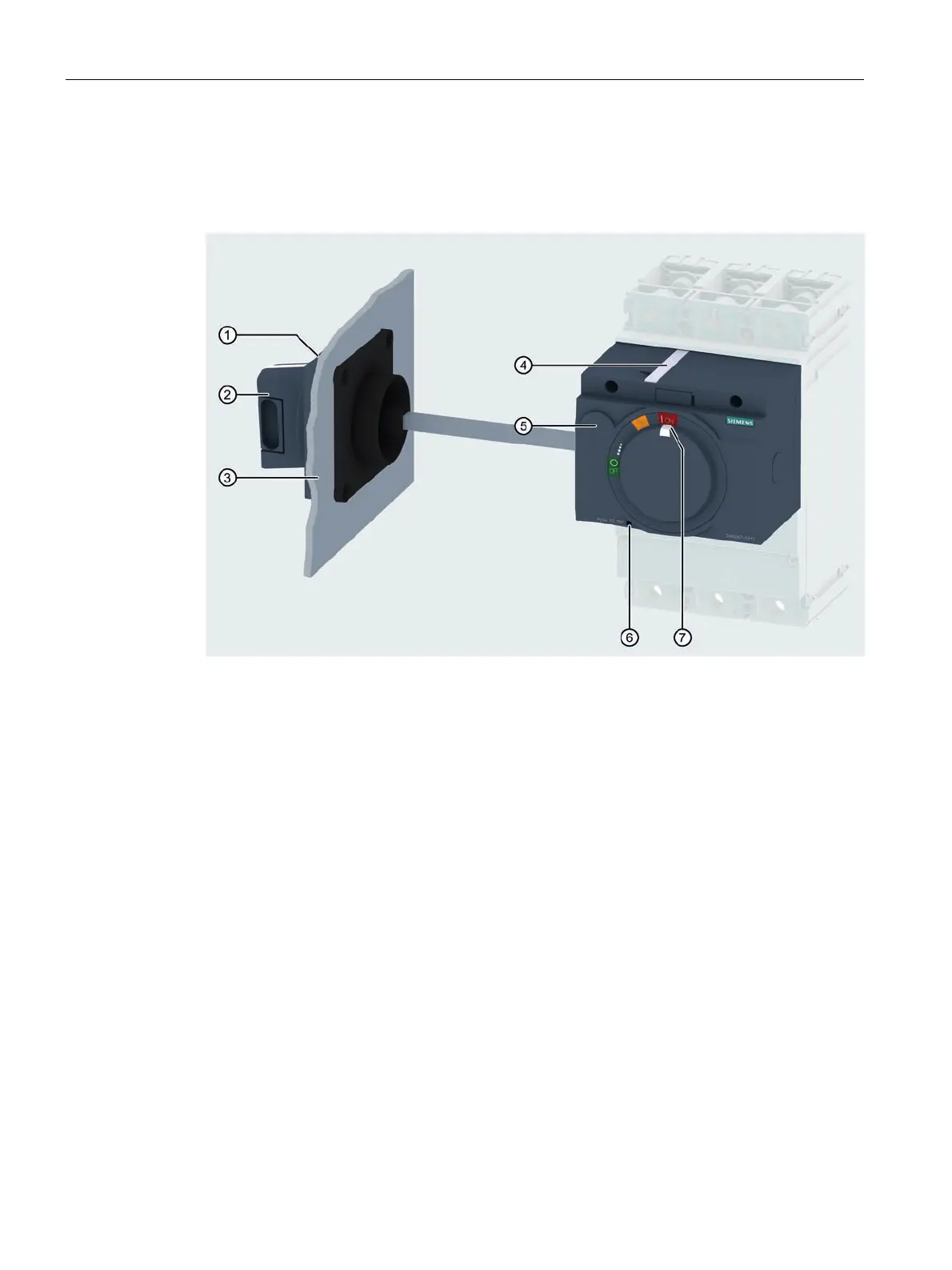

Side wall mounted rotary operator

The side wall mounted rotary operator allows the molded case circuit breaker to be operated

through the right-hand or left-hand side wall of the cubicle.

①

Side wall mounted rotary operator

②

Handle with device for up to 3 padlocks

③

Side wall of cubicle

④

Device for up to 3 padlocks

⑤

Device for cylinder lock

⑥

Trip unit button <PUSH TO TRIP>

⑦

Switching position indicator ON, TRIP, mounting position, OFF, RESET

For mounting position, see chapter Front mounted rotary operator (Page 312)
