Description
2.2 Ergonomic design
3VA molded case circuit breakers with IEC certificate
Manual, 03/2019, A5E03603177010-03
39

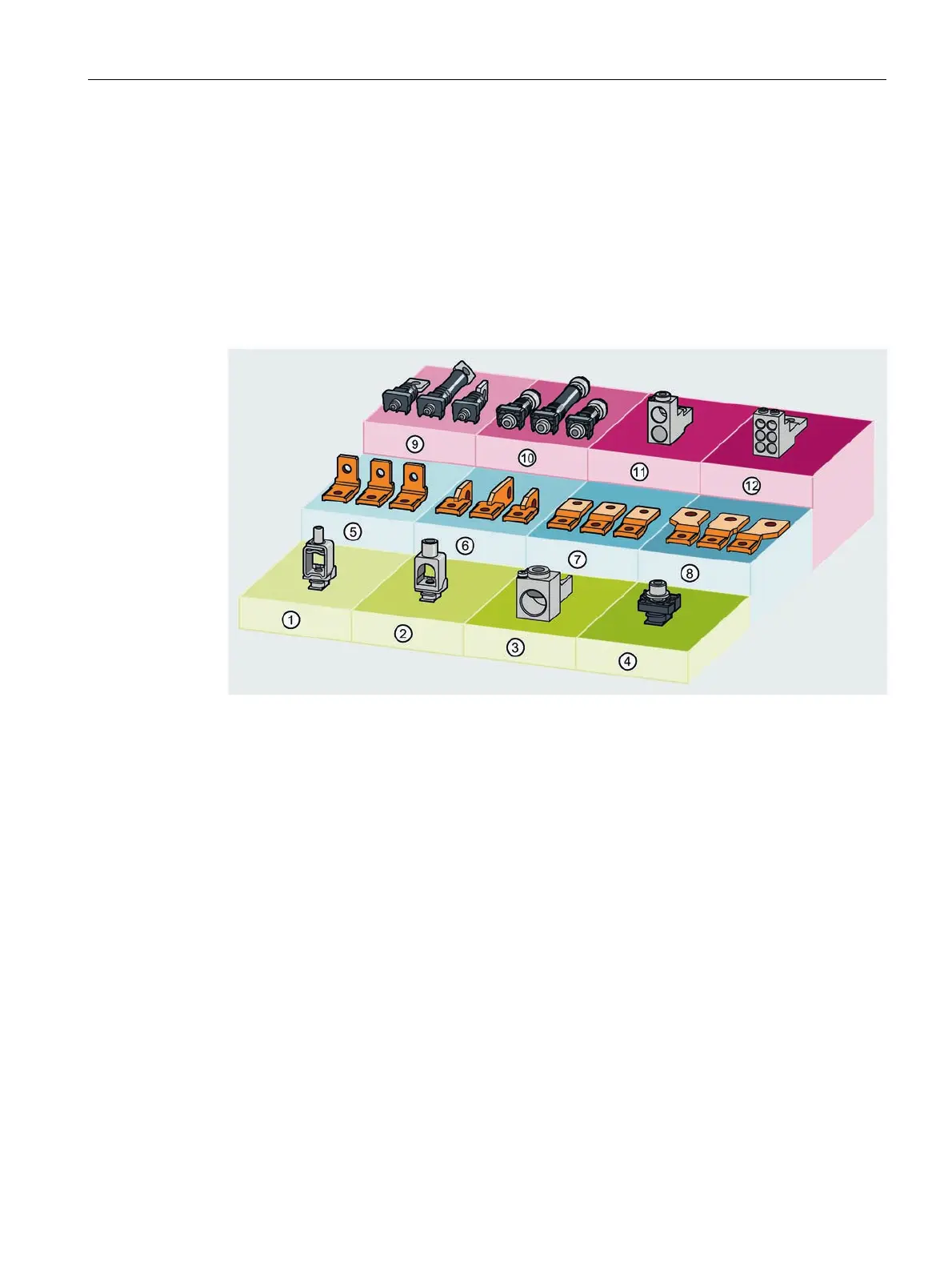

A large selection of connection technology is available for the 3VA range of molded case
circuit breakers.
The supported cable cross-sections are based on the size of the molded case circuit breaker
and the cable terminals used. The terminals are fitted either internally or externally to the
molded case circuit breaker.
With it you can implement various front and rear main conductor connections for the molded
case circuit breakers in all types of installation (fixed-mounted, plug-in and draw-out).
Front bus connectors extended
Front bus connectors offset
Wire connector, large
Rear connection stud flat
Nut keeper kit
Rear connection stud round
Nut keeper kit, right-angled
Wire connector for 2 cables
Bus connectors edgewise
Distribution wire connector for 6 cables
