Technical specifications

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

572 Manual, 03/2019, A5E03603177010-03

6.2.2

Dimensions of accessories

6.2.2.1

Connection technology

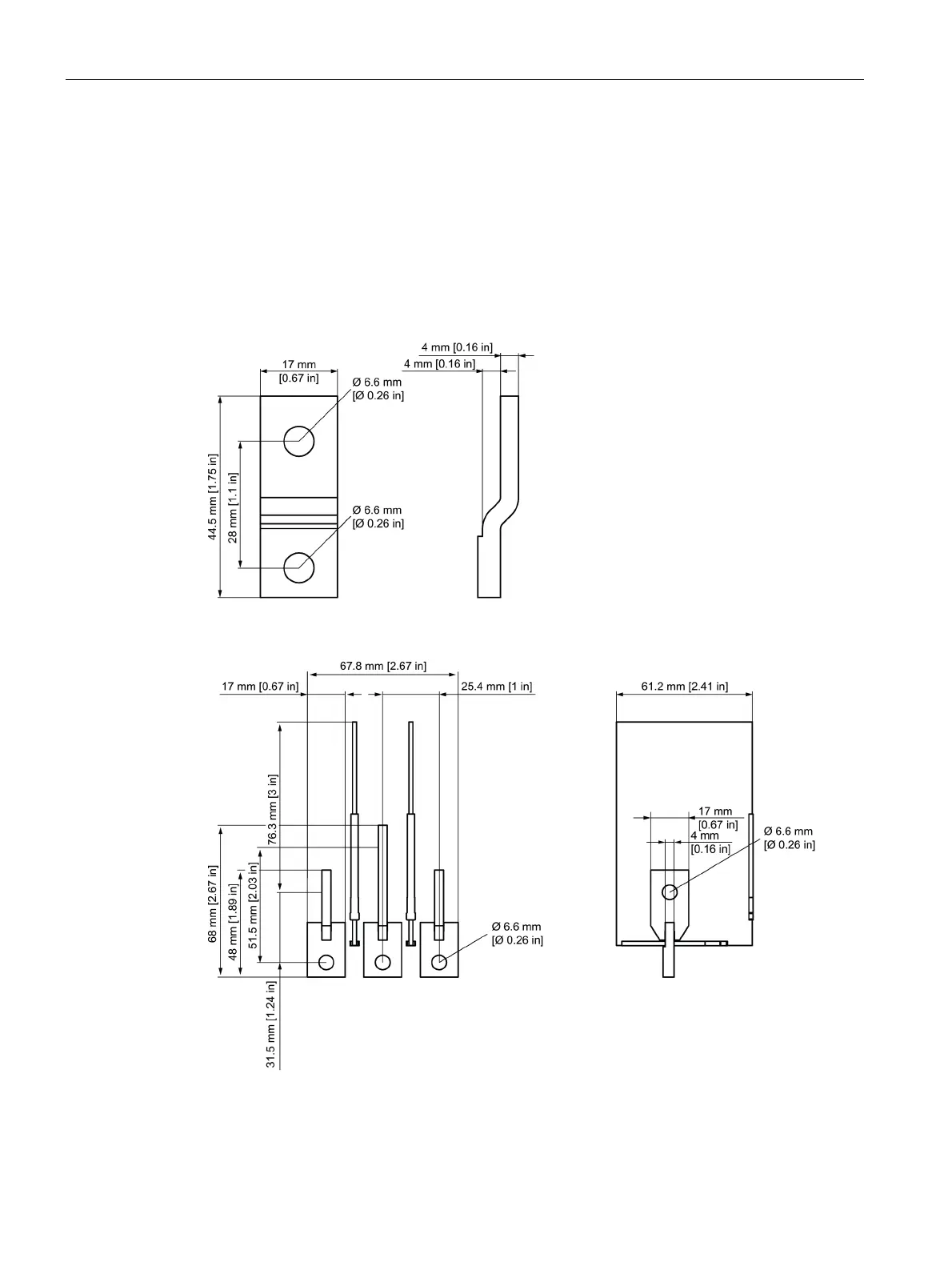

Bus connectors extended or offset for 3VA up to 630 A

Extension

Rotated extension
