Accessories
4.5 Manual operators
3VA molded case circuit breakers with IEC certificate
326 Manual, 03/2019, A5E03603177010-03
Locking and interlocking by the rotary operator
The following manual operators can be locked and interlocked by the rotary operator:
● Front mounted rotary operator
● Rotary operator with shaft stub
● Door mounted rotary operator
● Side wall mounted rotary operator
The manual operators can be locked by up to three padlocks with a shackle diameter of
between 5 and 8 mm or by means of cylinder locks (type Ronis). Manual operators can be
interlocked only by means of cylinder locks (type Ronis).
In addition, the door mounted rotary operator and side wall mounted rotary operator at the
masking plate in the panel door or side panel can also be locked using cylinder locks (type
Kaba).
Padlocks and cylinder locks are not included in the scope of supply of manual rotary
operators.
All rotary operators are equipped with a padlock locking unit. This locking unit is simply
pulled out of the rotary operator.

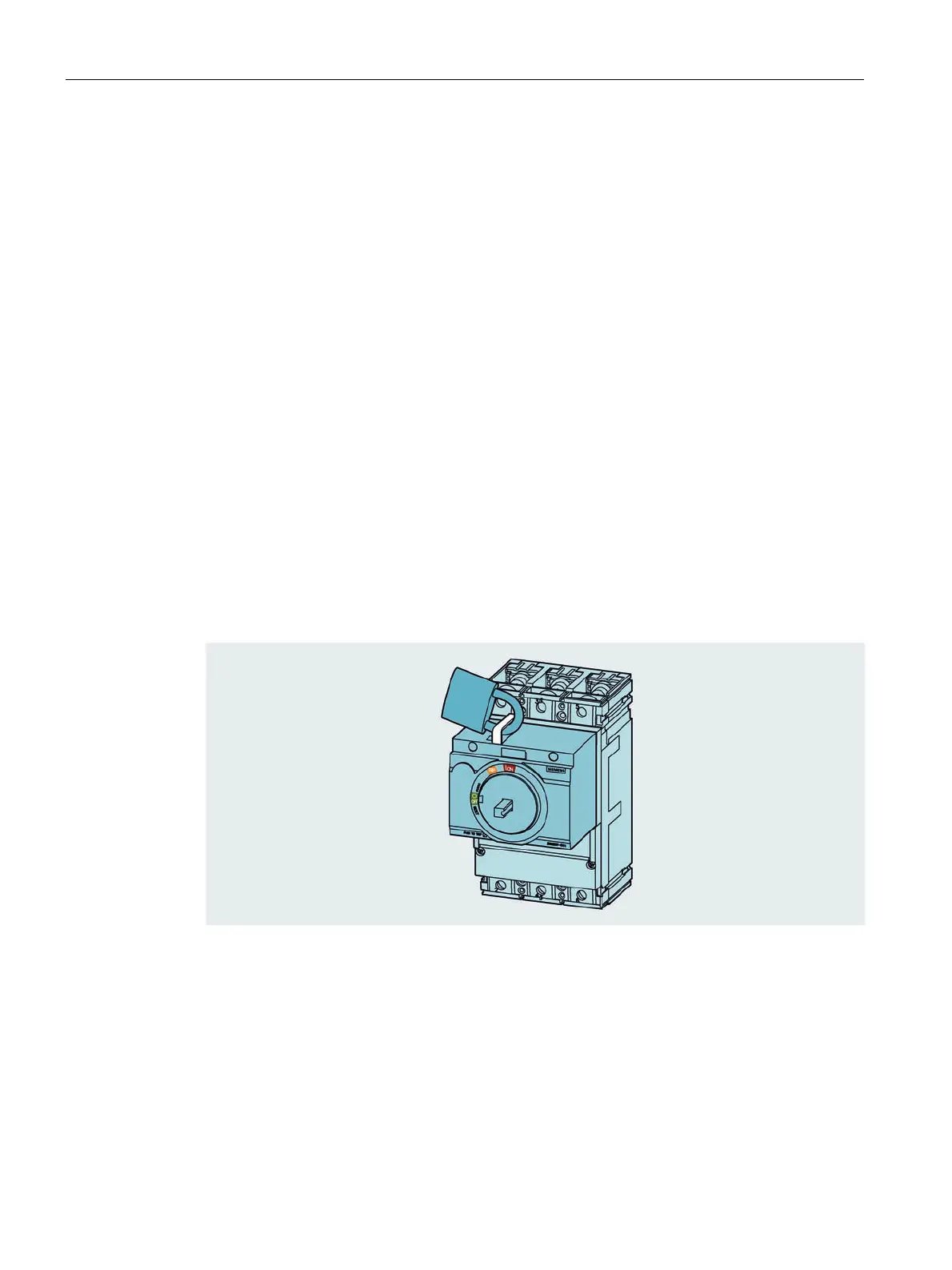

Example of rotary operator with shaft stub:
Lockable switching positions:
● Position OFF (O)
