3VA molded case circuit breakers with IEC certificate
Manual, 03/2019, A5E03603177010-03
489
The DSP800 display is designed for mounting in the panel door and can be optionally
connected to the Ethernet (Modbus TCP) interface integrated in the COM800 / COM100
breaker data server. The DSP800 display shows the data of the breaker data server and
thus the data of up to eight connected 3VA molded case circuit breakers.
The start page of the DSP800 displays the status and maximum current of all 3VAs. All the
detailed information about individual molded case circuit breakers can be selected via the
efficiently structured menu. This includes
● Measured values of ETU 5-series and 8-series
● ETU setting parameters
● Status
● Diagnostics
With firmware version 2.07, up to three 3WL10 / 3VA27 circuit breakers can also be shown
on the DSP800 display. It must be noted that a maximum of 8 breakers can be displayed.

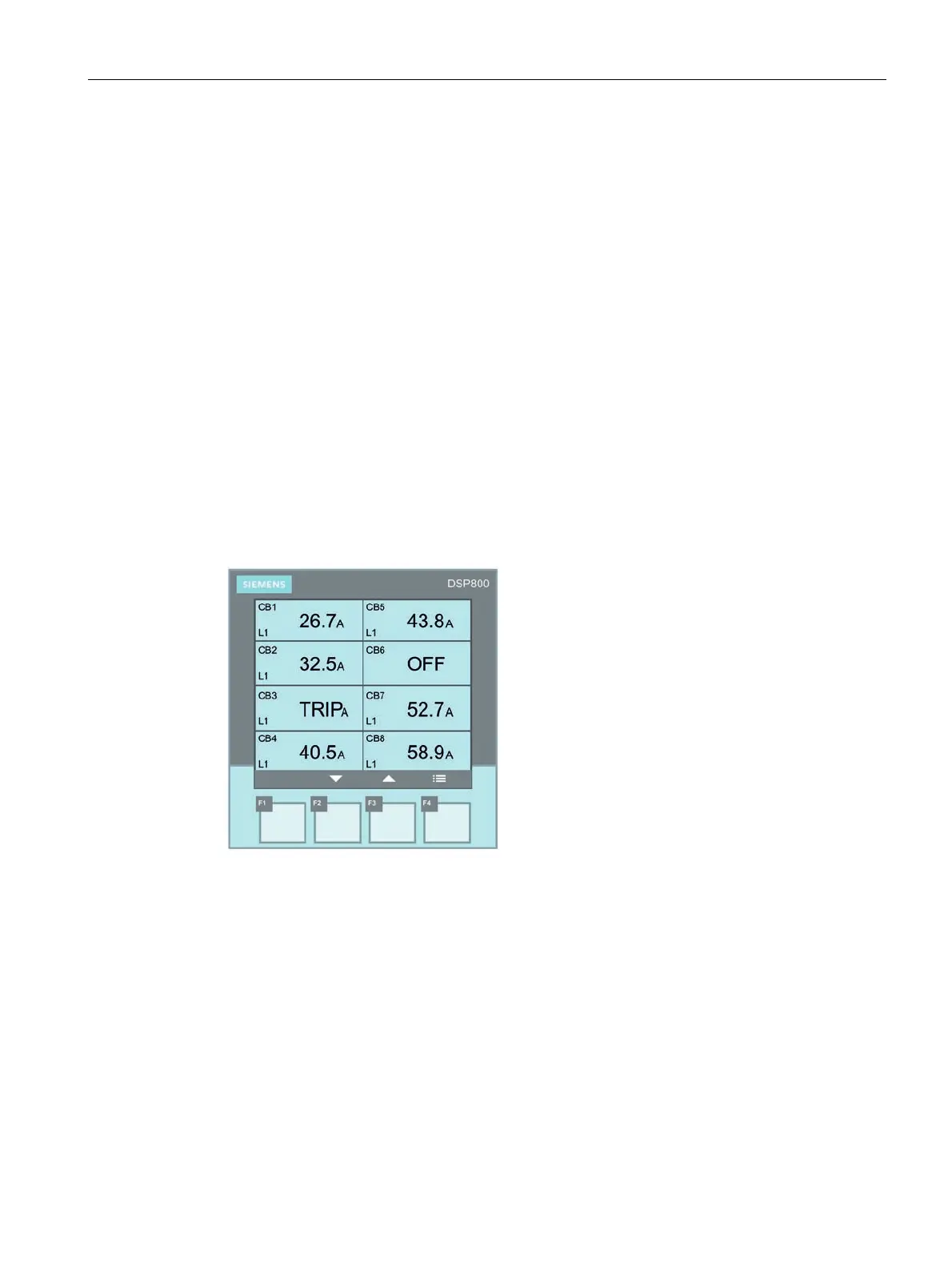

Templates for 1, 2, 4 and 8 breakers are available as default screens. These can either be
selected and arranged automatically or they can be manually assigned. In addition, the
measured values to be displayed can be selected in the overview.
