Technical specifications

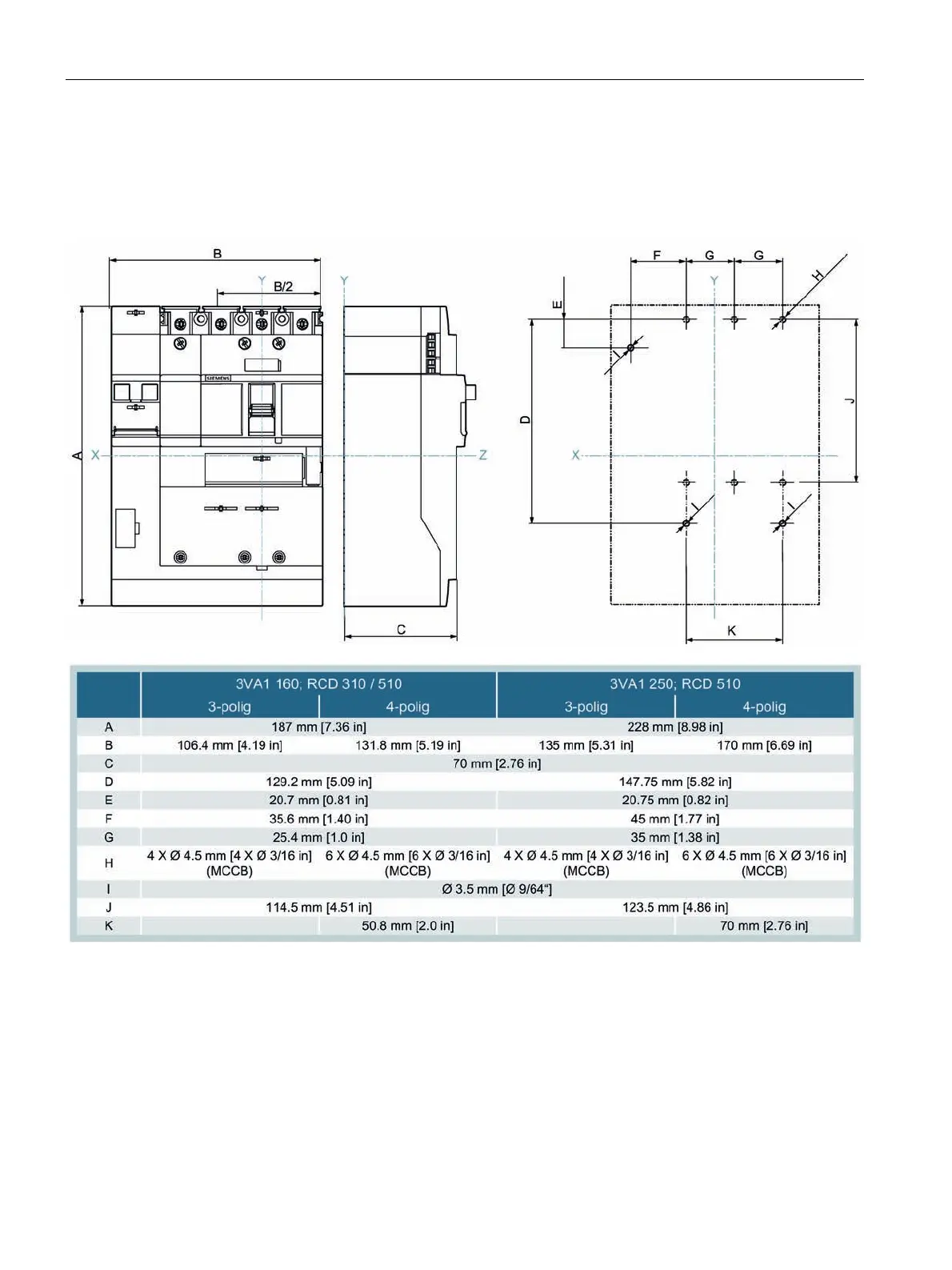

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

614 Manual, 03/2019, A5E03603177010-03

6.2.2.6

Residual current devices

Side-mounted residual current devices Basic RCD310 and Basic RCD510
