Description

2.8 Electronic trip unit

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

2.8.1

Connections

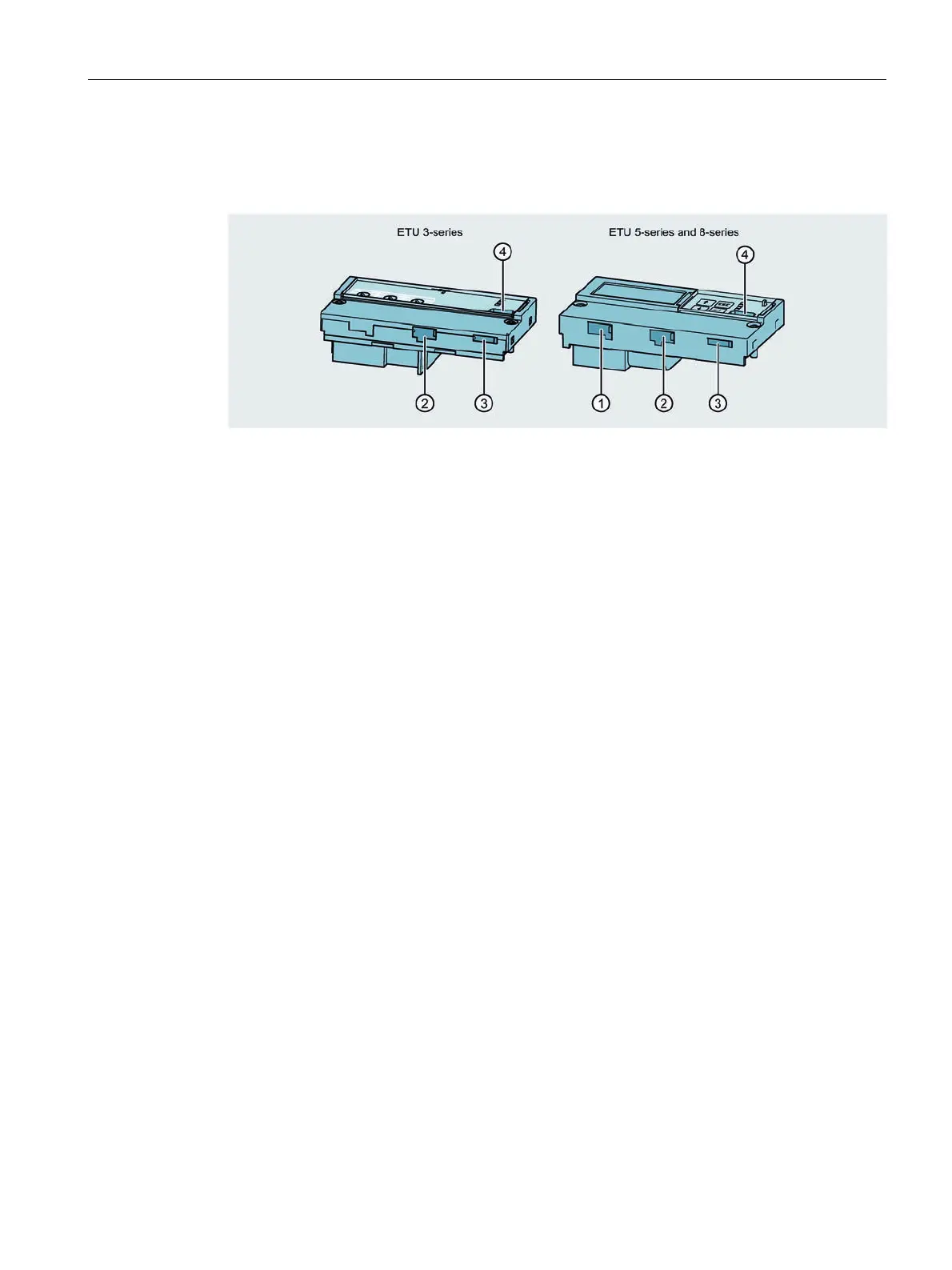

The connections on the ETU are illustrated in the diagram below:

①

Interface for an external current transformer for N conductor

②

Interface for connection of an EFB300 external function box

③

Interface for connection of an RCD820 residual current device

④

Connection for test devices TD300 and TD500
