Supplementary information
18.15 Other options for connecting redundant I/Os
CPU 410 Process Automation/CPU 410 SMART
354 System Manual, 05/2017, A5E31622160-AC
Other options for connecting redundant I/Os
Redundant I/O at user level
If you cannot use the redundant I/O supported by the system (Chapter Connection of two-
channel I/O to the PROFIBUS DP interface (Page 80)), for example, because the module to
be used redundantly is not in the list of supported components, you can also implement the
use of redundant I/O at the user level.
The following redundant I/O configurations are supported:
1. Redundant configuration with one-sided central and/or distributed I/O.
For this purpose, one signal module each is inserted into the CPU 0 and CPU 1
subsystems.
2. Redundant configuration with switched I/O
One signal module each is inserted into two ET 200M distributed I/O devices with active
backplane bus.

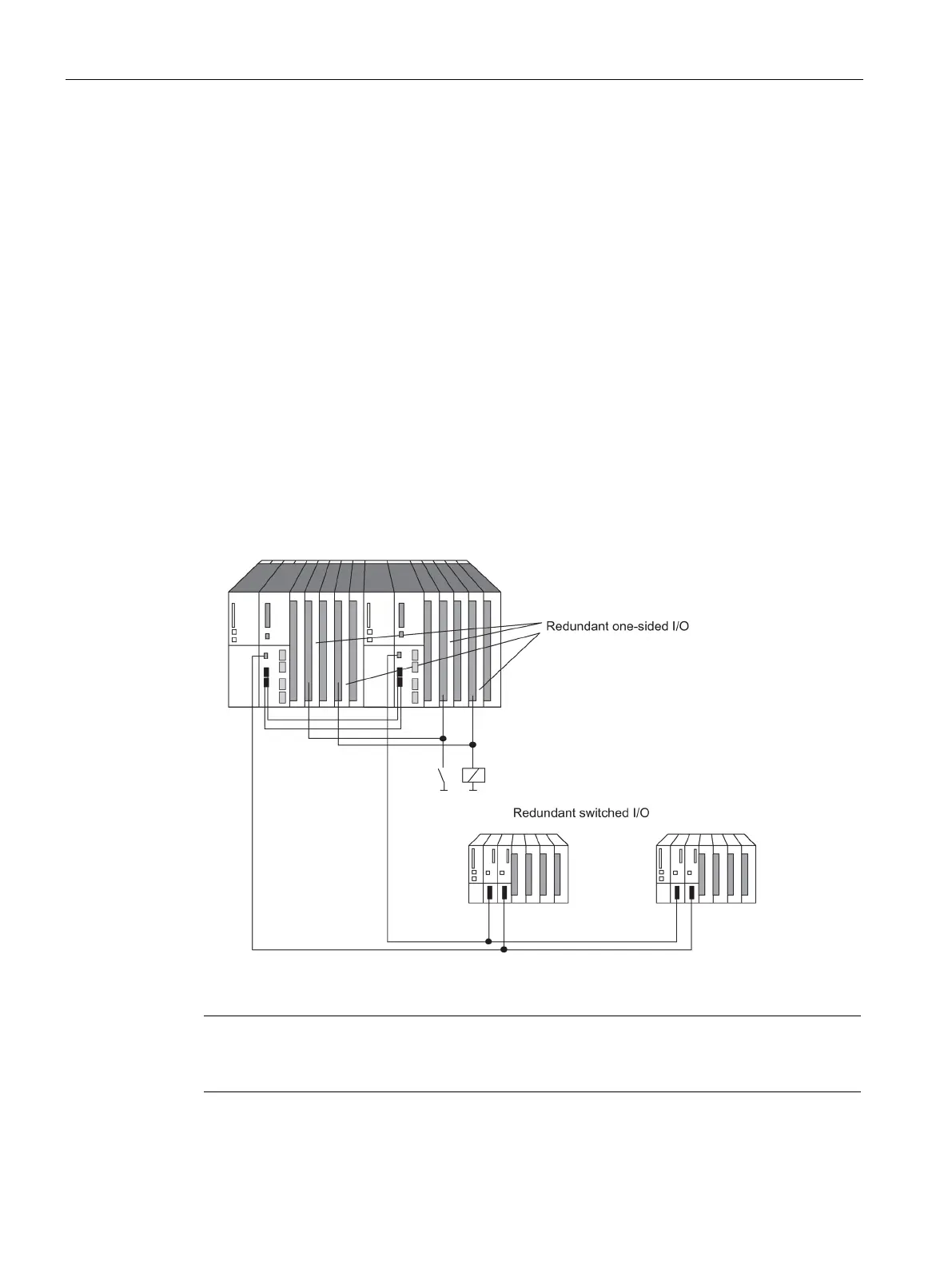

Figure 18-25 Redundant one-sided and switched I/O
Note
When using redundant I/O, you may need to add time to the calculated monitoring times; see
Chapter
Determining the monitoring times (Page 123)
