Connection examples for redundant I/Os
C.35 SM 332; AO 4 x 12 Bit; 6ES7 332–5HD01–0AB0
CPU 410 Process Automation/CPU 410 SMART
426 System Manual, 05/2017, A5E31622160-AC
C.35
SM 332; AO 4 x 12 Bit; 6ES7 332–5HD01–0AB0

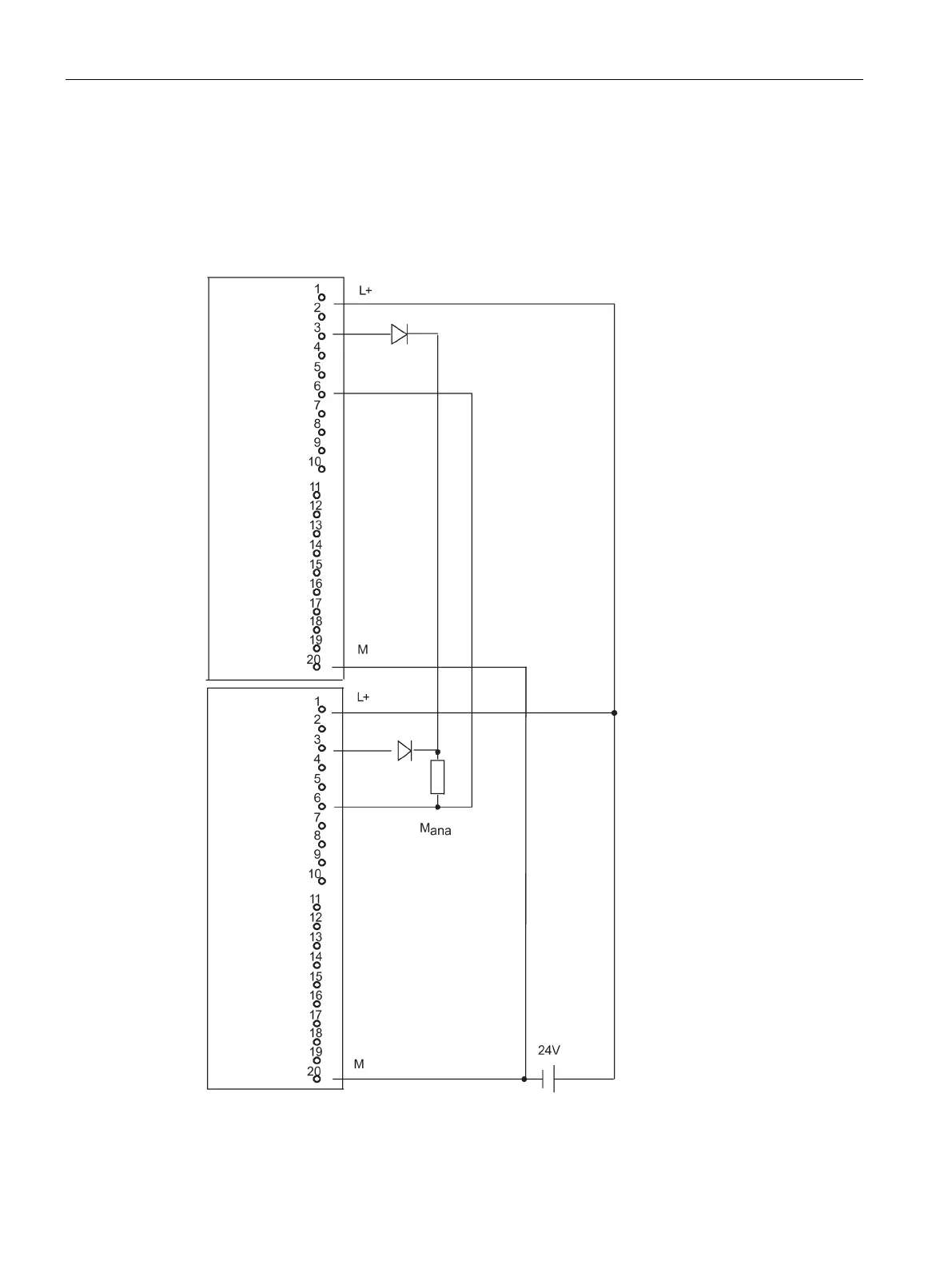

The diagram below shows the connection of an actuator to two
SM 332; AO 4 x 12 Bit. The actuator is connected to channel 0. Suitable diodes are, for
example, those of the series 1N4003 ... 1N4007, or any other diode with U
_r
>=200 V and I_
F
>= 1 A
Figure C-34 Example of an interconnection with SM 332, AO 4 x 12 Bit
