11.2 Self-Defined
Screen Hierarchy
The
screen hierarchy can be adapted to system-specific requirements and be
modified either in part or in whole. Screens can be removed or added.
Screens can be linked together in random order
. The design, sequence of the
link, inclusion in the screen directory and the relevant cross-jump destina
-
tions are defined during configuration with ProT
ool.
Y
ou branch between the dif
ferent screens by means of soft keys and config
-
ured cross-jump destinations. Branching from entries of dif
ferent screens to
one and the same screen is possible (figure 1
1-1). Cross-jumps are not re
-
stricted to screen level, but can branch to the message level too.
Another feature that is configured is the picture you want to have displayed
on the OP as your start screen.

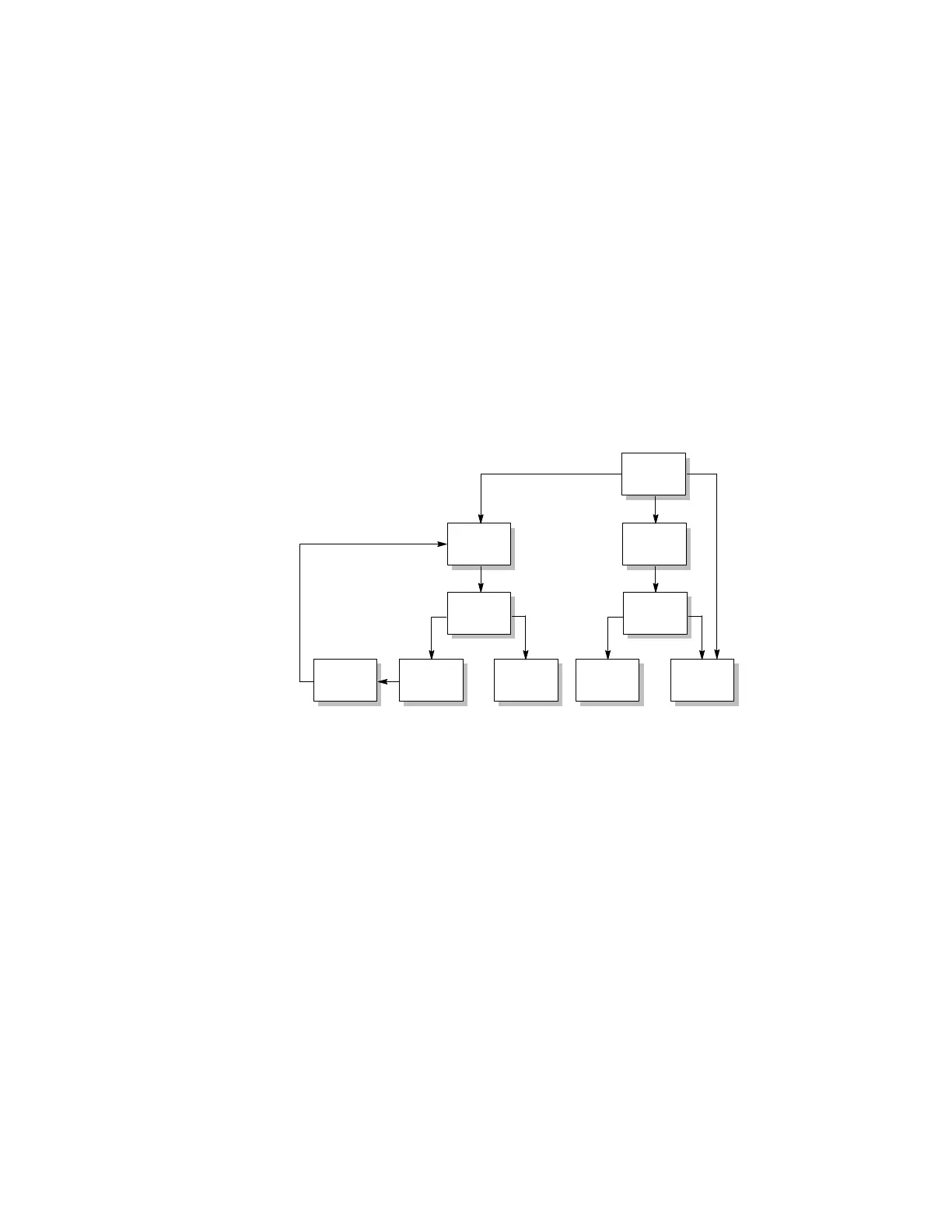

Figure 11-1 Principle of a Screen Hierarchy
An
overview is presented below
, with reference to an example, of the design
of a screen hierarchy
. Detailed information on configuration will be found in
the
ProT
ool/Lite User
’
s Guide
.
Defining the
screen hierarchy
Branching using
soft keys and
cross-jump
destinations
Defining the start
screen
