Equipment Manual OP7, OP17
Release 04/99
1.3 Design of Operator Panel OP7
The OP7 has a plastic housing with a touch-sensitive front and is therefore
suitable for ungrounded installation. The coloring of the front foil conforms
with machinery directive EN 60204.
The OP7 is available in the following versions:
 OP7/PP,
 OP7/DP and
 OP7/DP-12.
The versions dif fer only in their communication options. figure 1-2 shows the
design of Operator Panel OP7.
SIMA TIC OP7

F1
F2 F3 F4
K1 K2 K3 K4
7
8
9
456
1
2
3
HELP
.
0
+/–
ESC
ACK
ENTER
A
BC
D
E
F
Display
Function
keyboard
Numerical
keypad
Interface
connections
SHIFT
HELP
INS
DEL
SHIFT

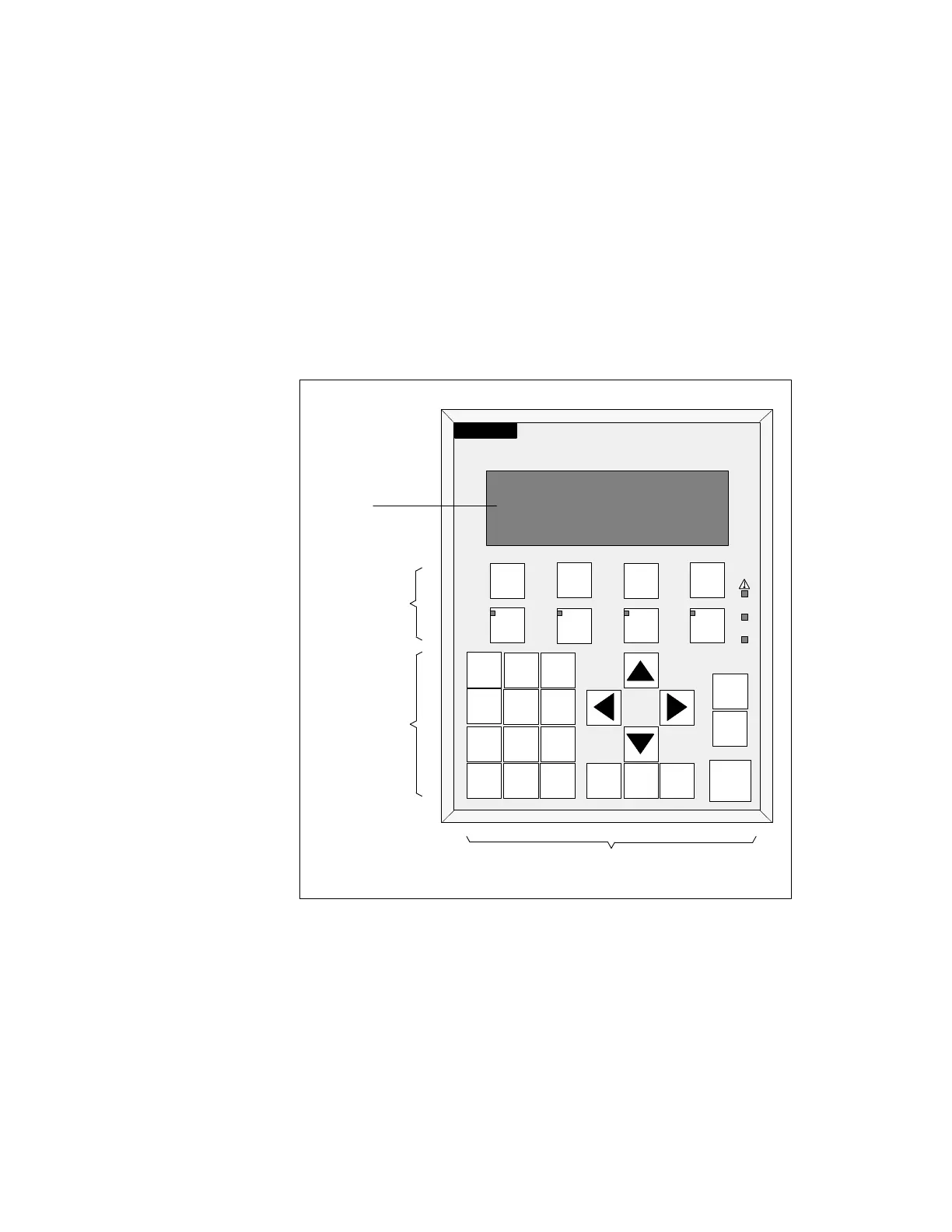

Figure 1-2 Design of Operator Panel OP7
OP7 versions

Siemens simatic hmi op7 Specifications

General

Brand	Siemens
Model	simatic hmi op7
Category	Control Panel
Language	English
