8-7
Equipment Manual OP7, OP17
Release 04/99
8.3 Transferring Data Records
A transfer screen of fering the following functions is available for transferring
data records.
 OP ! PLC
Before a changed or newly set up data record in a recipe can become
ef fective in the PLC, it must first be transferred via data record transfer to
the PLC.
 PLC ! OP
T ransfer the data record which is active in the PLC to the OP under a new
number and a new name.
 OP ! OP
Copy an already existing data record on the OP .
The transfer screen is called via Recor d ! T ransfer . It is shown below .
No. of the source data
record
No. of the destination data
record
Only with SIMA TIC S5:
The recipe/data record activ
e
in the PLC
Recipe number selected on
the OP
1
2
3
4
Source: Dest.:
Juice
Accept
PLC: OP:
1
3
2
4

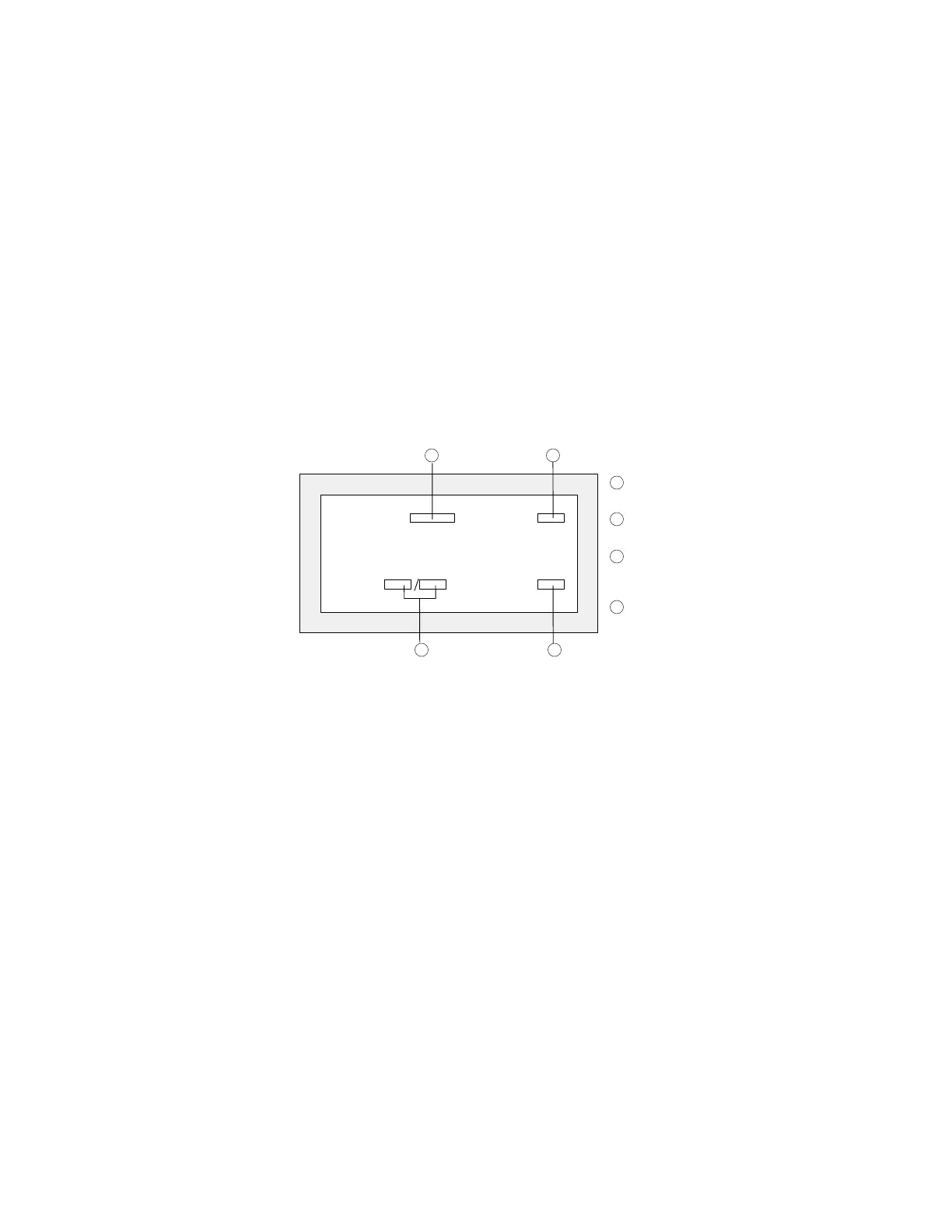

Figure 8-2 Transfer screen (Example: OP7)
The data record numbers for the source data record and the destination data
record must be entered in the transfer screen.
 The PLC data record is always ”0” for both directions of transfer .
 The OP data record must always be specified as a number > 0.
Overview
Transfer
screen
Specifying source
and destination
