Siemens Simatic S7-200 CPU 210 User Manual

A-14
S7-200 Programmable Controller, CPU 210
C79000-G7076-C235-01

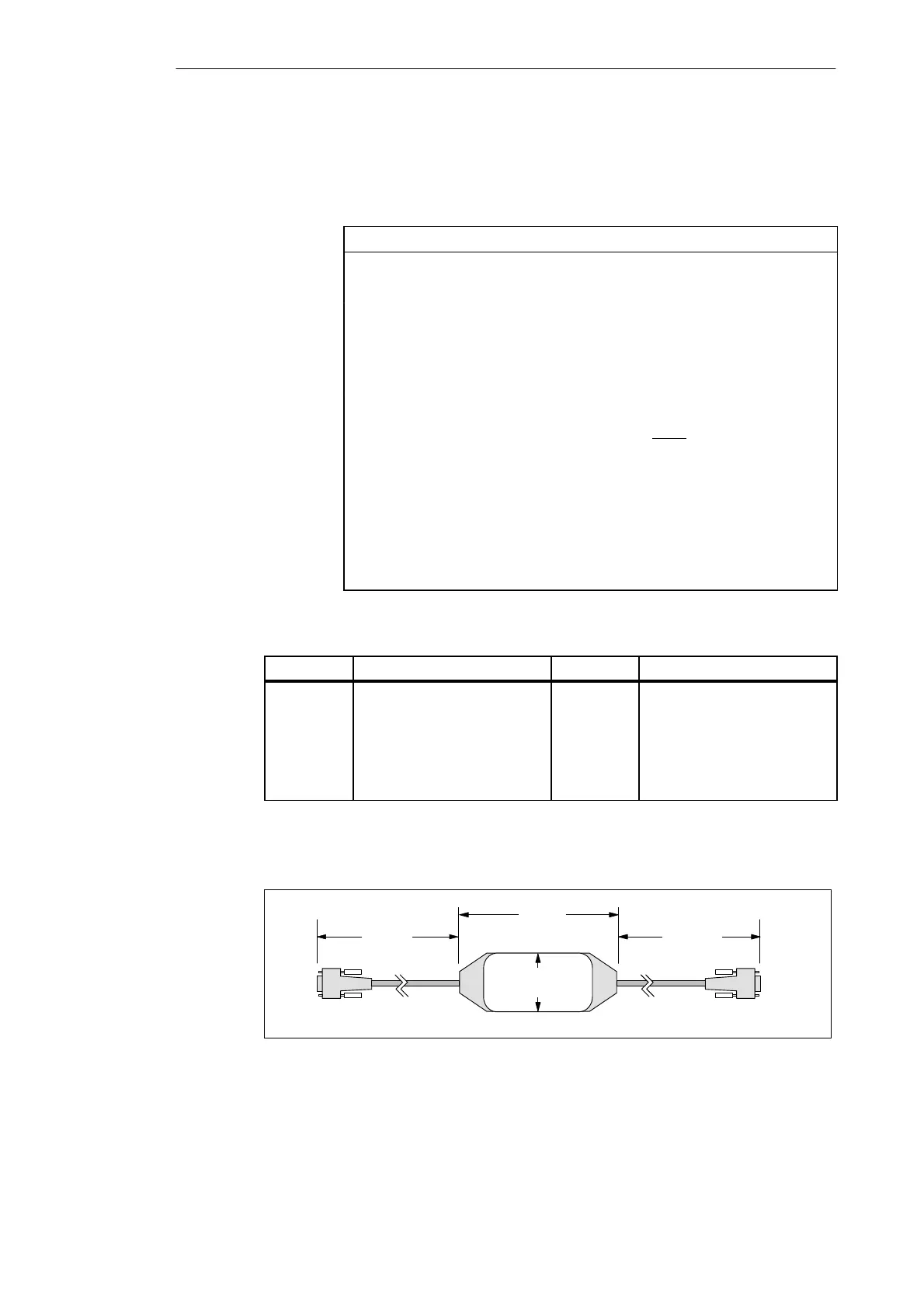

A.8 PC/PPI Cable
Model Number: 6ES7 901-3BF00-0XA0
General Features
Cable Length 5 meters (197 in.)
Weight 0.3 kg (0.7 lbs.)
Power Dissipation 0.5 W
Connector Type PC
PLC
9 pin Sub D (socket)
9 pin Sub D (pins)
Cable Type RS-232 to RS-485 non-isolated
Cable Receive/Transmit Turn-around Time 2 character times
Baud Rate Supported
(selected by dip switch)
Switch
38.4 k 0000
19.2 k 0010
9.6 k 0100
2.4 k 1000
1.2 k 1010
600 1100
Standards Compliance UL 508 CSA C22.2 142
FM Class I, Division 2
VDE 0160 compliant; CE compliant
Table A-2 PC/PPI Cable Pin-Out
RS-232 Pin Function Computer End RS-485 Pin Function PDS 210 End
2 Received Data (PC listens) 8 Signal A
3 Transmitted Data (PC sends) 3 Signal B
5 Signal Common 7 +24 V
2 +24 V Return (PLC logic common)
1 Shield (PLC logic common)
PC/PPI Cable Dimensions
0.1 m
(4 in.)
0.3 m
(12 in.)
RS-232 COMM RS-485 COMM
4.6 m
(181 in.)
40 mm
(1.6 in.)
Figure A-7 PC/PPI Cable Dimensions
