3.3 Putting the Control Logic into a Program
After you have designed the control logic for your application, you arrange the instructions
into a program. You can choose either STL or ladder for your program.
Figure 3-11 provides a listing of the ladder program for the sample program. This program
includes the control logic from Section 3.2. The program ends with the End instruction.
Sound the alarm!
Evaluate the system status.
Start the Alert timer.
If the system is armed, then set the lamp bit and start the exit timer.
T0
>=I
+600
I0.3
I0.2
M0.1
S
1
Q0.3
S
1
M0.2
R
I0.2
M0.2
S
I0.0
/
I0.1
/
M0.1
/
TON IN
PT
T0
+0
M0.2
(Continued)
T2
>=I
+900
TON IN
PT
T2
+0
I0.2
M0.0
S
1
1
1
Network 1
Network 2
Network 3
Network 4

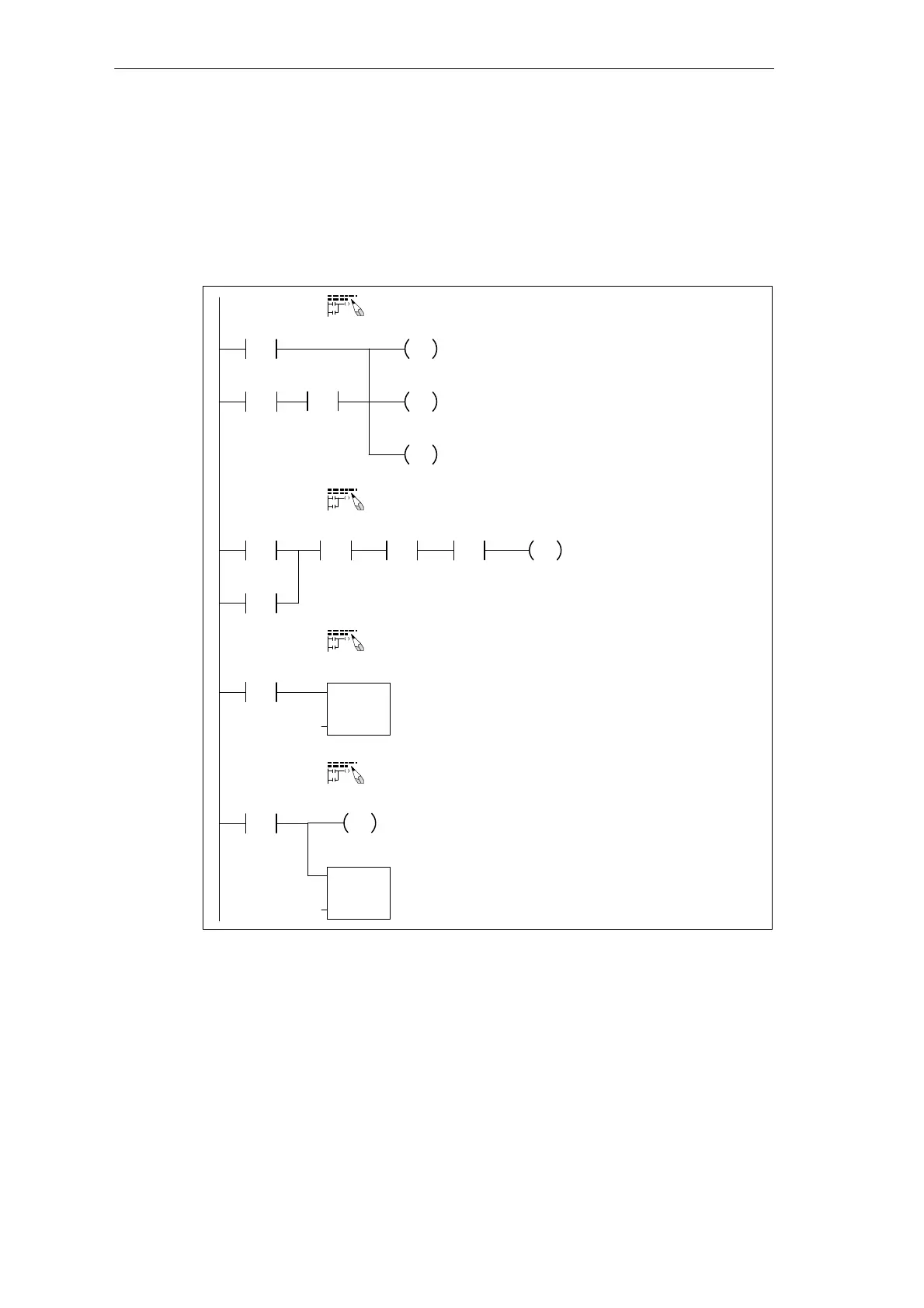

Figure 3-11 Home Security Program Example in Ladder
Getting Started with a Sample Program
