Siemens Simatic S7-200 CPU 210 User Manual

A-15
S7-200 Programmable Controller, CPU 210
C79000-G7076-C235-01
A.9 DC Input Simulator
Model Number: 6ES7 274-1XH00-0XA0
General Features
Physical Size (L x W x D) 91 x 36 x 22 mm (3.6 x 1.4 x 0.85 in.)
Weight 0.03 kg (0.06 lb.)
Points 14
Note
The PDS 210 supports only 4 of the 14 simulator points.
23 mm
(0.9 in.)
1
0
0.0 0.1 0.2 0.3 M L+
DC
SENSOR
SUPPLY
1M
DC 24V
INPUTS

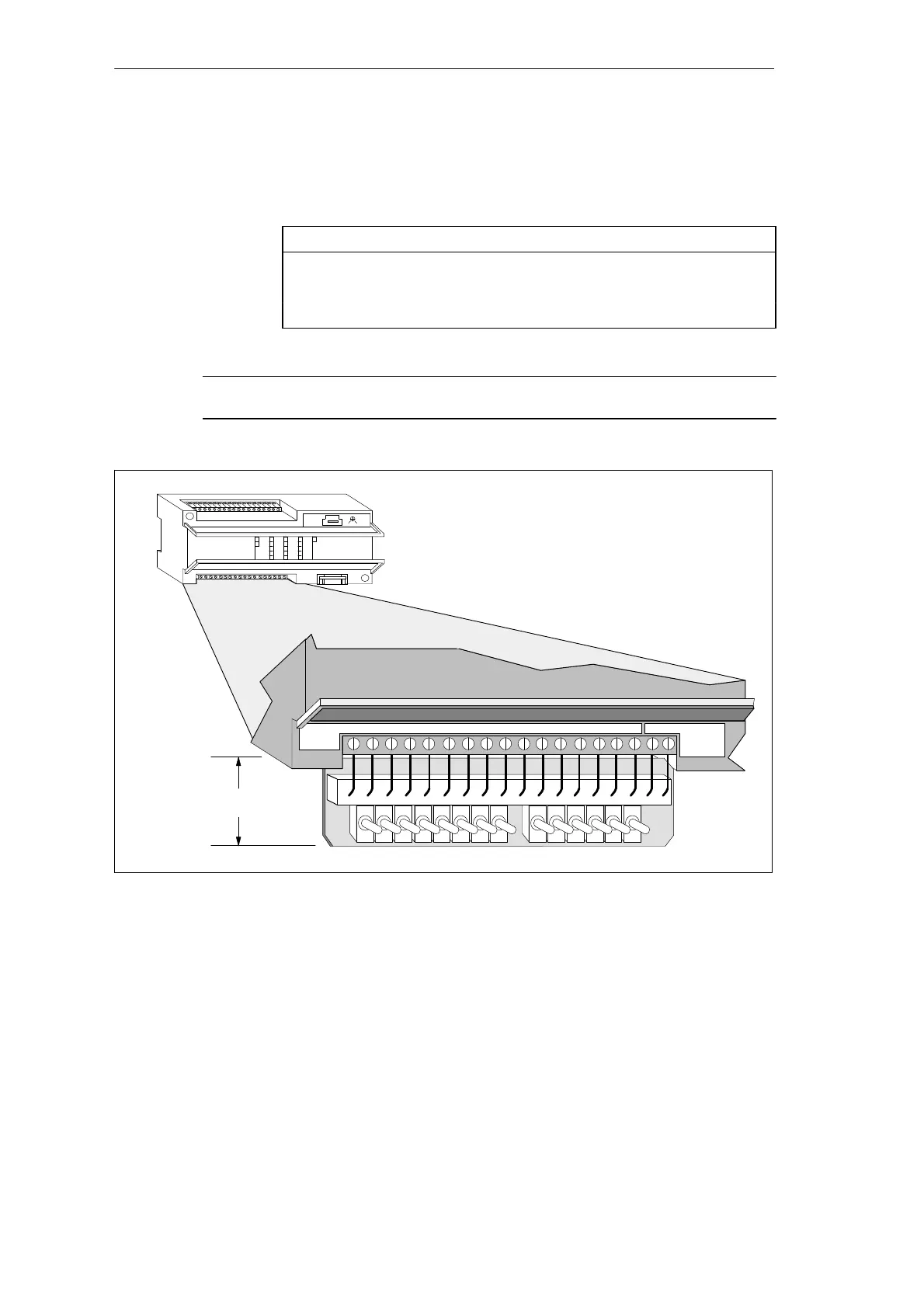

Figure A-8 Installation of the DC Input Simulator
