1.5 Using Suppression Circuits
Install or equip inductive loads with suppression circuits that limit voltage rise on loss of
power. Use the following guidelines to design adequate suppression. The effectiveness of a
given design is dependent on the application, and you must verify it for a particular use. Be
sure all components are rated for use in the application.
Protecting DC Transistors
The DC transistor outputs of the CPU 210 contain zener diodes that are adequate for many
installations. Use external suppression diodes for either large or frequently switched

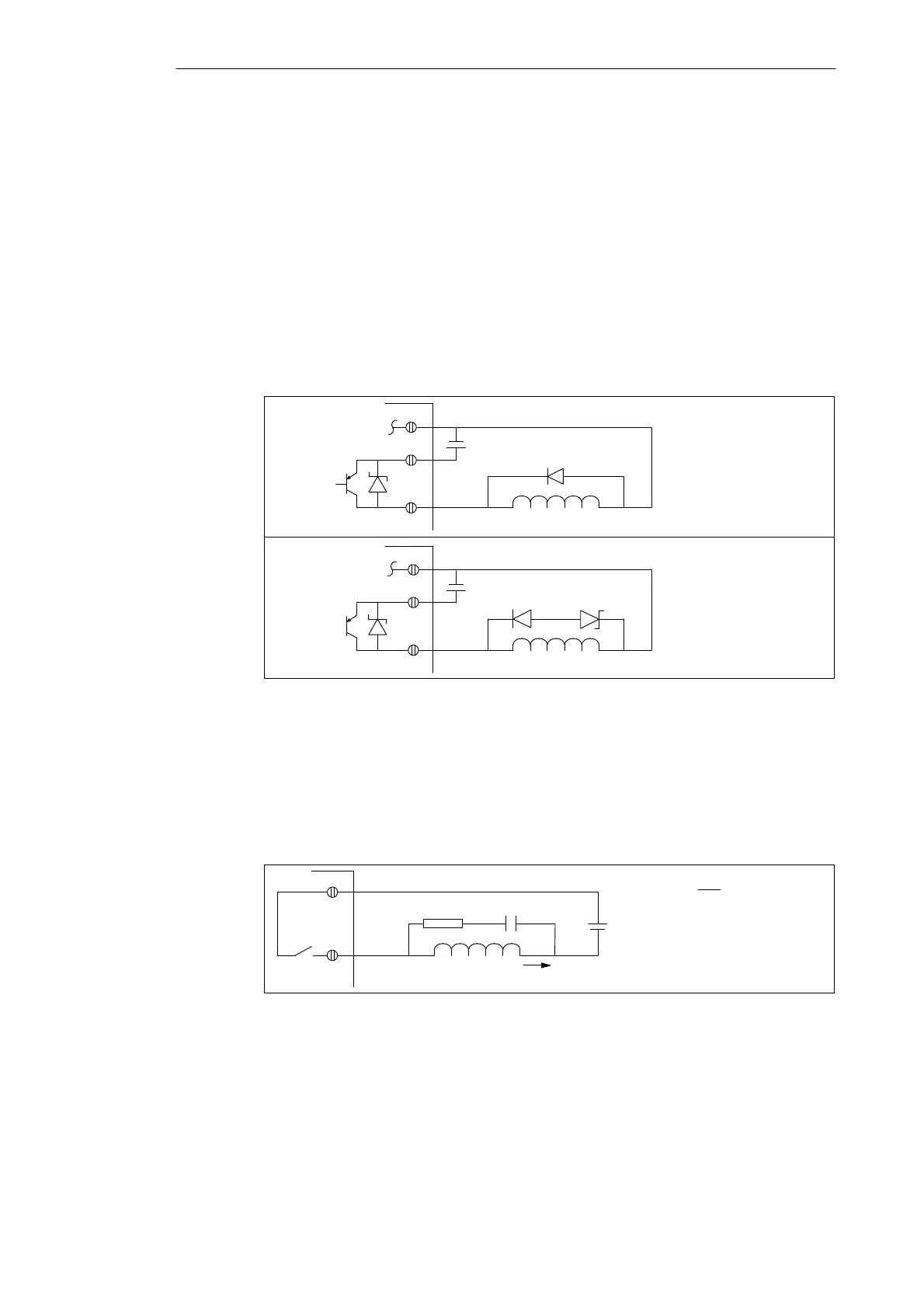

inductive loads to prevent overpowering the internal diodes. Figure 1-12 shows typical
applications for DC transistor outputs.
+VDC
(1) IN4001 diode or
equivalent
(1)
Inductor
(1) IN4001 diode or
equivalent
(2) 8.2 V zener, 5 W
+VDC
(1) (2)
Inductor
Zener Diode
Suppression
Diode
Suppression
Figure 1-12 Diode Suppression and Zener Diode Suppression
Protecting Relays Controlling DC Power
Resistor/capacitor networks, as shown in Figure 1-13, can be used for low voltage (30 V) DC
relay applications. Connect the network across the load. You can also use diode
suppression, as shown in Figure 1-12, for DC relay applications. A threshold voltage of up to
36 V is allowed if you use a reverse zener diode.
+VDC
where minimum R = 12Ω
RC
I
L
Inductor
R 
V
DC
I
L
where K is 0.5 to 1 µ F/A
C  I
L
K
Figure 1-13 Resistor/Capacitor Network on Relay-Driven DC Load
