Note
EMC instructions
•
To comply with the EMC standards, all cables connected with the SINAMICS V90 system must be shielded cables,
which include cables from the line supply to the line filter and from the line filter to the SINAMICS V90 drive.
•
The SINAMICS V90 drives have been tested in accordance with the emission requirements of the category of C2
(domestic) environment. The conductive emissions and radiated emissions are in compliance with the standard of EN
55011 and reached Class A.
•
In a residential environment, this product can cause high-frequency interferences that may necessitate suppression
measures.
•
For a radiated emission test, an external AC filter (between the mains supply and the drive) will be used to meet the EMC
requirement and the drive will be installed inside the shielded metallic chamber, other parts of the motion control system
(including the PLC, DC power supply, spindle drive, motor) will be put inside the shielded chamber.
•
For a conductive emission test, an external AC filter (between the mains supply and the drive) will be used to meet the
EMC requirement.
•
For the r
adiated emission and conductive emission test, the length of the line supply cable between the line filter and the
drive must be shorter than 1 m.
•
The harmonic current value of SINAMICS V90 exceed the class A limit of IEC 61000-3-2, but the SINAMICS V90 sy
stem
installed within the Category C2 First Environment require supply authority acceptance for connection to the public low-
voltage power supply network. Please contact your local supply network provider.
Note
Screw tightening
Make sure you fix the scr
ew to the terminal door of the drive after you have completed the installation work.
3.2
Mounting the motor
NOTICE
Damage to the encoder
Do not exert any shock at the shaft end; otherwise, the encoder may be damaged.
For mounting conditions, see Technical data - servo motors (Page 27).

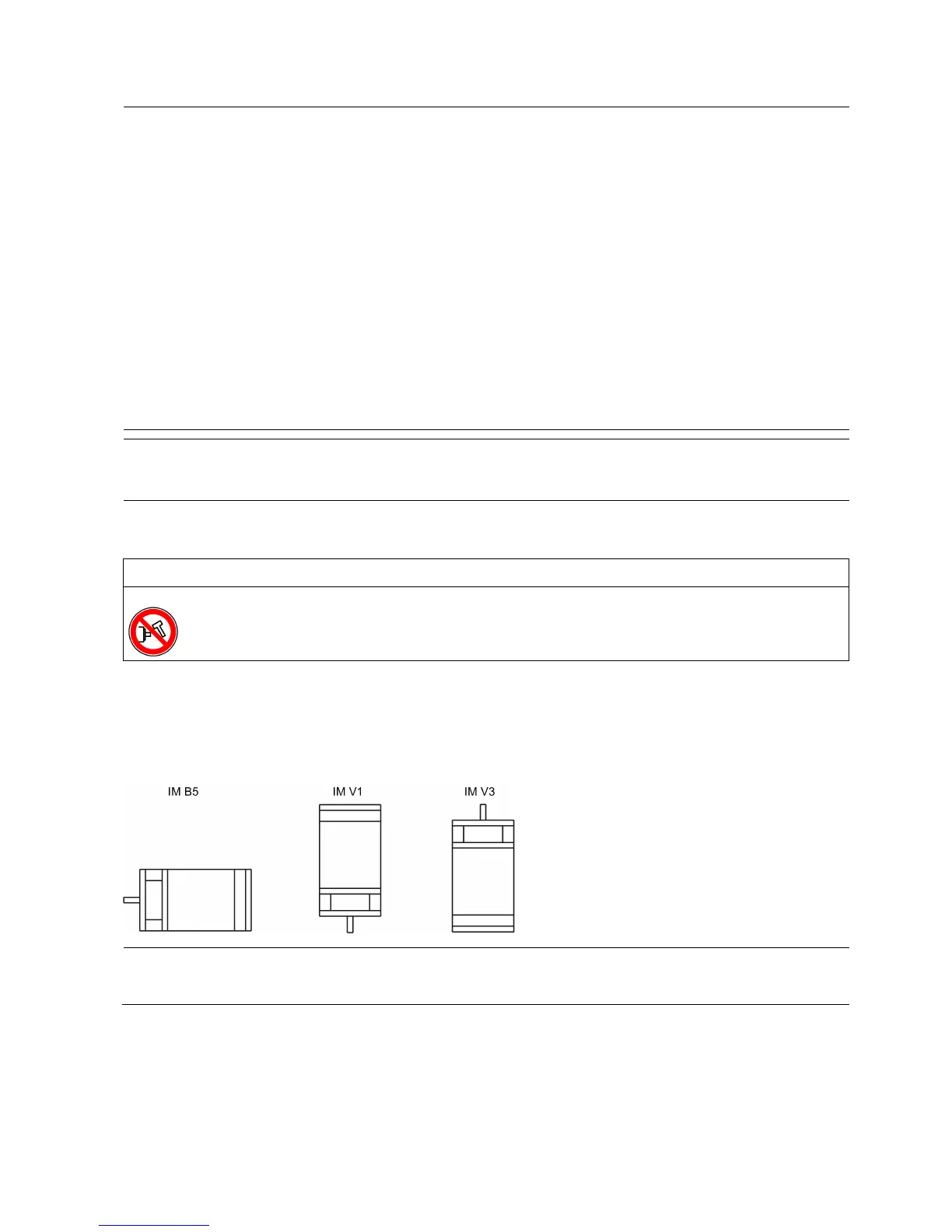

Mounting orientation
SIMOTICS S-1FL6 supports flange mounting only and three types of constructions, so it can be installed in three
orientations as shown in the following figure.
Note
When configuring the IM V3 type of construction, pay particular attention to the permissible axial force (weight force of the
drive elements) and the necessary degree of protection.
