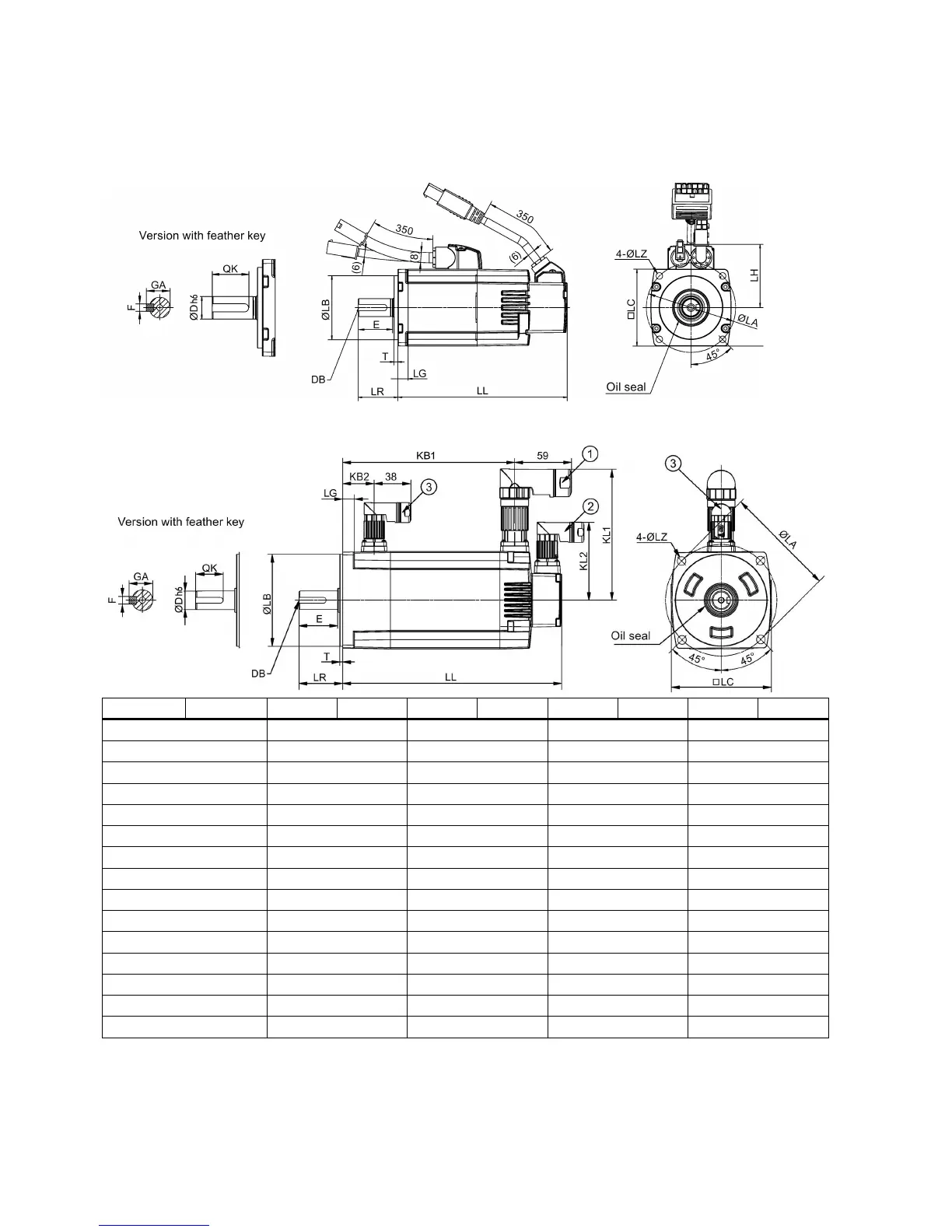

Motor dimensions (unit: mm)
Low inertia servo motor, shaft height: 20 mm, 30 mm, and 40 mm
Low inertia servo motor, shaft height: 50 mm
Type
1FL60...
22
24
32
34
42
44
52
54
Shaft height
20
30
40
50
LC
40
60
80
100
LA
46
70
90
115
LZ
4.5
5.5
7
9
LB
30 - 0.02
50 - 0.03
70 - 0.03
95 - 0.03
LH
40
50
60
-
LR
25 31 35 45
T
2.5 - 0.2
3 - 0.2
3 - 0.3
3 - 0.3
LG
6 8 8 12
D
8 - 0.009
14 - 0.011
19 - 0.013
19 - 0.013
DB
M3 × 8
M4 × 15
M6 × 16
M6 × 16
E
22
26
30
40
QK
17.5
22.5
28
28
GA
9
16
21.5
21.5
F
3
5
6
6
