Siemens SIMOTICS S-1FL6 Getting Started

Getting Started
A5E36037886-003, 04/2017
67
BOP displays

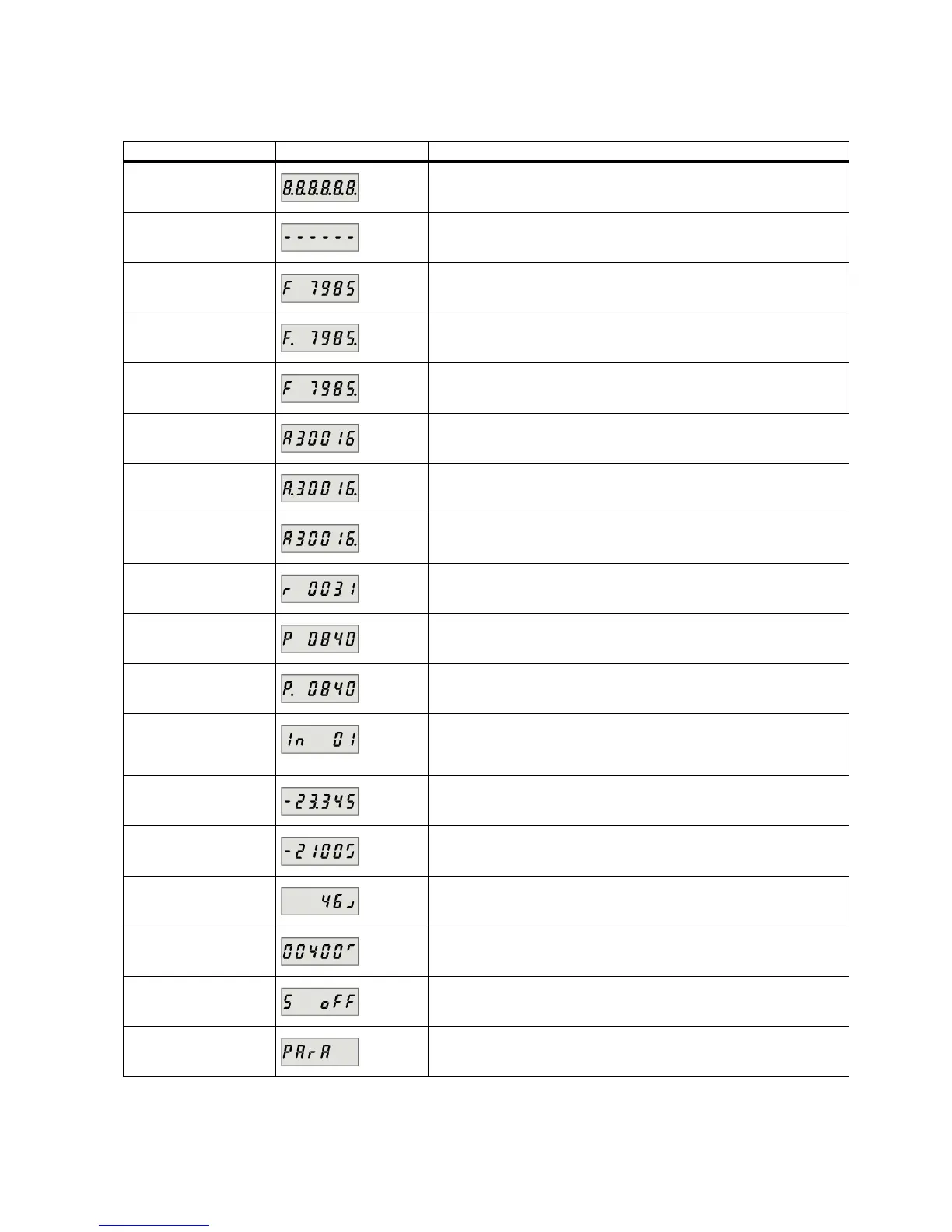

You can find the description and corresponding examples for BOP displays in the table below:
Display
Example
Description
8.8.8.8.8.8.
Drive is in startup state
------
Drive is busy
Fxxxxx
Fault code, in the case of a single fault
F.xxxxx.
Fault code of the first fault, in the case of multiple faults
Fxxxxx.
Fault code, in the case of multiple faults
Axxxxx
Alarm code, in the case of a single alarm
A.xxxxx.
Alarm code of the first alarm, in the case of multiple alarms
Axxxxx.
Alarm code, in the case of multiple alarms
Rxxxxx
Parameter number, read-only parameter
Pxxxxx
Parameter number, editable parameter
P.xxxxx
Parameter number, editable parameter; the dot means that at least
one parameter has been changed
In xx
Indexed parameter
Figure after "
In
" indicates the number of indices.
For example, "In 01" means that this indexed parameter is 1.
xxx.xxx
Negative parameter value
xxx.xx<>
Current display can be moved to left or right
xxxx.xx>
Current display can be moved to right
xxxx.xx<
Current display can be moved to left
S Off
Operating display: servo off
Para
Editable parameter group
