Siemens SIMOTICS S-1FL6 Getting Started

Getting Started
78 A5E36037886-003, 04/2017
6
Parameters
6.1
Overview
The section below lists all the parameters of the SINAMICS V90 servo drive.
Parameter number
Numbers prefixed with an "r" indicate that parameter is a read-only parameter.
Numbers prefixed with a "P" indicate that the parameter is an editable parameter.
Effective
This indicates the conditions for making parameterization effective. Two conditions are possible:
● IM (
Im
mediately): Parameter value becomes effective immediately after changing.
● RE (
Re
set): Parameter value becomes effective after repower-on.
Can be changed
This indicates when the parameter can be changed. Two states are possible:
●
U
(Run): Can be changed in the "
Running
" state when the drive is in "S ON" state. The "RDY" LED lights up green.
●
T
(Ready to run): Can be changed in the "
Ready
" state when the drive is in "S OFF" state. The "RDY" LED lights up red.
Note
When judging the state of the drive according to the
"RDY" LED, ensure that no faults or alarms exist.
Data type
Date type
Abbreviation
Description
Integer16
I16
16-bit integer
Integer32
I32
32-bit integer
Unsigned8
U8
8-bit unsigned integer
Unsigned16
U16
16-bit unsigned integer
Unsigned32
U32
32-bit unsigned integer
FloatingPoint32
Float
32-bit floating point number

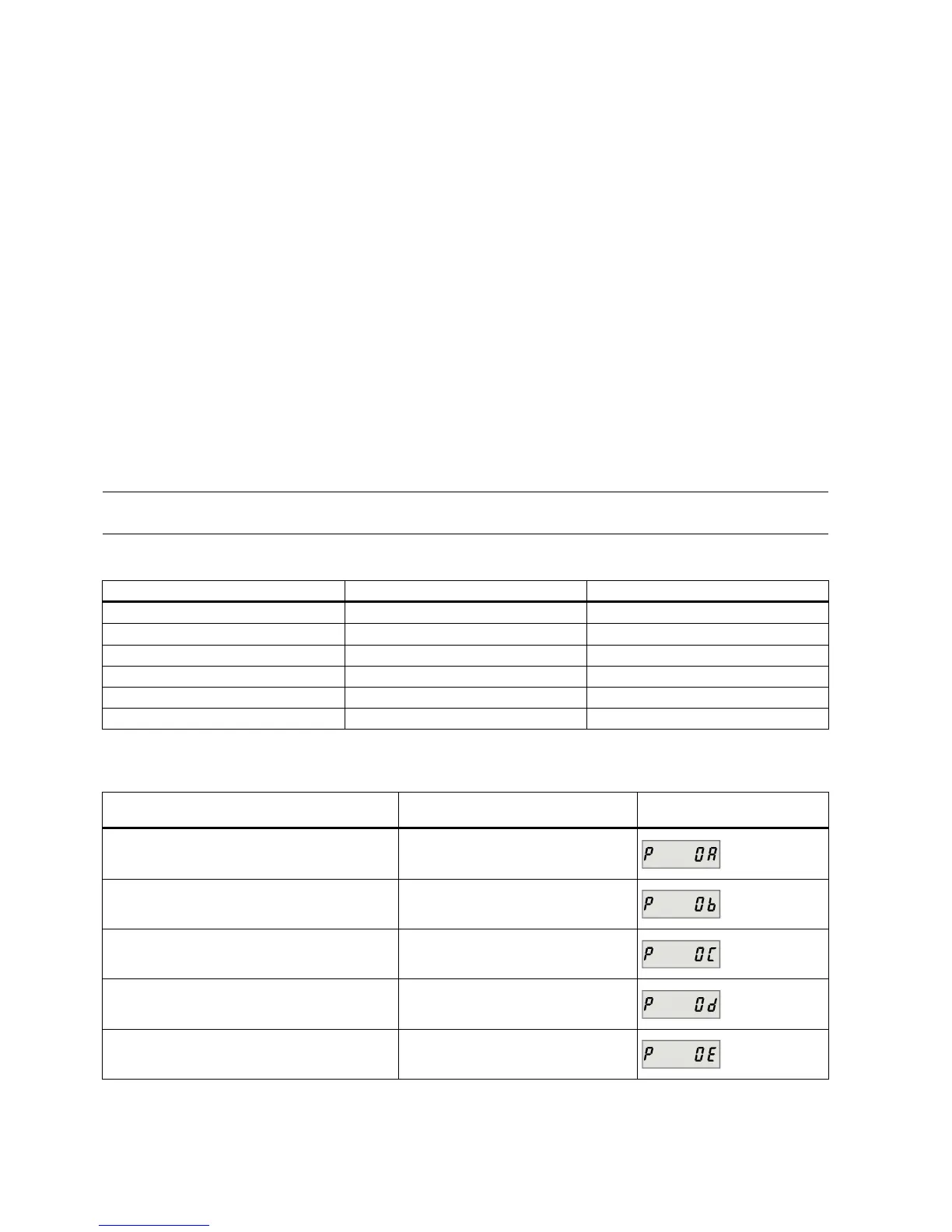

Parameter groups
The SINAMICS V90 parameters are divided into the following groups:
Parameter group
Available parameters
Parameter group display on
the BOP
Basic parameters p290xx
Gain adjustment parameters p291xx
Speed control parameters p10xx to p14xx, p21xx
Torque control parameters p15xx to p16xx
Position control parameters p25xx to p26xx, p292xx
