General information
The SINAMICS V90 drives are available in two variants, 400 V variant and 200 V variant.
The 200 V variant is available in four frame sizes: FSA, FSB, FSC, and FSD. Frame sizes A, B, and C are used on the
single phase or three phase power network while frame size D is used on the three phase power network only.
The 400 V variant is also available in four frame sizes: FSAA, FSA, FSB, and FSC. All the frame sizes are used on three
phase power network only.
2.1
Deliverables
2.1.1
Drive components

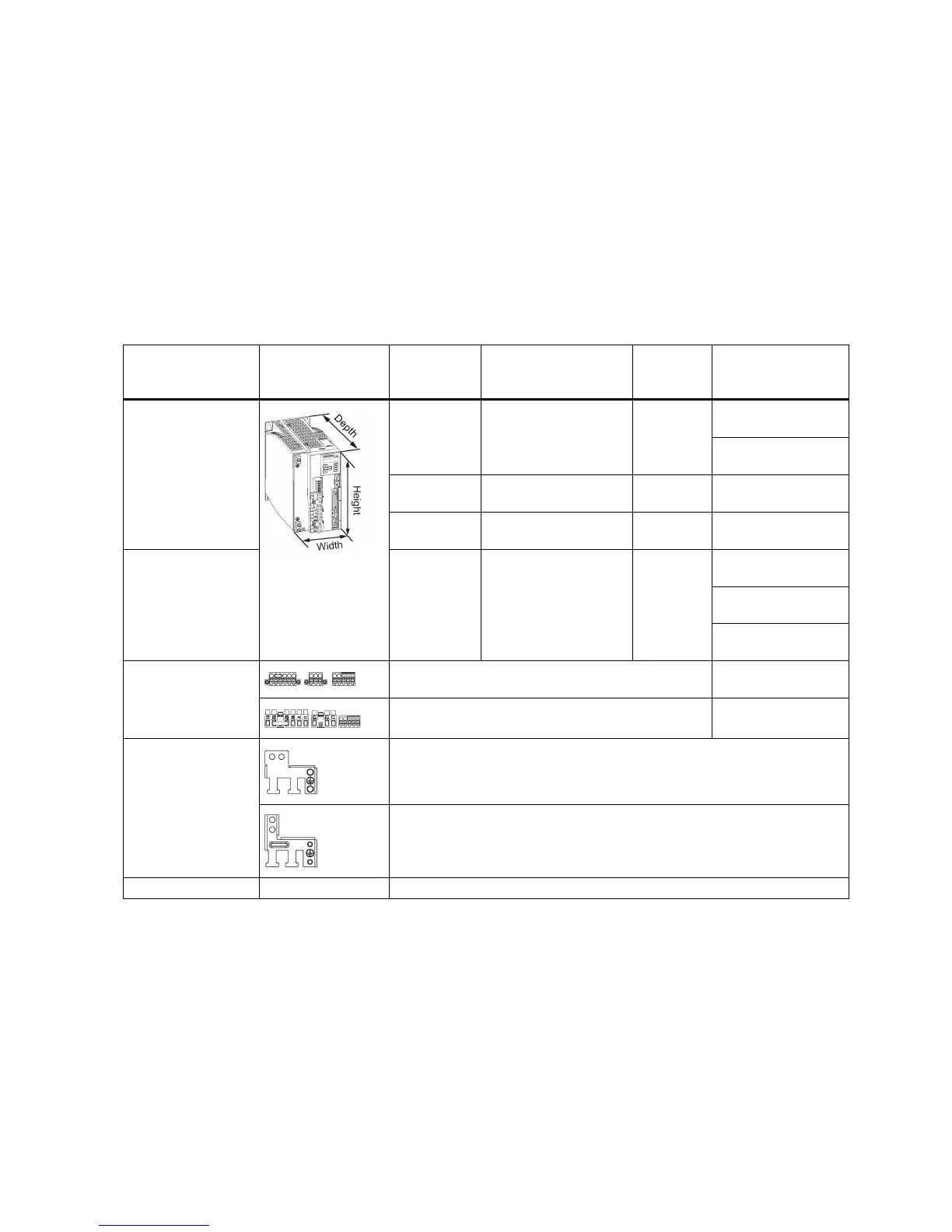

Components in SINAMICS V90 200 V variant drive package
Component
Illustration
Rated power
(kW)
Outline dimension
(Width x Height x
Depth, mm)
Frame size
Article number
SINAMICS V90,
single/three-phase,
200 V
0.1/0.2 45 x 170 x 170 FSA 6SL3210-5FB10-
1UA0
6SL3210-5FB10-
2UA0
0.4 55 x 170 x 170 FSB 6SL3210-5FB10-
4UA1
0.75 80 x 170 x 195 FSC 6SL3210-5FB10-
8UA0
SINAMICS V90,
three-phase, 200 V
1.0/1.5/2.0 95 x 170 x 195 FSD 6SL3210-5FB11-
0UA1
6SL3210-5FB11-
5UA0
6SL3210-5FB12-
0UA0
Connectors
For FSA and FSB 6SL3200-0WT02-
0AA0
For FSC and FSD 6SL3200-0WT03-
0AA0
Shielding plate For FSA and FSB
For FSC and FSD
User documentation
Information Guide
English-Chinese bilingual version
