Siemens SIMOTICS S-1FL6 Getting Started

Getting Started
48 A5E36037886-003, 04/2017
4.2
Main circuit wiring
4.2.1
Line supply - L1, L2, L3
SINAMICS V90 200 V variant
Recommended minimum cable cross-section:
When used on the single phase power network:
FSA: 0.33 mm
2
FSB: 0.52 mm
2
FSC: 1.31 mm
2
When used on the three phase power network:
FSA: 0.33 mm
2
FSB: 0.33 mm
2
FSC: 0.52 mm
2
FSD (1 kW): 0.82 mm
2
FSD (1.5 kW to 2 kW): 2.08 mm
2
SINAMICS V90 400 V variant
Recommended minimum cable cross-section:
FSAA and FSA: 1.5 mm
2
FSB and FSC: 2.5 mm
2
Note
For 200 V variant, when using the FSA, FSB and FSC on the single phase power network, you can connec
t the power
supply to any two connectors of L1, L2, and L3.
Assembling the line supply cable terminals
The procedure of assembling a line supply cable terminal is the same as that for a power cable terminal on the drive side.
For more information, see the SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions.

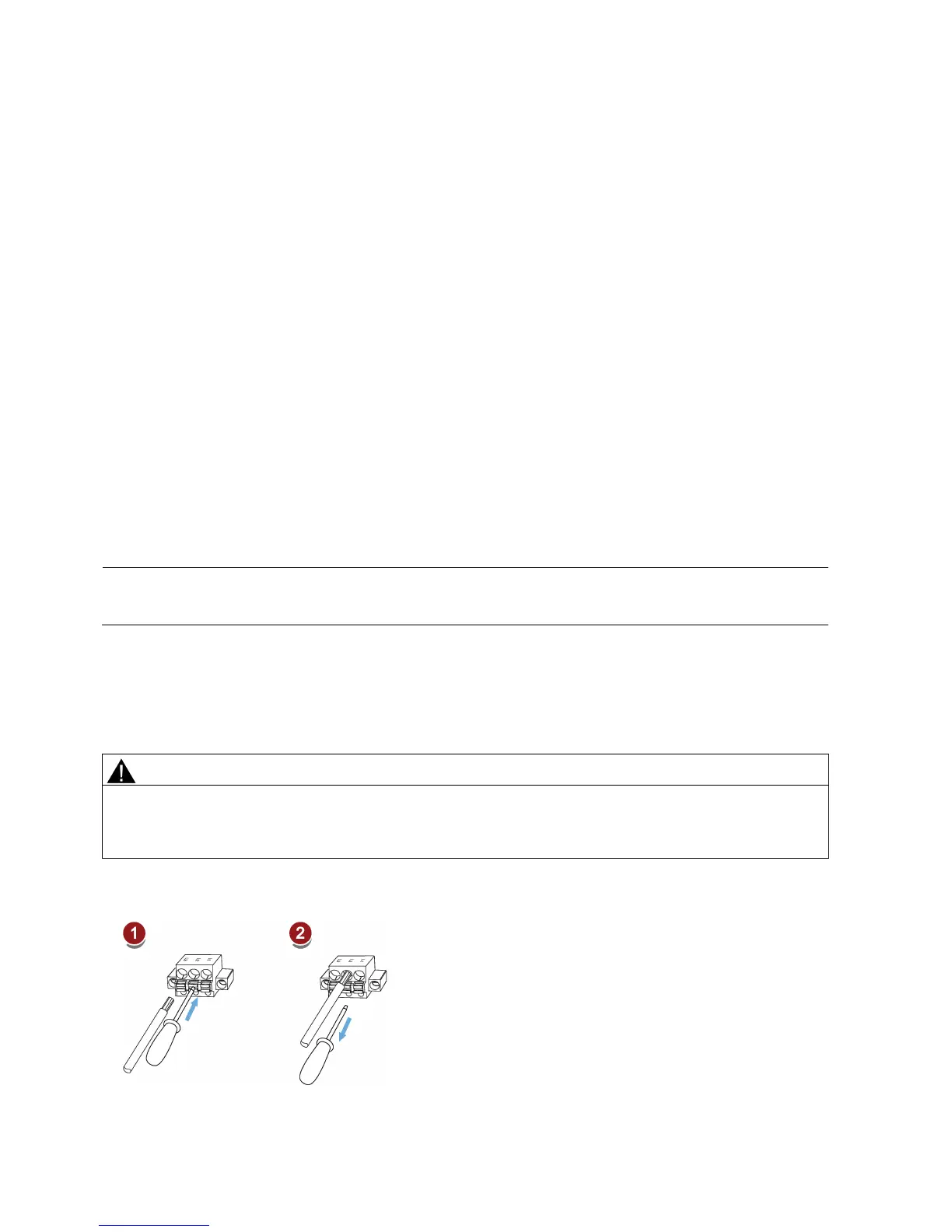

Attaching the line supply cable
CAUTION
Risk of injury due to improper cable connection
When attaching the line supply cable to a line supply connector that has not been fixed on the drive, you can injure your
fingers.
•
Make sure you first fix the line supply connector on the drive, and then attach the cable to the connector.
200 V variant
● For FSA and FSB
