Introduction to the BOP
Overview

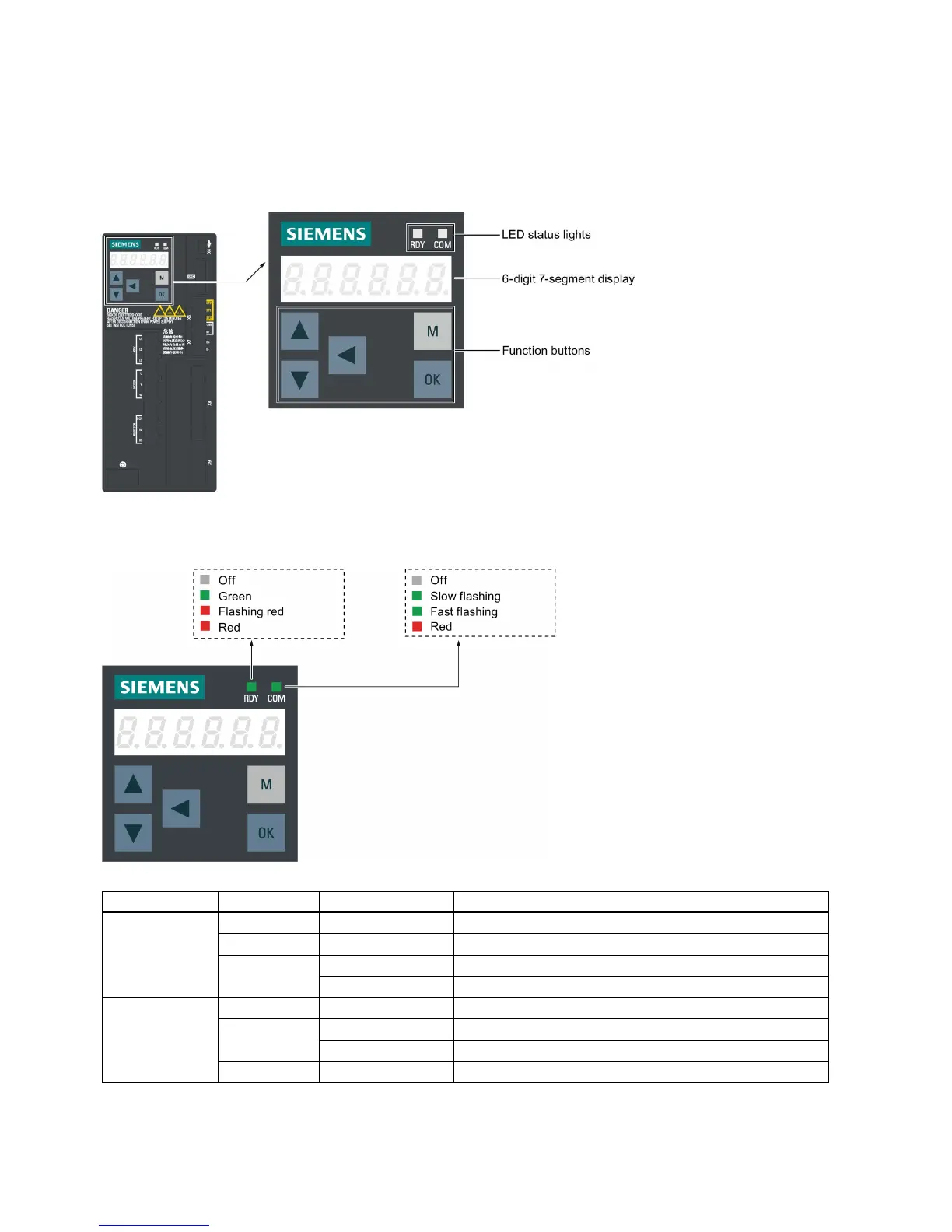

The SINAMICS V90 servo drive has been designed with a Basic Operator Panel (BOP) located on the front of the servo
drive.
Two LED status indicators (RDY and COM) are available to indicate drive status. Both LEDs are dual color (green/red).
You can find detailed information about the status indications in the table below:
24 V control board power supply is missing
The drive is in "S ON" state
The drive is in "S OFF" state or in startup state
- Off Communication with PC is not active
Green
Communication with PC is active
Micro SD card/SD card operating (read or write)
Communication with PC is in error
