4.8
RS485 interface - X12
The SINAMICS V90 servo drives support communication with the PLCs through the RS485 interface over the USS or
Modbus protocol.

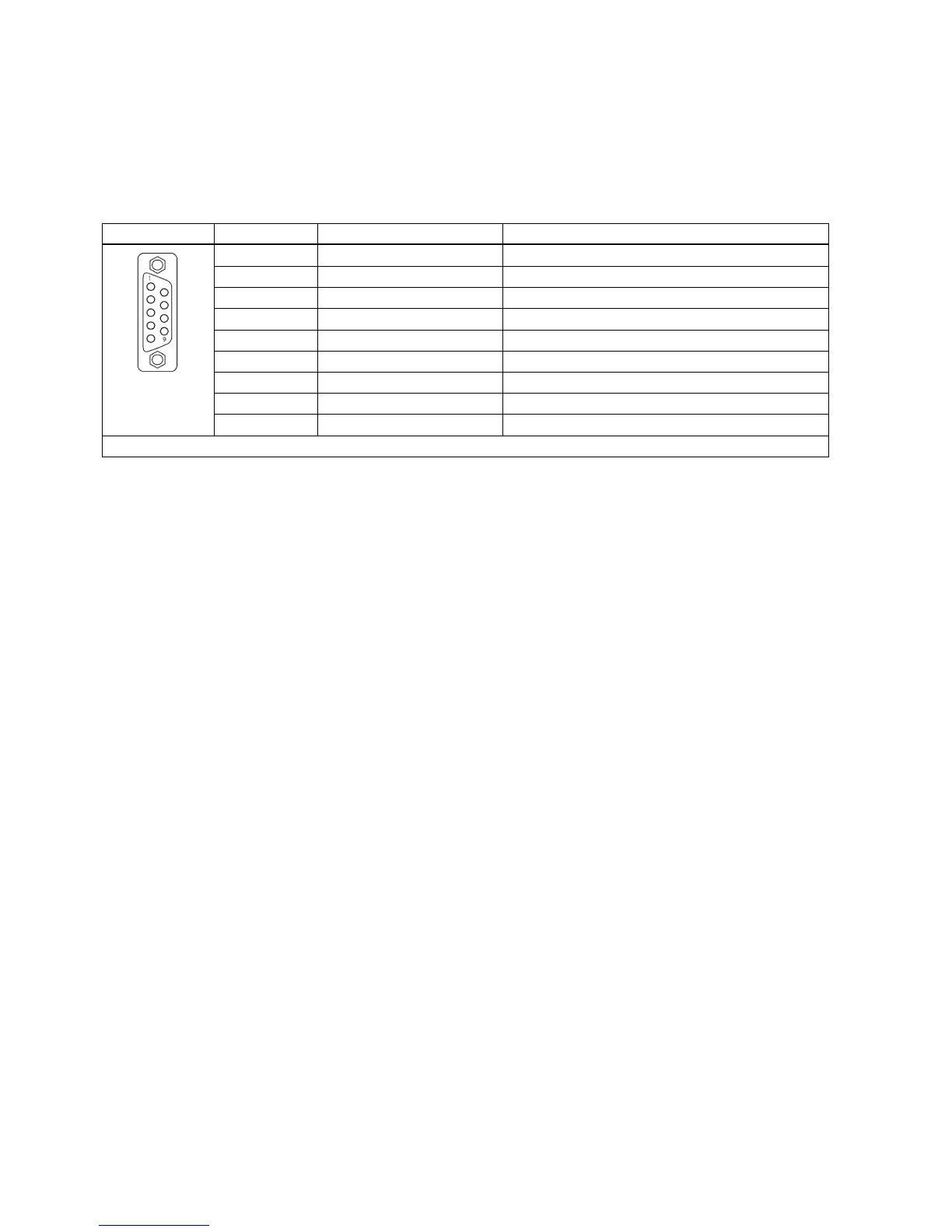

Pin assignment
Illustration
Pin
Signal name
Description
1
Reserved
Do not use
2
Reserved
Do not use
3
RS485+
RS485 differential signal
4
Reserved
Do not use
5
M
Ground to internal 3.3 V
6 3.3 V 3.3 V power supply for internal signal
7
Reserved
Do not use
8
RS485-
RS485 differential signal
9
Reserved
Do not use
Type: 9-pin, Sub-D, female
