Installing
2.3 Installing supplementary system components
SIMOTION D4x5-2
34 Commissioning and Hardware Installation Manual, 02/2012
2.3.2 Installing the CBE30-2
A second PROFINET interface can be implemented for the SIMOTION D4x5-2 DP/PN with
the CBE30-2 Ethernet communication board.
The CBE30-2 cannot be used with the SIMOTION D4x5-2 DP.
Requirement
Note
The CBE30-2 Ethernet communication board may only be inserted and removed when the
D4x5-2 DP/PN control unit and the CBE30-2 are de-energized.
Procedure
A CBE30-2 is installed in the option slot of the control unit.
8QVFUHZDQGUHPRYH
WKHSURWHFWLYHFRYHU
)L[LQJVFUHZV
01P
7RU[7
,QVHUWDQGVHFXUH
WKHRSWLRQERDUG

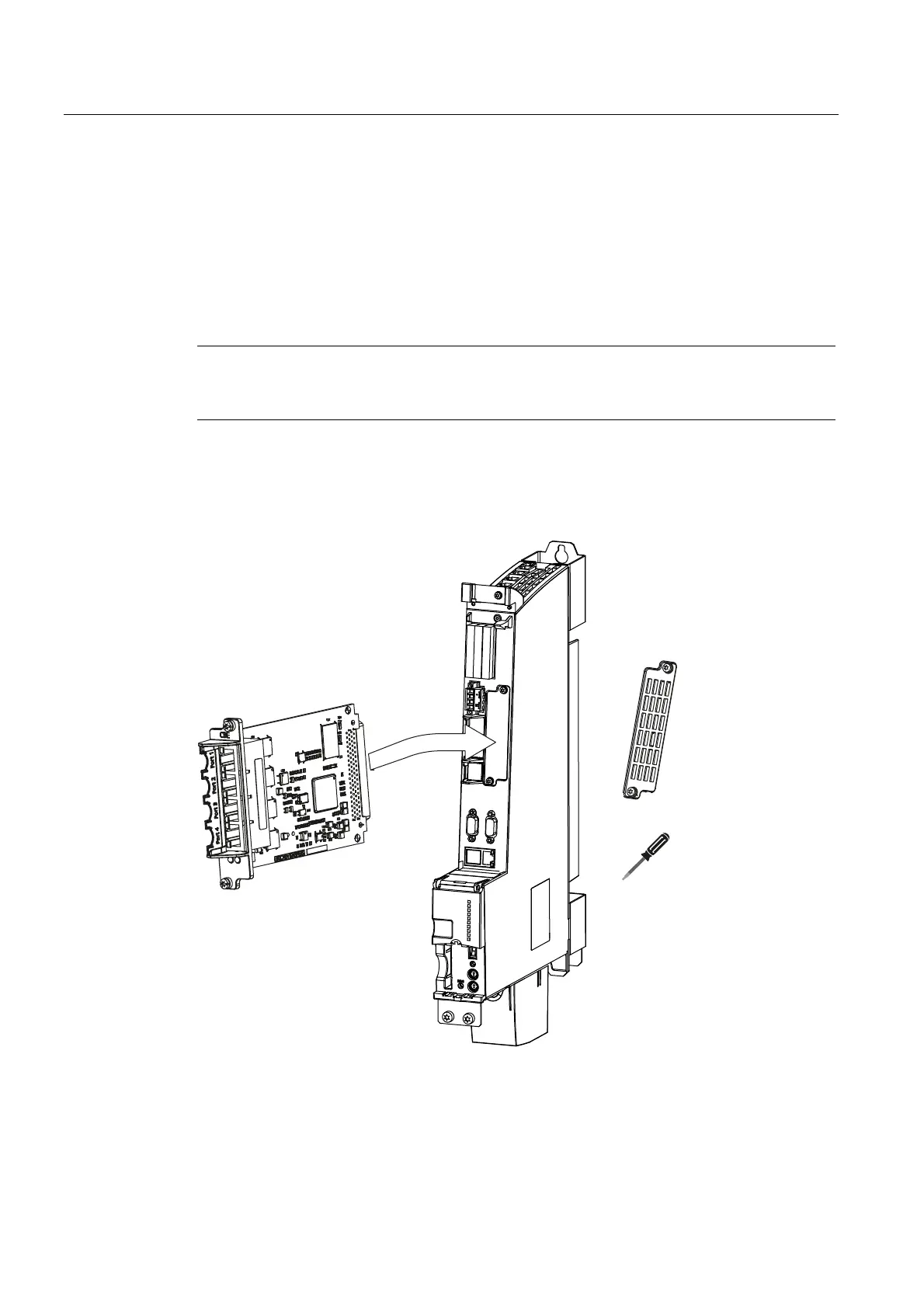

Figure 2-7 Installing the CBE30-2
