Siemens SINAMICS DCM User Manual

Additional system components
7.4 Terminal Module TM15
SINAMICS DCM DC Converter
232 Operating Instructions, 12/2018, A5E34763375A
Disassembly

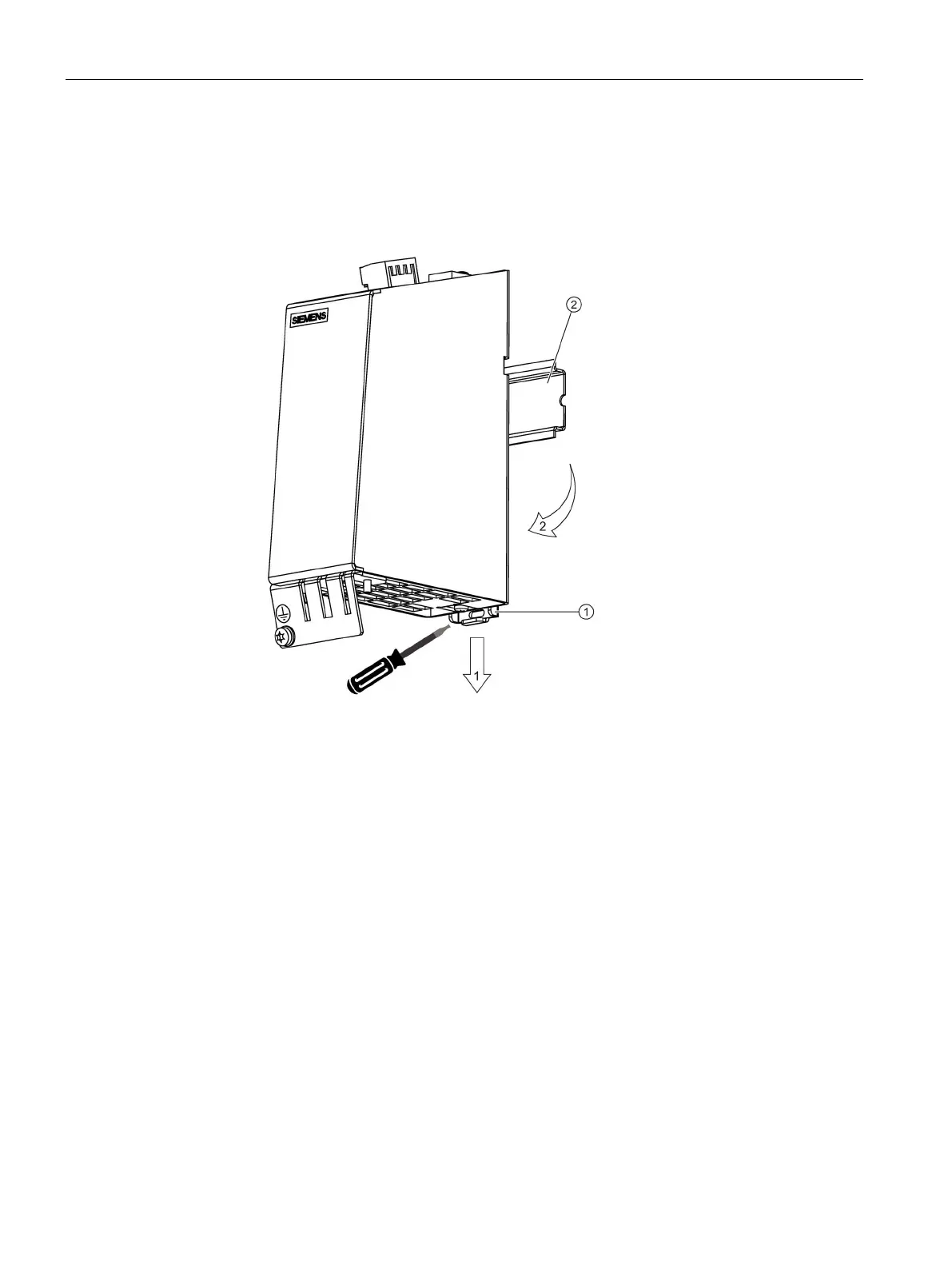

1. First shift the mounting slide downwards at the lug to release the interlocking with the
mounting rail.
2. Swivel the component to the front and withdraw it upwards from the DIN rail.
①
Mounting slide
②
Standard mounting rail
Figure 7-21 Removing from a mounting rail
