Transportation, unpacking, installation
5.2 Installation
SINAMICS DCM DC Converter
80 Operating Instructions, 12/2018, A5E34763375A
5.2.1
Dimension drawings
All dimensions in mm
Tolerance of the outer dimensions, +2 mm
Tolerance of the distances of the busbar holes for customer connections, ±1.5 mm
15 to 30 A, 4Q units

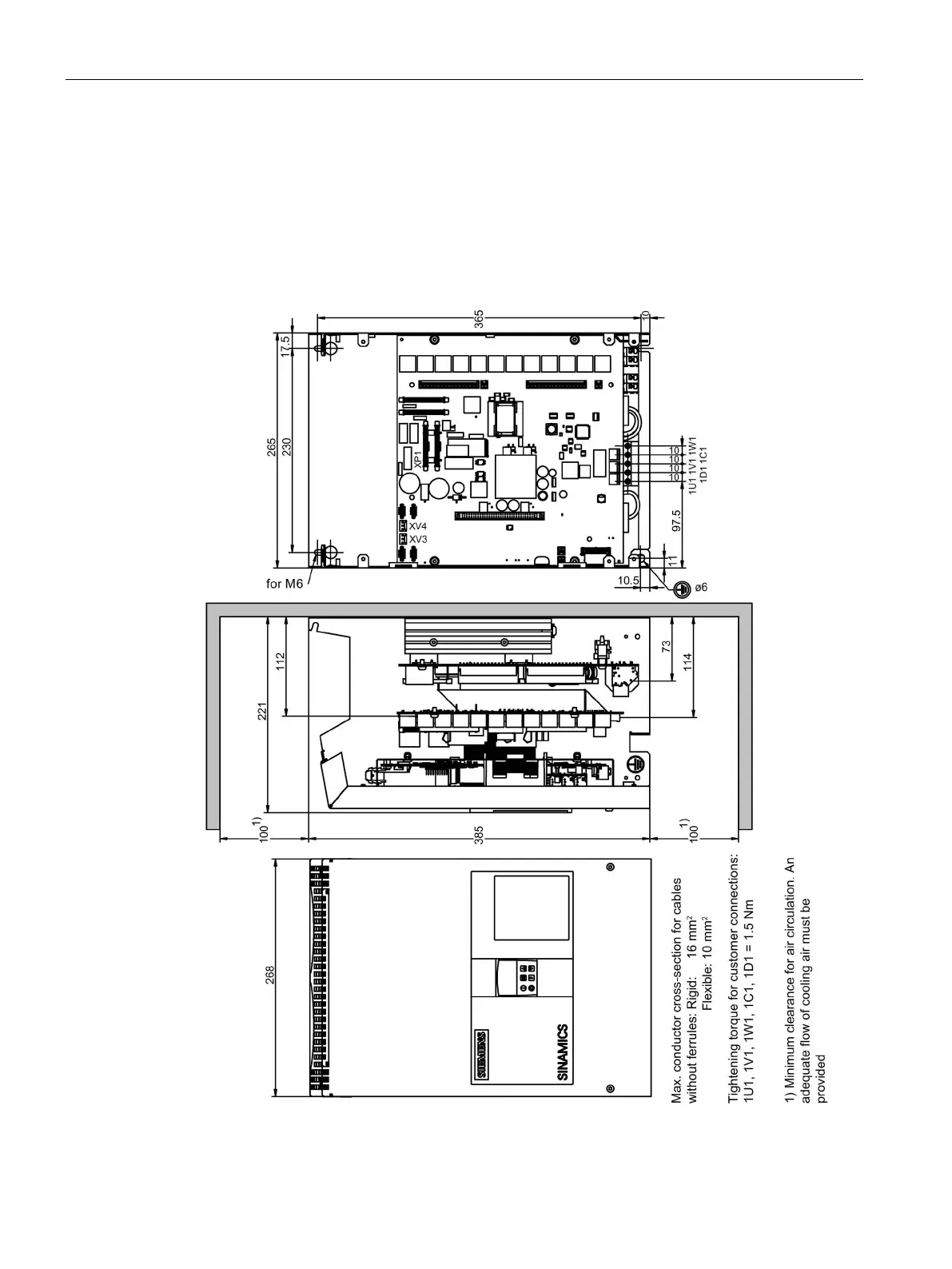

Figure 5-3 Dimension drawing, 15 A to 30 A, 4Q
