Descriptions of functions
10.34 Diagnostics
SINAMICS DCM DC Converter
642 Operating Instructions, 12/2018, A5E34763375A
Trace function
Single trace
You can use the trace function to record measured values over a defined period, depending
on trigger conditions. Alternatively, the measured values can also be recorded using
immediate recording.
In the STARTER commissioning tool you can parameterize the trace function by using the
"Trace" parameterizing screen form.
Calling the "Trace" parameterizing screen form
In the STARTER commissioning tool, click the symbol (device trace-function generator).
The "Trace" parameterizing screen form is then displayed.
Example:

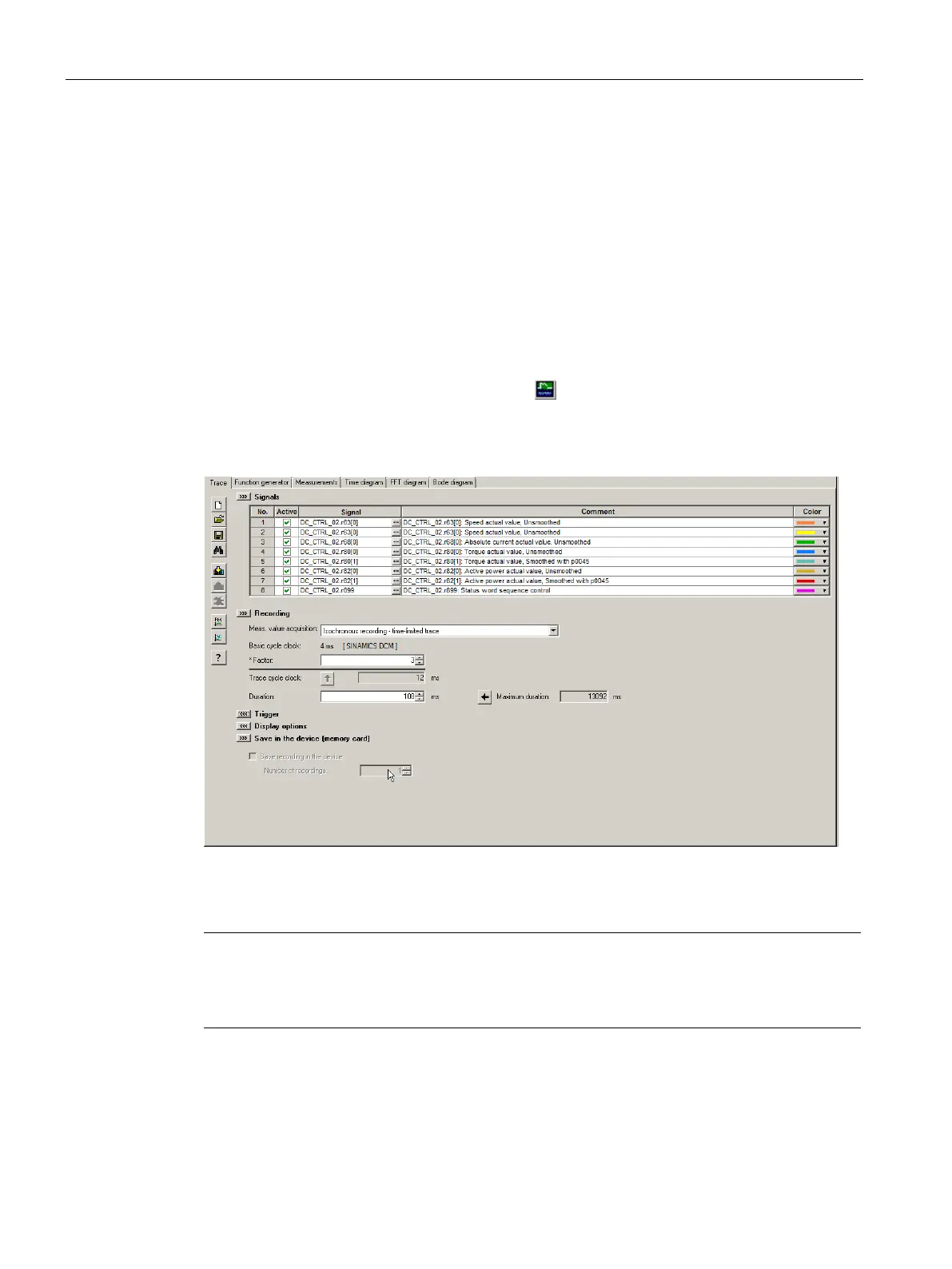

Figure 10-93 Trace function
Parameterizing and operating the trace function
Note
Detailed information on how to parameterize and operate the trace function is available in
the STARTER online help in Chapter
"Trace, measuring functions and automatic controller
".
