9.1 Basic information
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
367
9.1.5.3
Internal encoding of the binector/connector output parameters
Internal encoding is required for writing BICO input parameters via PROFIBUS, for example.

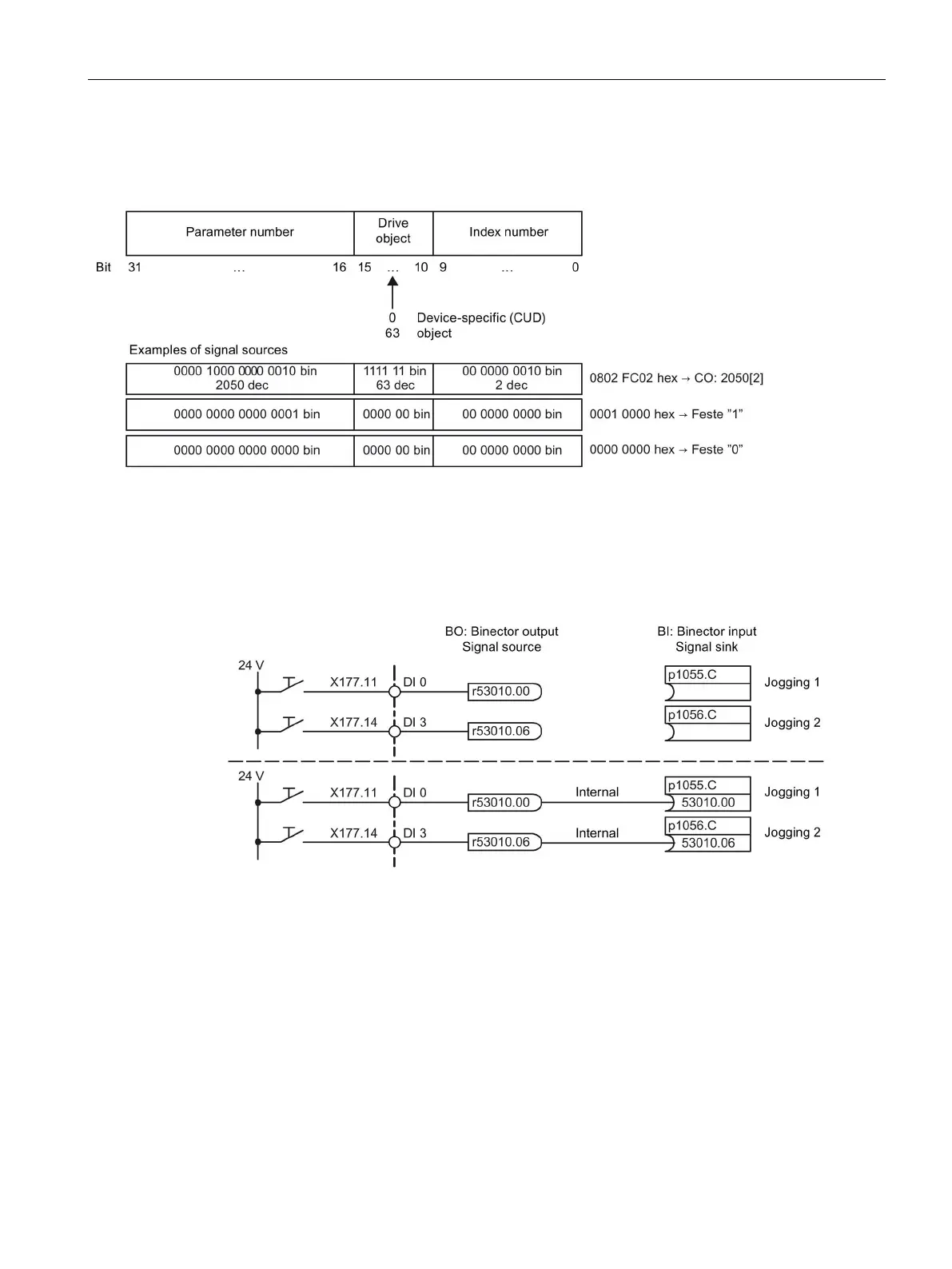

Figure 9-7 Internal encoding of the binector/connector output parameters
9.1.5.4
Example: Interconnecting digital signals
Suppose you want to operate a drive via terminals DI 0 and DI 3 on the CUD using jog 1 and
jog 2.
Figure 9-8 Interconnecting digital signals (example)
