Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
4-1
Protection zones
4
4.1 4.1 Definition of the protection zones (CPROTDEF, NPROTDEF)
Function

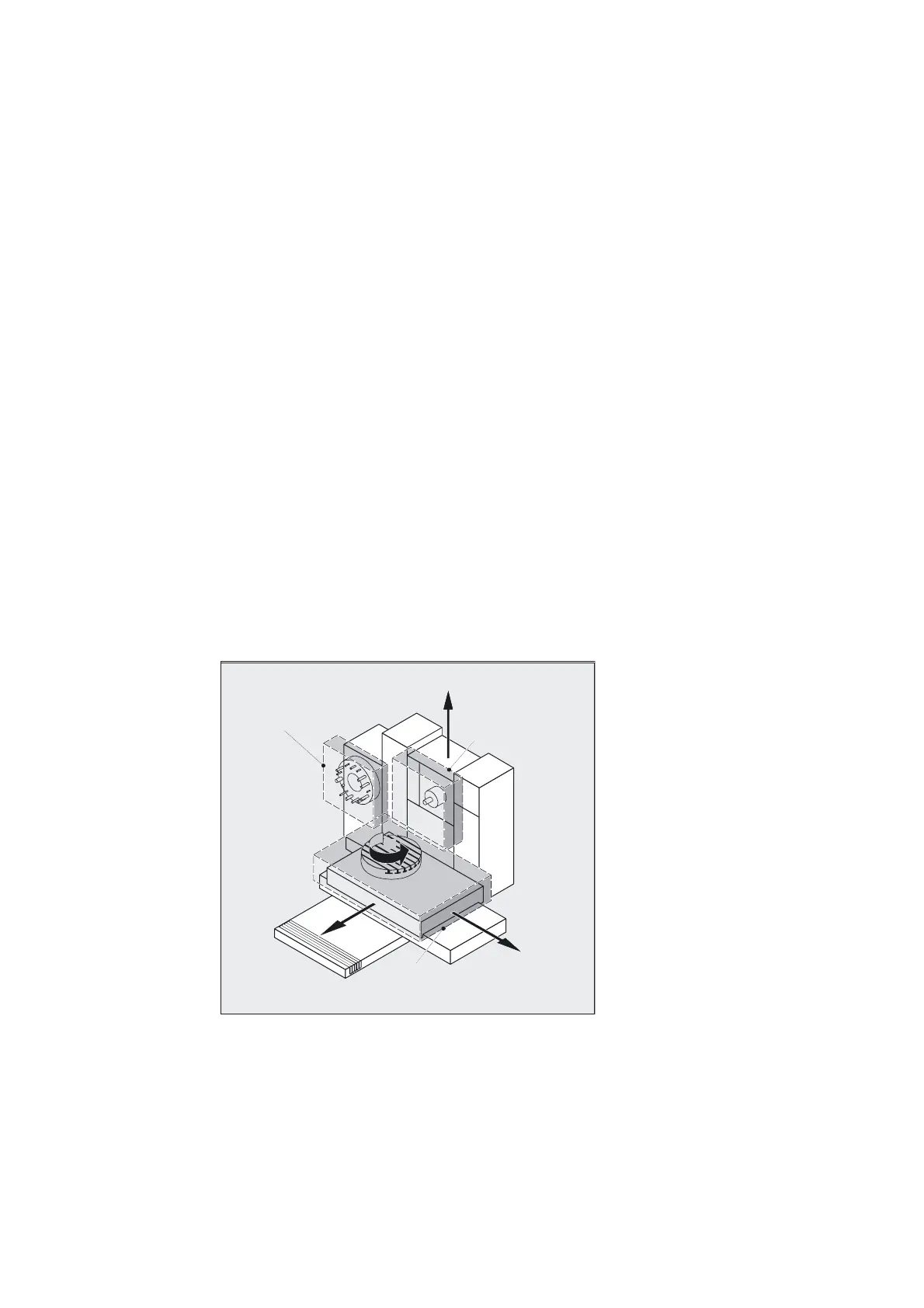

You can use protection zones to protect various elements on the machine, their components
and the workpiece against incorrect movements.
Tool-oriented protection zones:
For parts that belong to the tool (e.g. tool, toolholder)
Workpiece-oriented protection zones:
For parts that belong to the workpiece (e.g. parts of the workpiece, clamping table, clamping
shoe, spindle chuck, tailstock).
7RROUHODWHG
SURWHFWLRQ]RQH
7RROUHODWHG
SURWHFWLRQ]RQH
:RUNSLHFHUHODWHG
SURWHFWLRQ]RQH
%
;
<
=
Programming
DEF INT NOT_USED
CPROTDEF(n,t,applim,appplus,appminus)
NPROTDEF(n,t,applim,applus,appminus)
