Path traversing behavior
9.3 Curve tables (CTAB)
Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
9-13
9.3.2 Principal functions curve tables (CTABDEF, CTABEND, CTABDEL)
Function
You can use curve tables to program position and velocity relationships between two axes.
Curve tables are defined in a parts program.

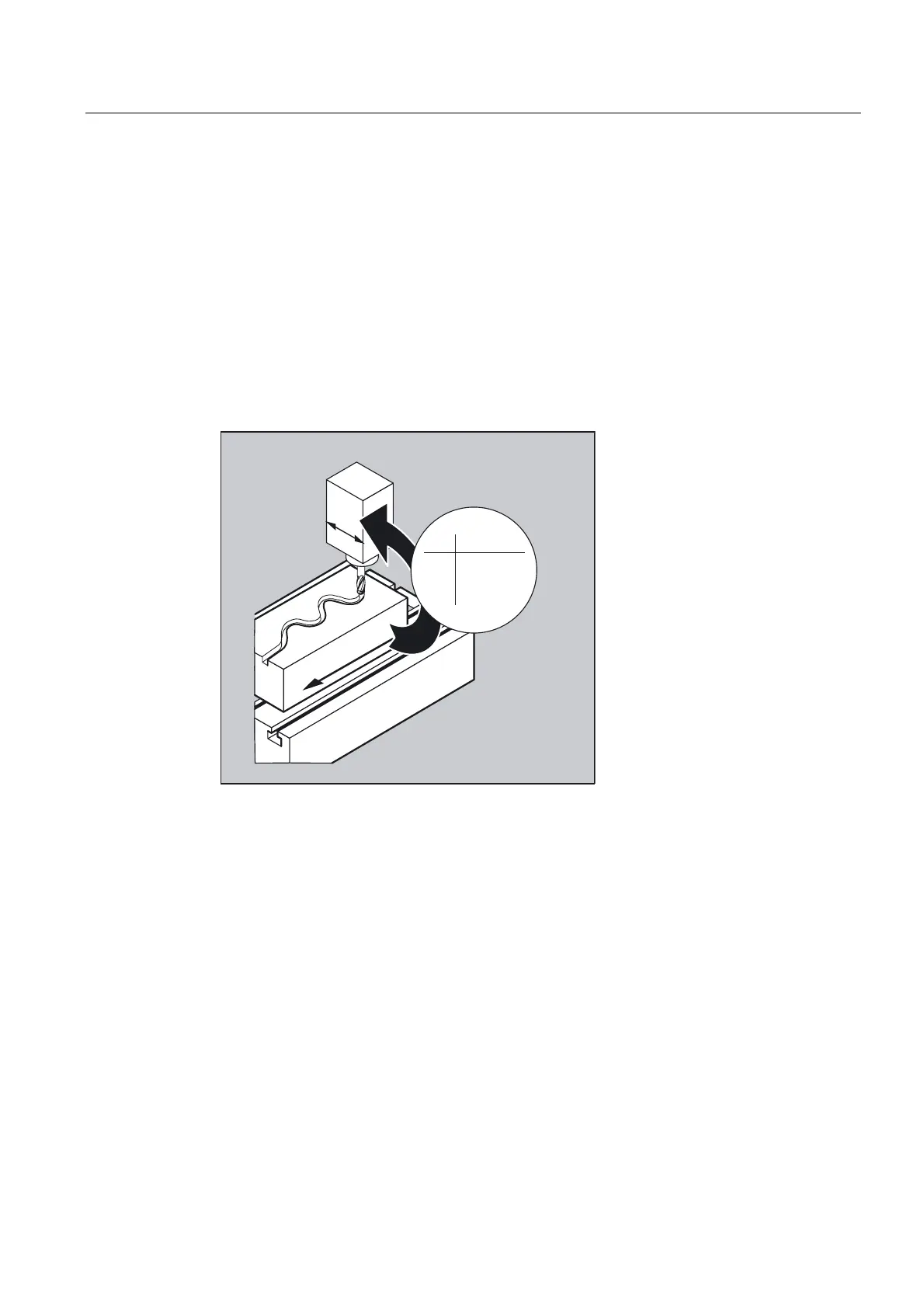

Example of substitution of mechanical cam:
The curve table forms the basis for the axial master value coupling by creating the functional
relationship between the leading and the following value:
With appropriate programming, the control calculates a polynomial that corresponds to the
cam from the relative positions of the leading and following axes.

D

D

[
D

D

D

[


[\
<
;
Programming
Modal language commands with curve tables
CTABDEF(FAxis, LAxis, n, applim, memType)
or
CTABEND ()
or
CTABDEL(), CTABDEL(, ,memType)
