Tool offsets
8.5 Activate 3D tool offsets (CUT3DC..., CUT3DF...)
Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
8-19
8.5.3 Tool types/tool change with changed dimensions (G40, G41, G42)
Function
Mill shapes, tool data

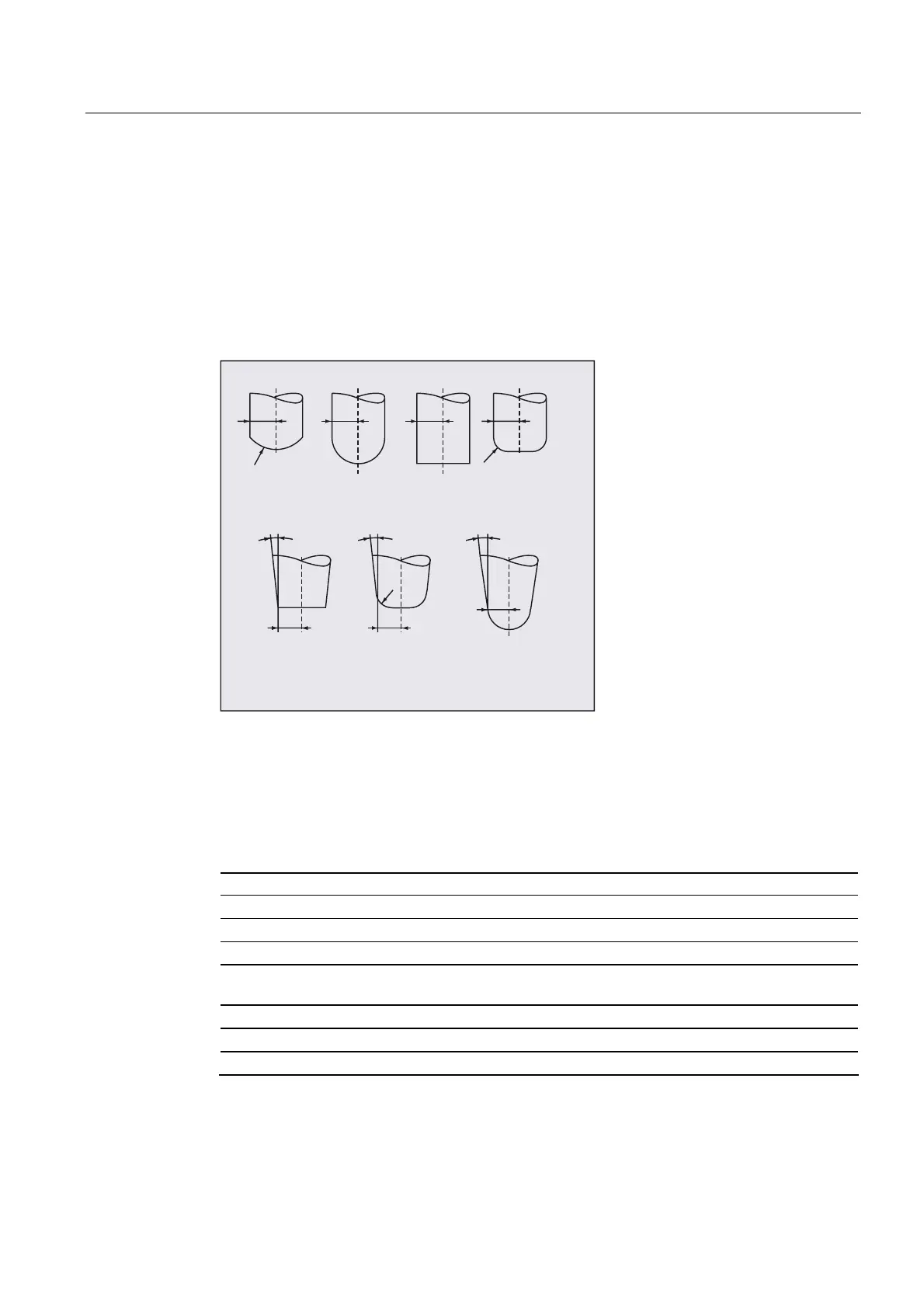

The table below gives an overview of the tool shapes, which may be used in face milling
operations, as well as tool data limit values. The shape of the tool shaft is not taken into
consideration - the tools 120 and 156 are identical in their effect.
D
5
U
D
5
D
5
U
55
5
U
5
&\OLQGU
GLHPLOO
7\SH
%DOOKHDG
FXWWHU
7\SH
(QGPLOO
7\SH
(QGPLOOZLWK
FRUQHUURXQGLQJ
7\SH
%HYHOFXWWHU
7\SH
%HYHOFXWWHUZLWK
FRUQHUURXQGLQJ
7\SH
7DSHUHGGLHVLQNLQJFXWWHU
7\SH
If a different type number is used in the NC program than the one listed in the table, the
system automatically uses tool type 110 die-sinking cutter. An alarm is output if the tool data
limit values are violated.
Parameters
Cutter type Type No. R r a
Cylindrical die mill 110 >0 X X
Ball end mill 111 >0 >R X
End mill, angle head cutter 120, 130 >0 X X
End mill, angle head cutter with corner
rounding
121, 131 >r >0 X
Bevel cutter 155 >0 X >0
Bevel cutter with corner rounding 156 >0 >0 >0
Tapered die-sinking cutter 157 >0 X >0
