7.8 7.8 Kinematic transformation
7.8.1 Milling on turned parts (TRANSMIT)
Function

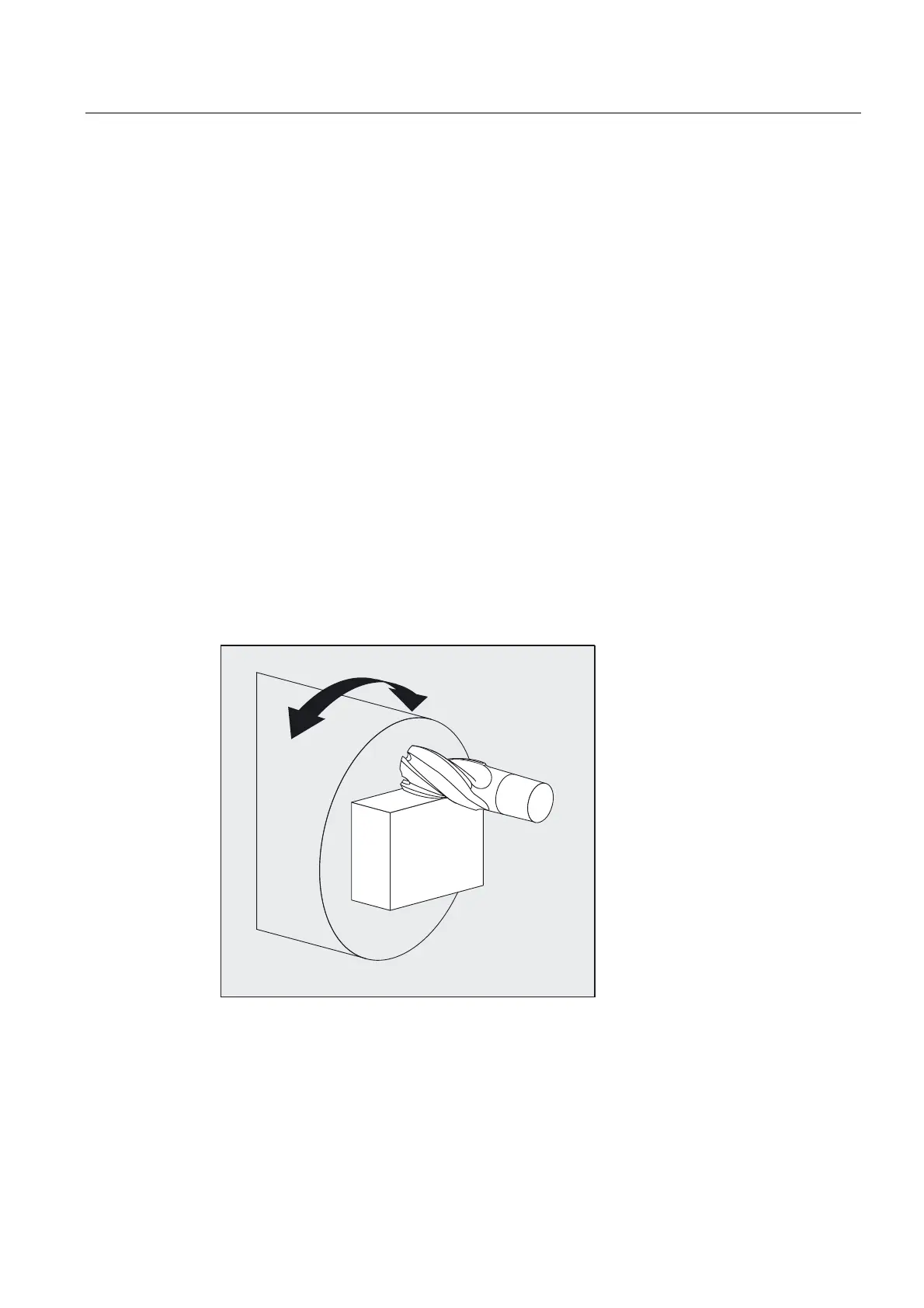

The TRANSMIT function enables the following:
• Face machining on turned parts in the turning clamp (drill-holes, contours).
• A cartesian coordinate system can be used to program these machining operations.
• The control maps the programmed traversing movements of the Cartesian coordinate
system onto the traversing movements of the real machine axes (standard situation):
– Rotary axis
– Infeed axis perpendicular to rotary axis
– Longitudinal axis parallel to rotary axis
– The linear axes are positioned perpendicular to one another.
• A tool center offset relative to the turning center is permitted.
• The velocity control makes allowance for the limits defined for the rotations.
