08.96 1 Introduction
1.4 Calibrating tool, workpiece probe in the TOA memory
1.4 Calibrating tool, workpiece probe in the TOA memory
1.4.1 Assignment of calibrating tool in the TOA memory for turning
machines
On turning machines, the calibrating tool is treated same as a tool type 3 and, therefore, must
be input in the TOA memory as such.

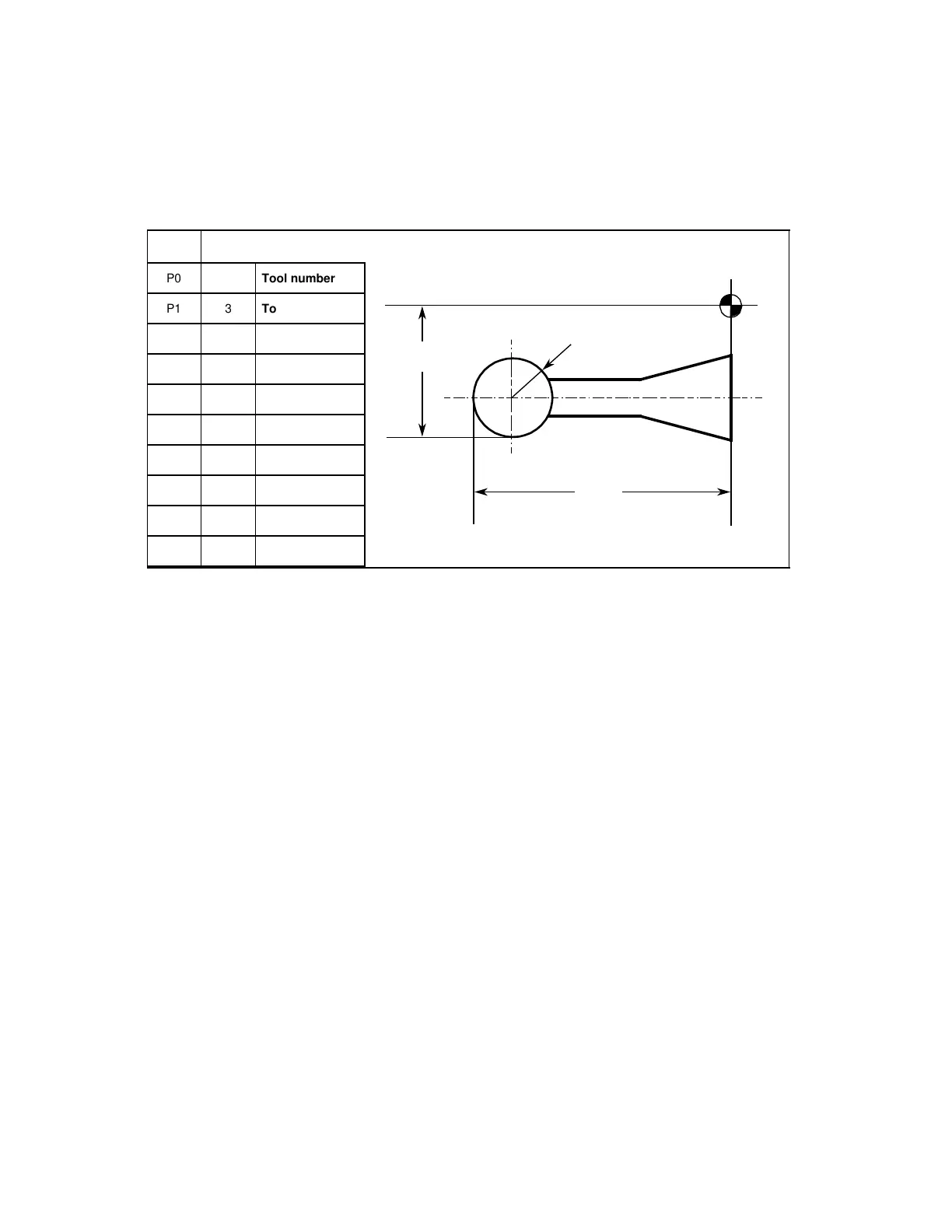

Fig. 1.8 Calibrating tool in the TOA memory for turning machines
F
r
L1
a a a
a a a
a a a
a a a
a a a
a a a
P0 Tool number
P1 3 Tool type
P2 L1 L1 Geometry
P3 L2 L2 Geometry
P4 r Diameter/radius
P5 0 L1 Wear
P6 0 L2 Wear
P7 0 Diameter/radius
P8 0 Base (add. TO)
P9 0 Base (add. TO)
Dn
L2
© Siemens AG 1990 All Rights Reserved 6FC5197- AB70 1–9
SINUMERIK 840/850/880 (BN)
