Functions
2.17 Additional Functions
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
243

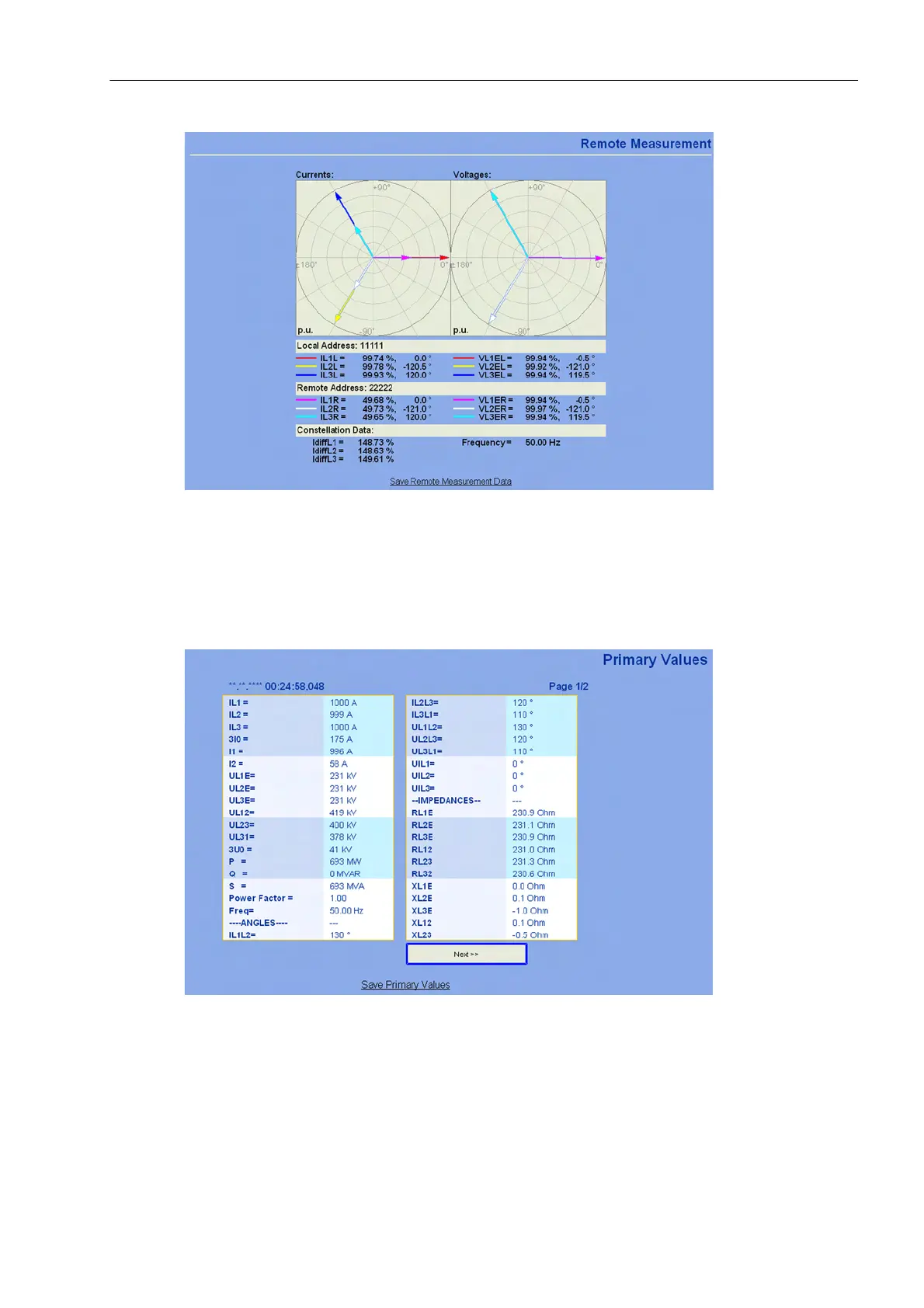

Figure 2-112 WEB-Monitor – Example of voltages and currents
Furthermore, the browser enables a clear display of the most important measured data. The measured values
list can be selected from the navigation toolbar separately for the local and the remote device. In each case a
list with the desired information is displayed (see Figures 2-112 and 2-114).
Figure 2-113 Local measured values in the WEB-Monitor — Examples for measured values
