Appendix
A.2 Terminal Assignments
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
378
A.2.2 Housing for panel surface mounting
7SD610*-*F

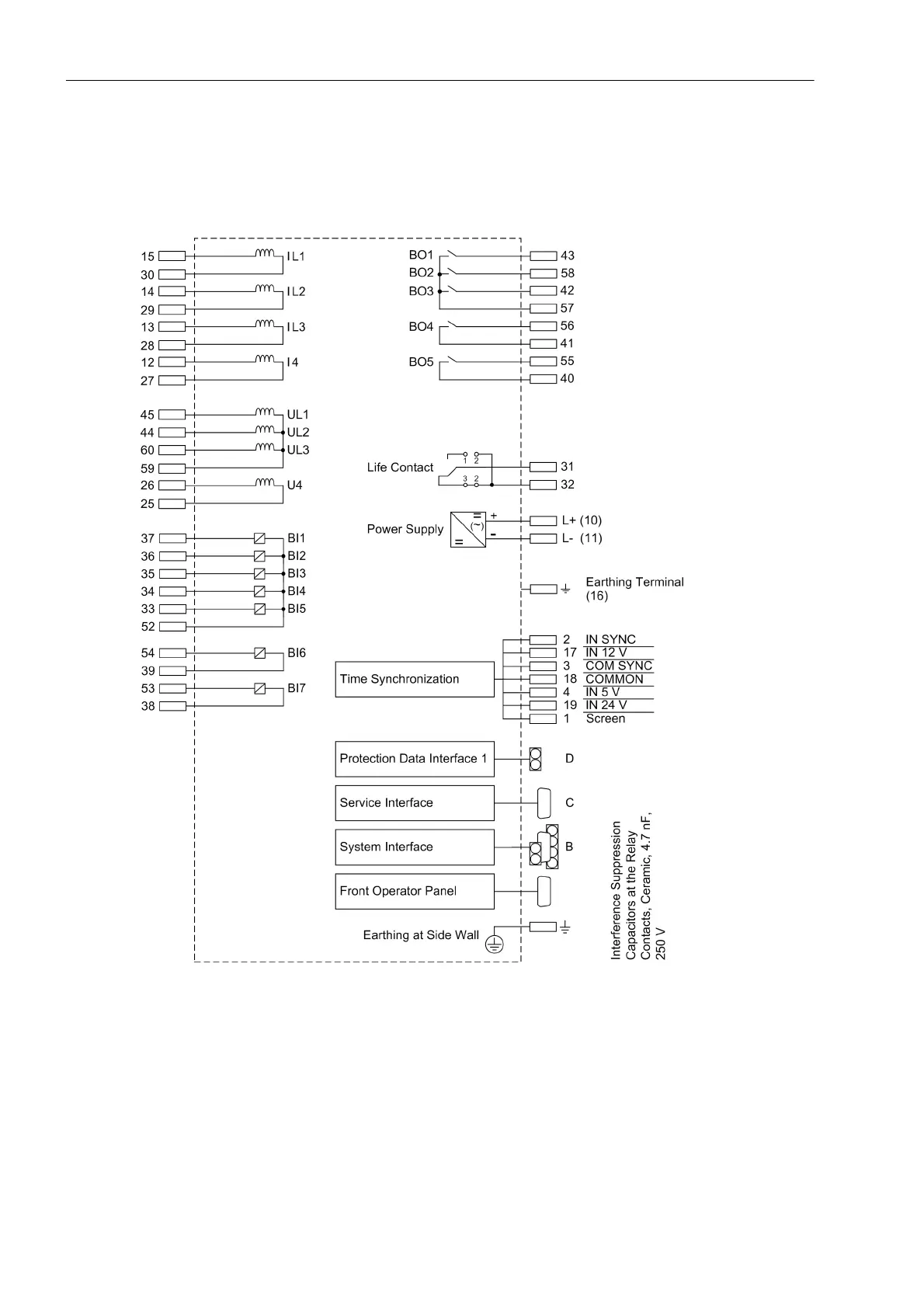

Figure A-2 Connection diagram for 7SD610*-*F (panel surface mounted)
