Technical Data
4.17 Dimensions
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
367
4.17 Dimensions
4.17.1 Housing for Panel Flush Mounting or Cubicle Installation

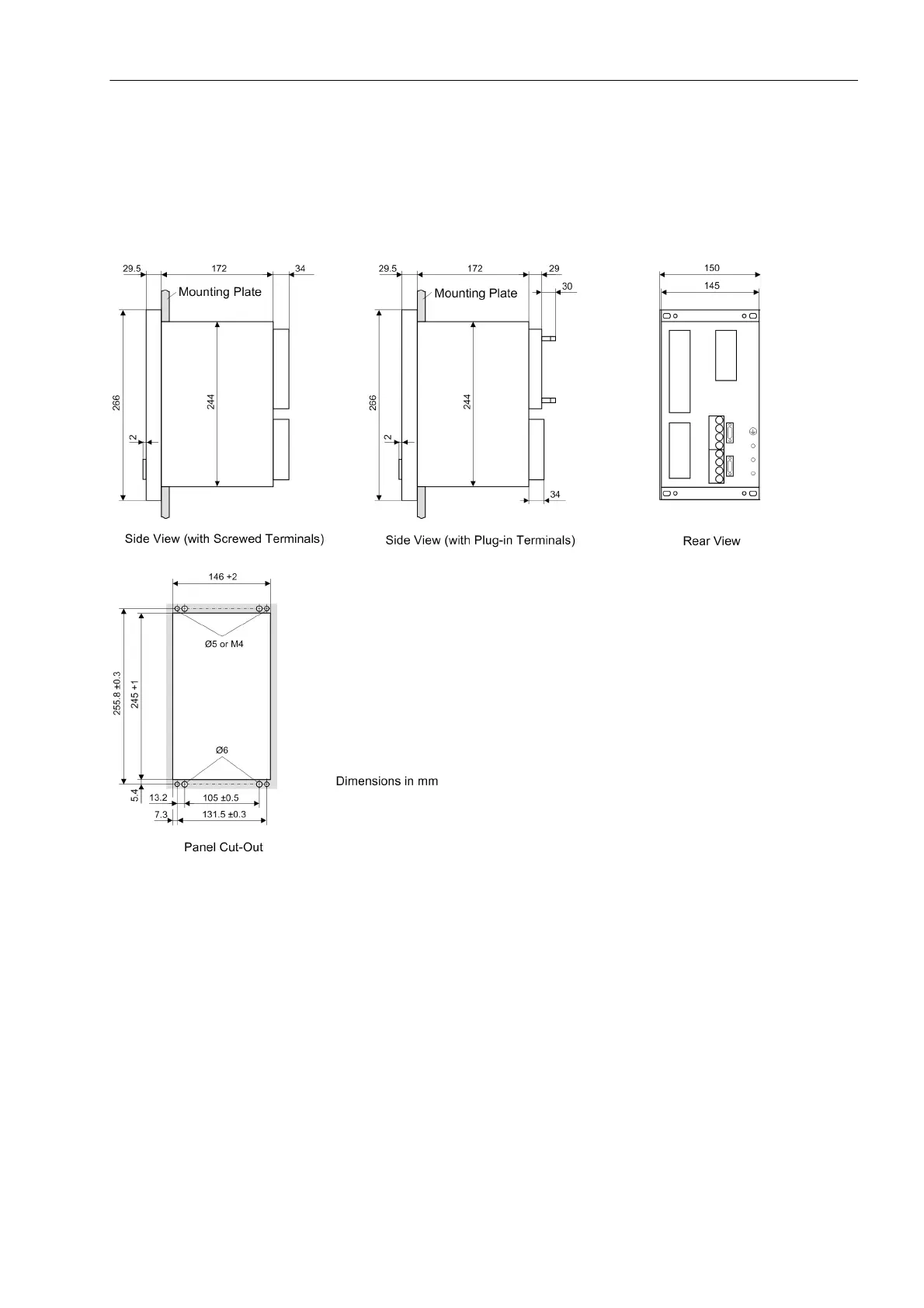

Figure 4-6 Dimensions of a device for panel flush mounting or cubicle installation (size
1
/
3
)
