Functions
2.23 Auxiliary Functions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
366
2.23.10.2 Functions
Basic Functionality
Basic functionality means the functions that are generally available, i.e. not device-dependent.
These comprise:
• Device Control
• Messages
• Fault Records
• Measurement Overview
• Diagnostics
• Device File System
•CFC
A description of these functions is provided in the Online Help of DIGSI as from Version V4.60.

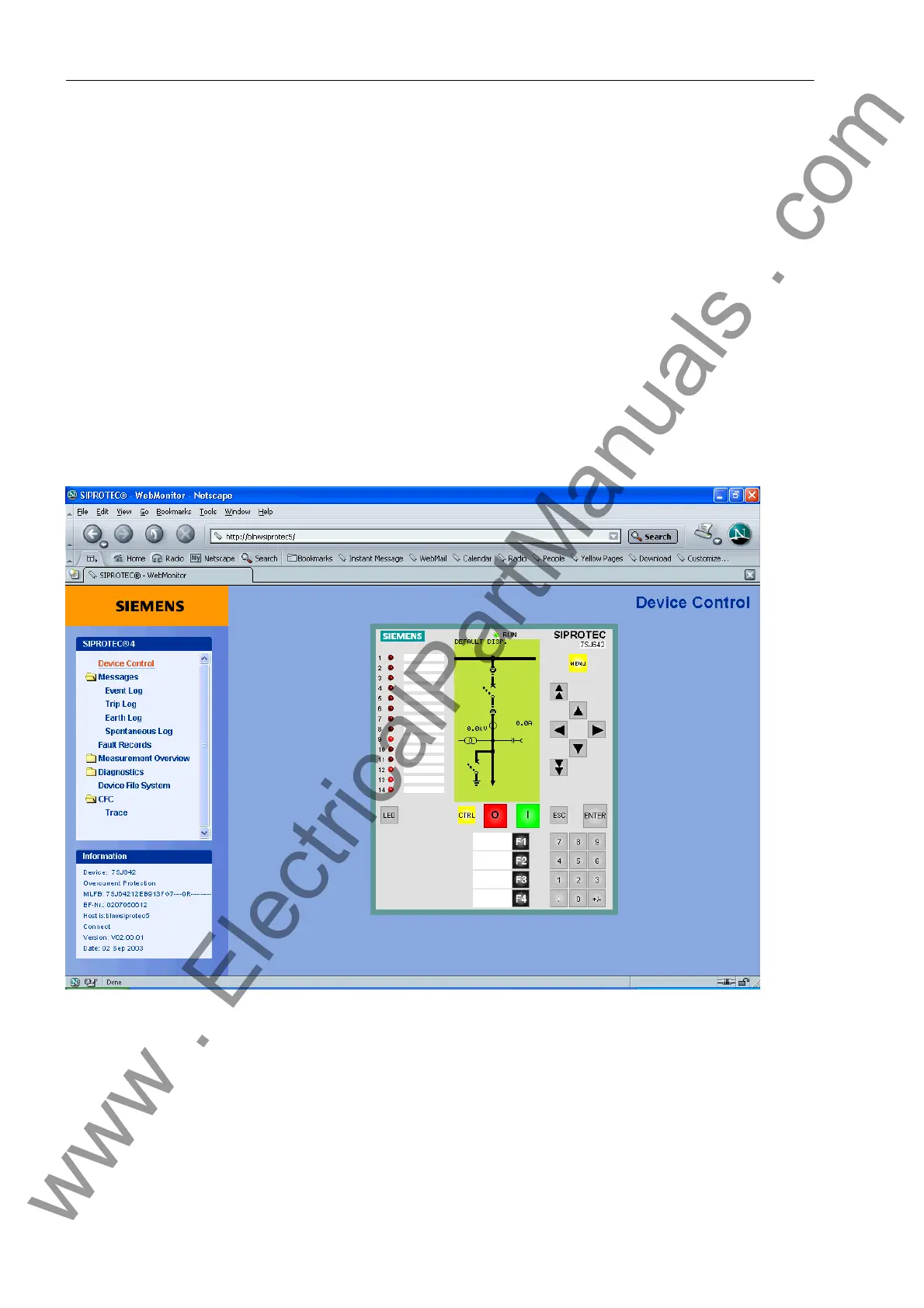

Figure 2-135 Web-Monitor Default Display
The above figure of the device operation view shows a device connected through the data transmission link
with its control (keyboard) and display elements (display, LEDs, inscriptions). The device can be operated with
the keys shown in the display in the same way as with the sealed keypad on the device.
