Appendix
A.2 Terminal Assignments
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release da
te 01.2008
561
A.2
T
erminal Assignment
s
A.2.1
7SJ62 — Housing for panel flus
h mounting or cubicle inst
allation
7SJ621*-*D/E
Figure
A-1

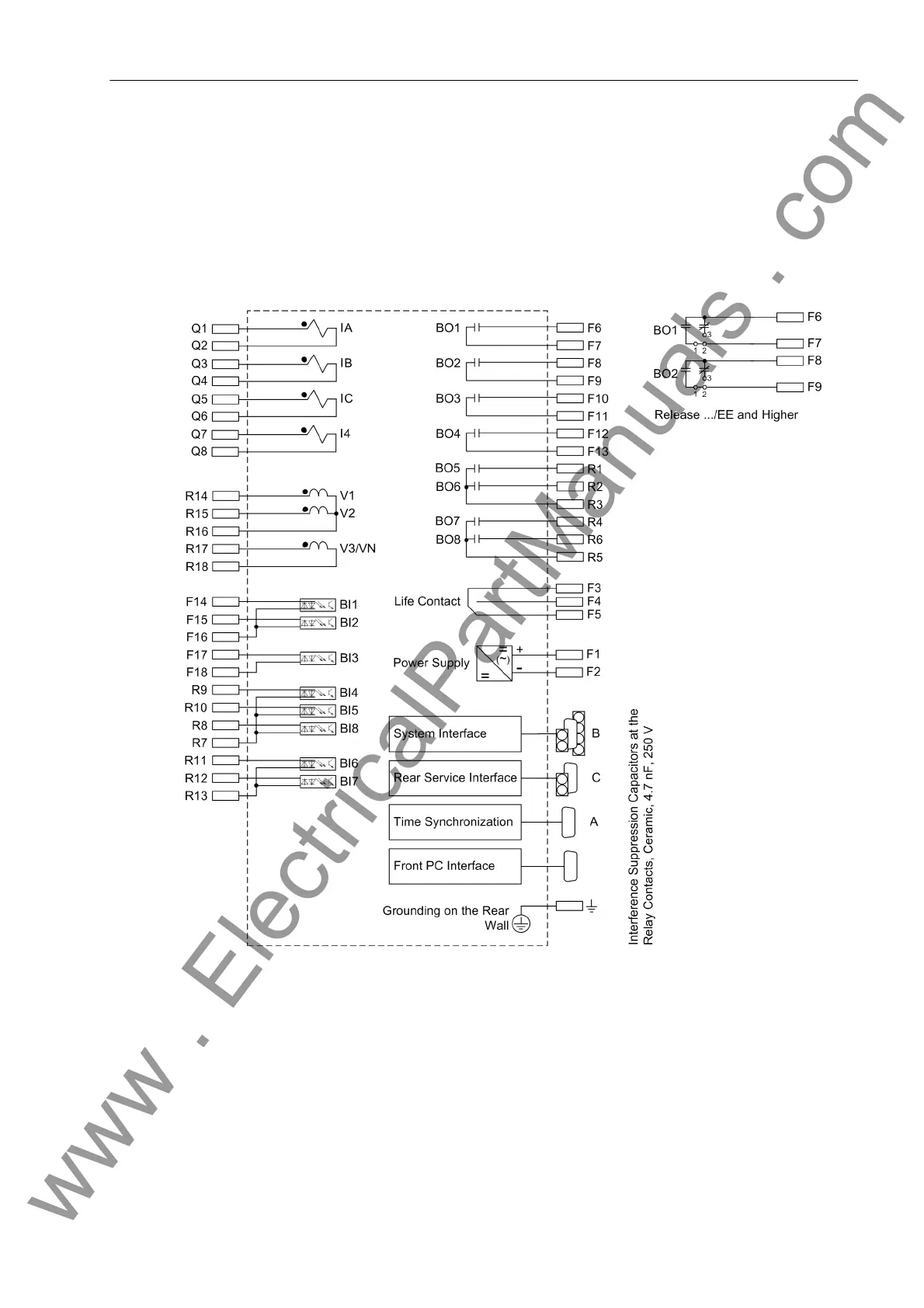

General diagram for 7SJ621*–*D/E (panel flush mounting or cubicle mounting)
