A5E32106153 SITRANS Probe LR – QUICK START MANUAL Page EN-11
mmmmm
English
2. Set P001: Operation (measurement mode)
Notes:
• Setting P001 resets Span (P007), unless Span has previously been set to a different value.
• Changing P001 may reset Output Function (P201): this applies to HART only.
Value
1*
Level returns distance to material level referenced from Empty (process empty level). The
reading is returned in volumetric units if parameters 050 to 055 are set to enable this.
2
Space returns distance to material level referenced from Span (process full level).
3
Distance returns distance to material level from reference point.
Level
(P001 = 1)
Space
(P001 = 2)
Distance
(P001 = 3)
Distance
Space
Level
P007
P006
100%
(20 mA)
(20 mA)
100%
0%
(4 mA)
(4 mA)
0%
100%
(20 mA)
(4 mA)
0%
Empty
Span
Span
Empty
Span
Empty

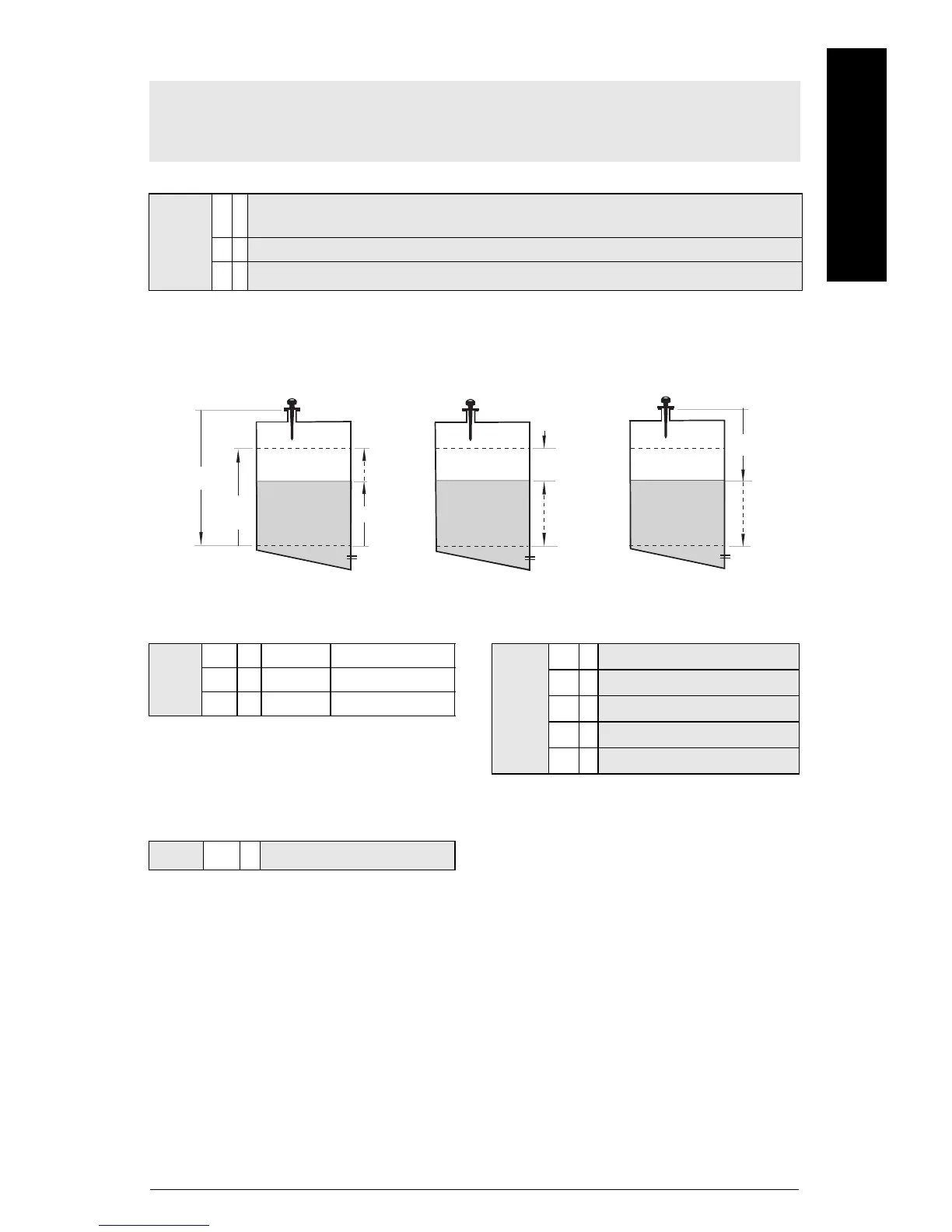

mA Output with Level, Space, and Distance operation
reference
point
3. Set P003: Measurement Response
Set P003 to a measurement response speed
just faster than the maximum filling or
emptying rate (whichever is greater).
(P004 - view only)
4. Select measurement units (P005)
Value
1* slow 0.1m/minute
2 medium 1m/minute
3 fast 10m/minute
Value 240 *
rod antenna
Value
1*
meters
2
centimeters
3
millimeters
4
feet
5
inches
