– Slide the corrugated tube assembly pliers in the slit along
the corrugated tube. The optical fibre is then inserted into
the corrugated tube.
5.3 Removing and installing optical fibre in
the housing
Removing
– Disconnect the connectors for the optical fibre from the ap‐
plicable control unit.

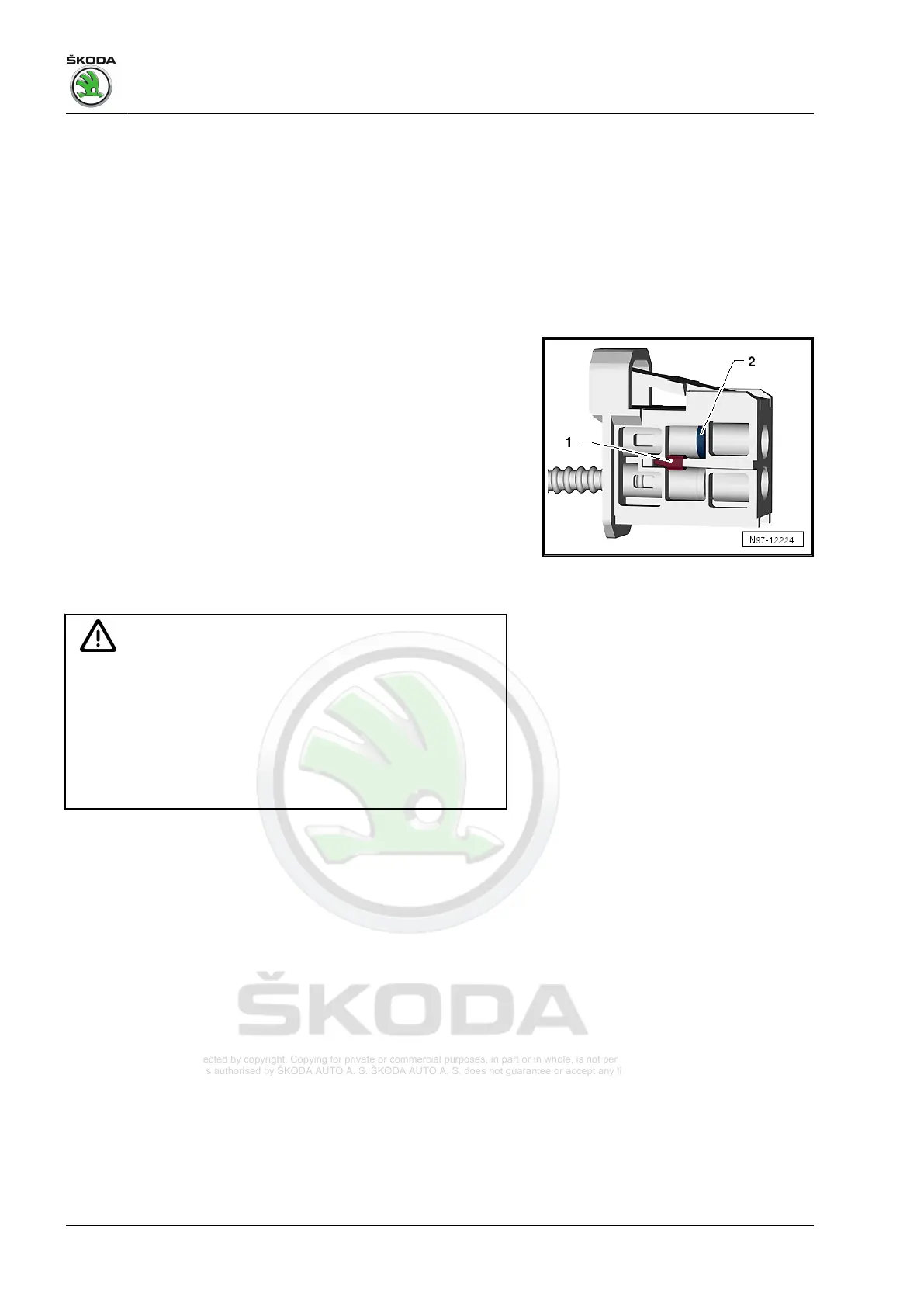

– Unlock the lock in the optical fibre connector -1- by pressing.
– Unlock the secondary lock -2- with a small screwdriver and
remove the optical fibre.
Caution
♦ Use protective caps from the optical fibre repair set -
VAS 6223B- to protect the optical fibre against dust and
dirt.
♦ Use a new housing, as the secondary lock can be dam‐
aged when removing the optical fibre.
♦ Observe the arrows on the base module for the correct
“IN” and “OUT” assignment.
Installing
Installation is performed in the reverse order, pay attention to
the following points:
– Install the optical fibre as per the markings.
– Slide the corrugated tube into the connector housing until it
audibly locks into place.
– Close the open connector -2- for the optical fibre with the
protective cap -1- from the optical fibre repair set -VAS
6223B-.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
102 Rep. gr.97 - Wiring
