Note

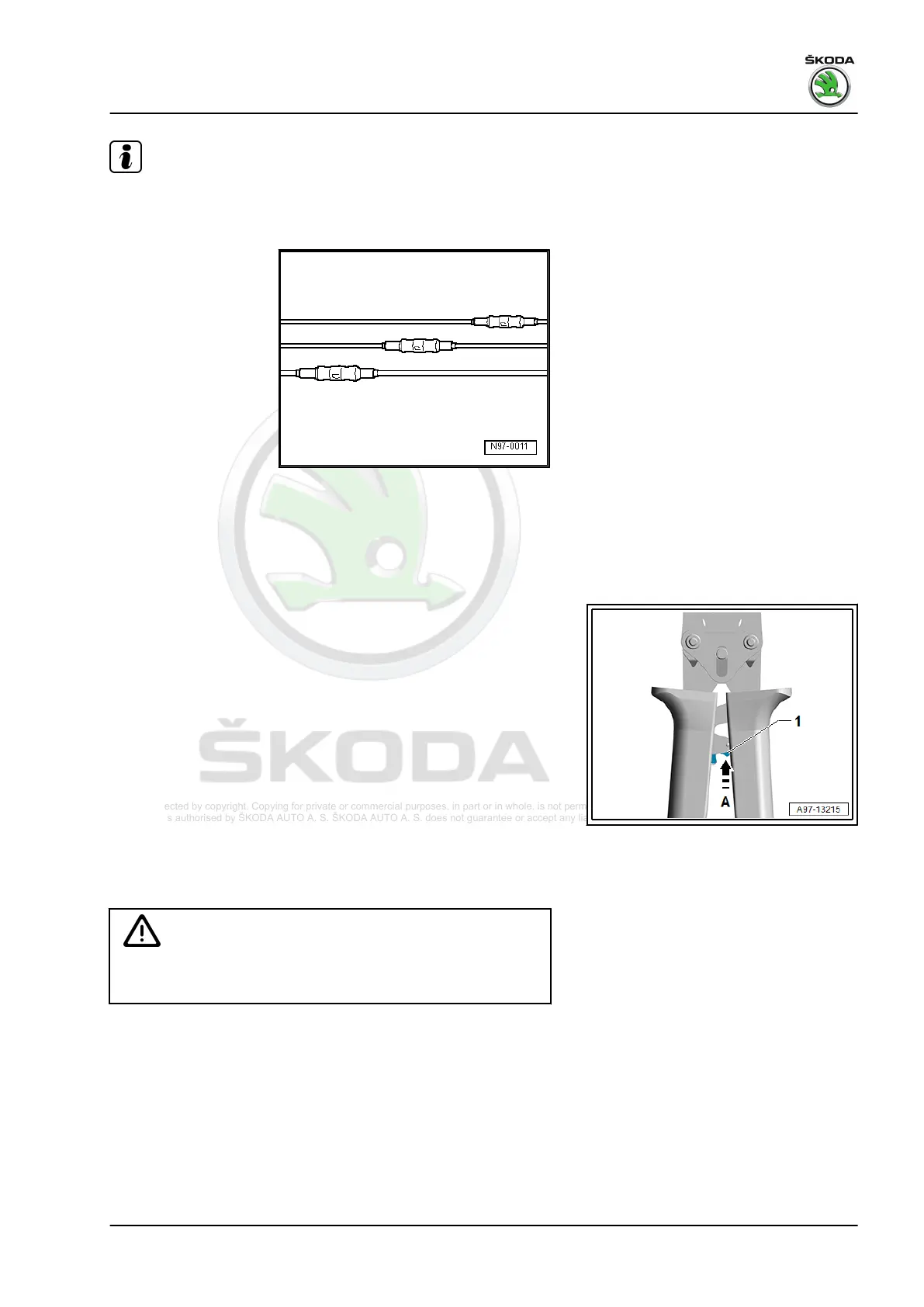

Ensure that the crimp connectors are not positioned immediate‐
ly next to each other if there are multiple wires to be repaired.
Arrange the crimp connectors slightly offset to ensure that the
wiring loom does not become too big.
♦
If the repair point has been wrapped previously, the point
must be re-wrapped with yellow adhesive tape after repair.
♦
Attach the repaired wiring loom, in necessary, with a cable
strap to avoid rattling when driving.
Premature unlocking
– Push down the release lever -1- in direction of arrow -A-.
– Push the crimping tool together slightly and then open it at
the same time.
Caution
♦ Do not use the crimp connector after premature unlock‐
ing.
2.8
Repair a 10 mm
2
- or 16 mm
2
cable with
an individual joint butt splice connector
Special tools and workshop equipment required
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
2. Wiring harness repair 59
