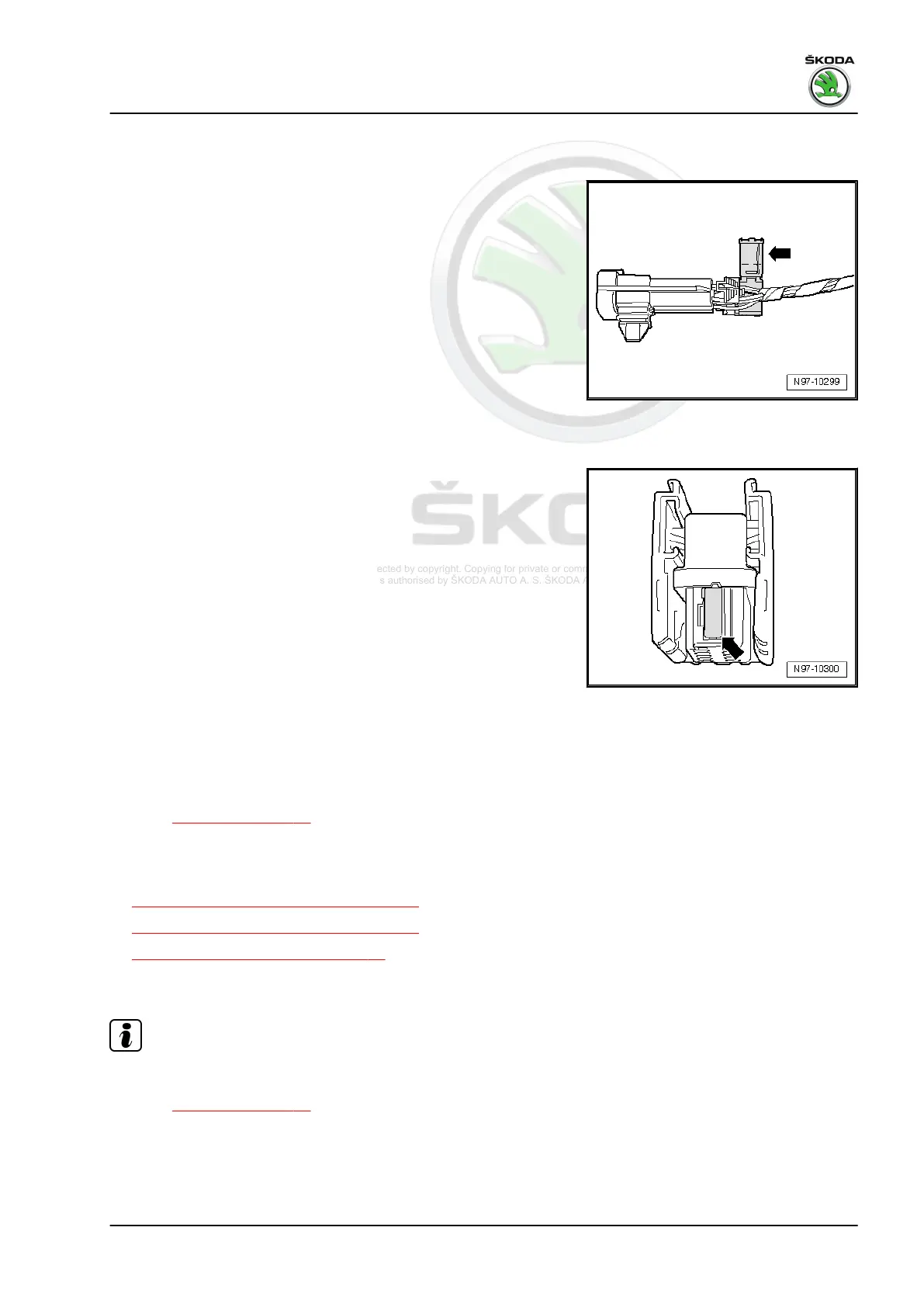

Example 2:
The housing lock is unlocked by opening a “flap” -arrow-.
Example 3:
The housing lock is unlocked by unlatching a “slide” -arrow-.
4.3 Primary lock
The primary lock is the lock for a single crimp contact in the
socket housing.
Any applicable housing locks (secondary locks) must be un‐
locked or removed with the correct tool before unlocking the
contacts ⇒ l4.2 ock”, page 88 .
The following types of primary lock shown here are only a
selection that is intended to clarify the different functions of
primary locks by way of example.
♦ ⇒ p4.3.1 lug connector systems”, page 89
♦ ⇒ p4.3.2 lug connector systems”, page 90
♦ ⇒ c4.3.3 onnector systems”, page 93
4.3.1 Round plug connector systems
Note
Any applicable housing locks (secondary locks) must be un‐
locked or removed with the correct tool before unlocking the
contacts ⇒ l4.2 ock”, page 88 .
– Guide the correct release tool for the socket housing into the
unlocking channel on the socket housing.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
4. Unlocking and disassembling socket housings 89
